Product Recognition | |
|---|
Certification Number | ZC12-21040214 |
|---|

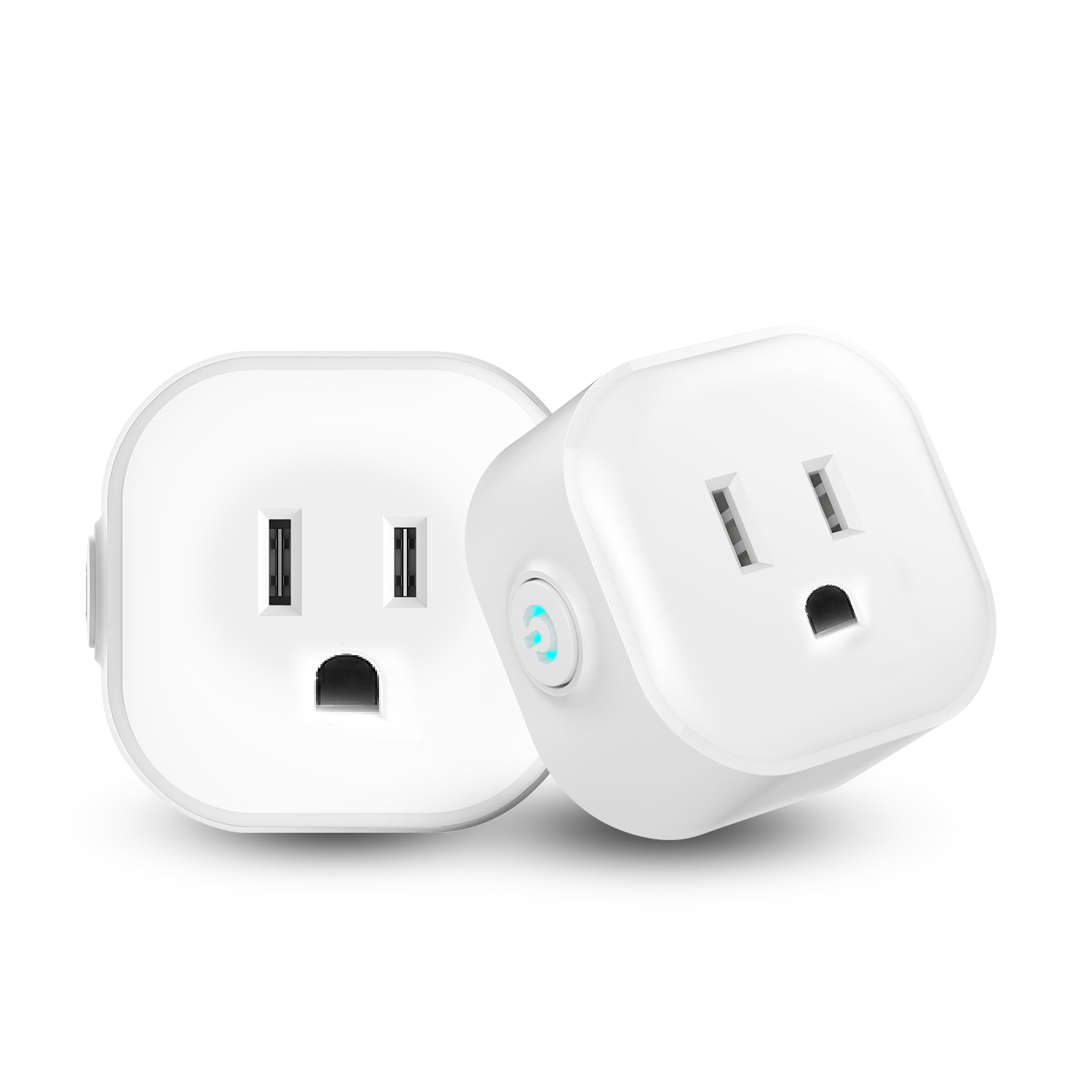

Name | S2 SmartPlug Dimmer |
|---|
Short Description | Transform any home into a smart home with the Z-Wave Smart Lighting Control and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. |
|---|
Long Description | Transform any home into a smart home with the Z-Wave Smart Lighting Control and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! |
|---|
Brand | Minoston |
|---|
Product Identifier | MP21ZS |
|---|
Product Line | Line A |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Multilevel Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xFF00 |
|---|
Product ID | 0xFF0D |
|---|
User Icon | 0x0604 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_ASSOCIATION_V3 | Association V3 | | 0 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Loads Controlled | | Switch Load Capacity Watts | | Switch Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
2 | 5 | 0 | BASIC SET | Send BASIC SET COMMAND | 1 | 1 | 0 | Lifeline | Z-Wave Lifeline | 3 | 5 | 0 | BASIC SET | Send BASIC SET COMMAND |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Auto Turn-On Timer | Auto Turn-On Timer | 2 | 4 | 0 | 65535 | 0 | From | To | Description |
|---|
0 | 65535 | Auto Turn-On this Timer |
| 8 | Restores state after power failure | Restores state after power failure Parameter=8，Size=1，Value=0 output off Value=1 output on Value=2 out put the state after power Default =2 | 2 | 1 | 0 | 2 | 2 | From | To | Description |
|---|
0 | 0 | Output OFF | 1 | 1 | Output ON | 2 | 2 | out put the state after power |
| 10 | Multilevel minimum value can be set | Multilevel minimum value can be set（Local Button）> this should apply to both for local or Z-Wave operation Parameter=10，Size=1，Value=0 disable Value=1 . . Value=99 Default = 1 | 2 | 1 | 0 | 99 | 1 | From | To | Description |
|---|
0 | 99 | Multilevel minimum value |
| 11 | Multilevel maximum value can be set | Multilevel maximum value can be set（Local Button）> this should apply to both for local or Z-Wave operation Parameter=11，Size=1，Value=0 disable Value=1 . . Value=100 - NOT ACCEPTED BY HUB Default = 99 | 2 | 1 | 0 | 100 | 99 | From | To | Description |
|---|
0 | 100 | Multilevel maximum value can be set |
| 23 | LED Indicator Color | LED Indicator Color Parameter=23，Size=1，Value=0 White Value=1 Blue Value=2 Green Value=3 Red Default = 1 | 2 | 1 | 0 | 3 | 1 | From | To | Description |
|---|
0 | 0 | White | 1 | 1 | Blue | 2 | 2 | Green | 3 | 3 | Red |
| 3 | Auto Turn-Off Timer | Auto Turn-Off Timer--- Values: 0 – 65535 (minutes) | 2 | 4 | 0 | 65535 | 0 | From | To | Description |
|---|
0 | 65535 | Auto Turn-Off Timer |
| 2 | LED Indicator | Parameter=2，Size=1，Value=0 On when Off and Off when On Value=1 On when On and Off when Off Value=2 Always Off Value=3 Always On Default =0 | 2 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
0 | 0 | On when Off and Off when On | 1 | 1 | On when On and Off when Off | 2 | 2 | Always OFF | 3 | 3 | Always ON |
| 9 | Ramp rate | Ramp rate（Local Button + Z-Wave）> change to local and Z-Wave like in the latest ZEN30 firmware, also applies to any multilevel changes (so there should be soft transition between 20 and 80% brightness if changed from the hub for example) Parameter=9，Size=1, Value=1 from 0x63 to 0x00 or from 0x00 to 0x63 need 1s Value=2 from 0x63 to 0x00 or from 0x00 to 0x63 need 2s . . Value=99 from 0x63 to 0x00 or from 0x00 to 0x63 need 99s Default = 1 | 2 | 1 | 1 | 99 | 1 | From | To | Description |
|---|
1 | 99 | from 0x63 to 0x00 or from 0x00 to 0x63 need this value |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The device is compatible with SmartStart
SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave™ QR Code found on the top of the outlet or the back of
the box with a controller providing SmartStart inclusion.No further action is required and the SmartStart product will be added automatically within
10 minutes of being switched on and in the network vicinity.
QR CODE
the QR code are sticked to the side of the case,DSK is included in the QR code.
DSK
The DSK code can be found on the DSK label which is attached on the packaging box. | 1 | Classic Inclusion | The device support two methods of inclusion,When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or SmartStart,
Network Wide Inclusion To A Z-Wave™ Network
1,Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
2,When prompted by your primary controller, click the button three times in one second. | 2 | Classic Exclusion | The device support two methods of inclusion,When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or SmartStart,
Network Wide Inclusion To A Z-Wave™ Network
1,Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
2,When prompted by your primary controller, click the button three times in one second. | 5 | Factory Reset Procedure | Press click Z-Wave button 3 times quickly, and hold for at least 10 seconds at the third time to restore the device to the factory
(Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
