Product Recognition
Certification Number	ZC10-17035491

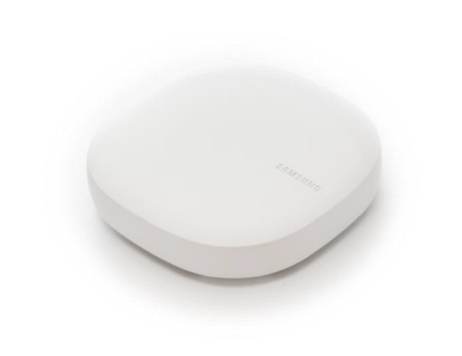

Name	SAMSUNG Connect Home
Short Description	A connected smart home hub used to control a variety of Z-Wave sensors for home automation.
Long Description	A connected smart home hub used to control a variety of Z-Wave sensors for home automation.
Brand	Samsung Electronics, Co., Ltd.
Product Identifier	ET-WV520
OEM Version	HW: 22 FW: 4.38:00.17
Hardware Platform	SD3503
Z-Wave Version	6.51.09
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0201
Product Type ID	0x0003
Product ID	0x0017
User Icon	0x0100
Installer Icon	0x0100
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_NO_OPERATION No Operation 0x00 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE_V2 Thermostat Operating State V2 0x42 2 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SENSOR_BINARY_V2 Sensor Binary V2 0x30 2 COMMAND_CLASS_THERMOSTAT_FAN_MODE_V3 Thermostat Fan Mode V3 0x44 3 COMMAND_CLASS_THERMOSTAT_FAN_STATE_V2 Thermostat Fan State V2 0x45 2 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_THERMOSTAT_SETPOINT_V2 Thermostat Setpoint V2 0x43 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SWITCH_COLOR_V2 Switch Color V2 0x33 2 COMMAND_CLASS_NOTIFICATION_V5 Notification V5 0x71 5 COMMAND_CLASS_CONFIGURATION_V2 Configuration V2 0x70 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ET-WV530_WV520_c.pdf
Features	Feature Values Z-Wave Scene Type Value Central Scene Color Value White Communications Connections Value Ethernet (Wired) Controller Supports Multiple Z-Wave Interfaces Communications Protocol Value Z-Wave Serial API Controller Supports Multiple Networks Firmware Updatable Value Updatable by Consumer by Wire Gateway Has Preferred Partners Sensors Value Air Temperature Luminance Humidity Supported Notification Types Value Smoke Alarm Water Alarm
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 4 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion In the app's, open the My Home Button, and then tapping “+ Add a Thing”. After tapping, the screen says ""Searching"" to indicate that inclusion mode is active. 24 Controller Exclusion In the app's ""My Home - Things"" tab, tap the name of the device to show the device details. Then, open the menu in the upper right and tap 'gear icon' and tapping the 'remove' button. Alternatively, The hub is put in network wide inclusion mode by tapping the more menu button, at the upper left of the Dashboard and then tapping ‘gear icon ’ in the side menu. After tapping the gear to the right upper of the Location name, scrolling down to the Hubs section and tapping [Your hub] > Z-Wave Utilities > General Device Exclusion > Remove 3 Learn Mode (adding another controller) Learn mode is activated from the app by going to the 'more menu' button, at the upper left of the Dashboard and then tapping ‘gear icon’ in the side menu. After tapping the gear to the right upper of the Location name, scrolling down to the Hubs section and tapping [Your hub] > Z-Wave Utilities > Join or Leave Existing Z-Wave Network 5 Factory Reset The only way to factory reset the Z-Wave module from the mobile app is to delete the hub’s location. From the side menu, tap the gear to the right of the Location name to access the settings. Make sure the hub is listed as “Active” when you delete the location. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
