Samsung Galaxy Home – Z-Wave Alliance Product Catalog

Back to Listing

Product Recognition

Certification Number

ZC10-18116291

Name

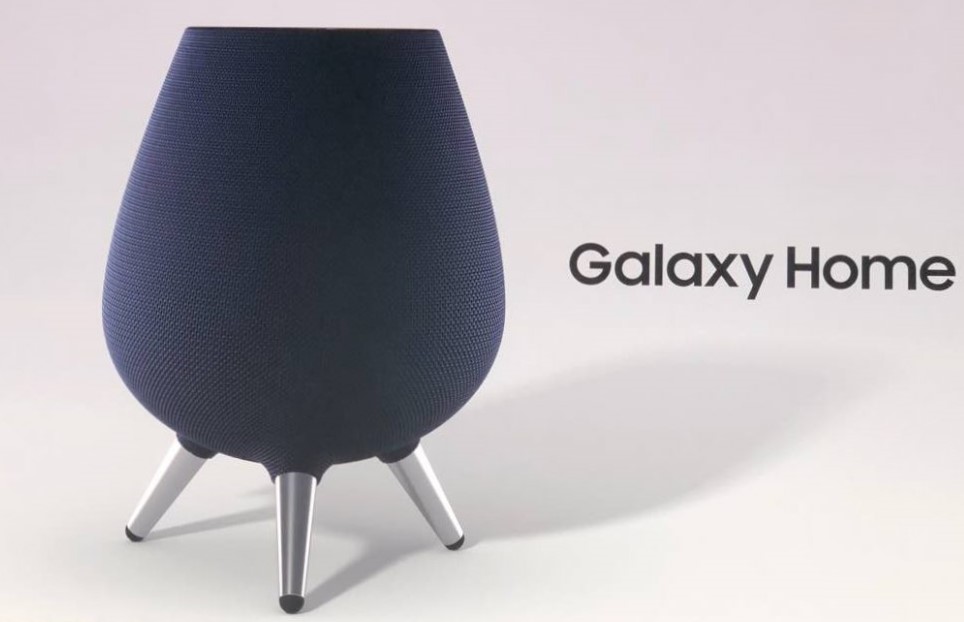

Samsung Galaxy Home

Short Description

A connected smart home hub used to control a variety of Z-Wave sensors for home automation.

Long Description

A connected smart home hub used to control a variety of Z-Wave sensors for home automation.

Brand

Samsung Electronics, Co., Ltd.

Product Identifier

SM-V510

OEM Version

HW: 39 FW: 5.03:00.24

Hardware Platform

SD3503

Z-Wave Version

6.71.03

Library Type

CONTROLLER_STATIC

Device Type

Central Controller

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x0201

Product Type ID

0x0008

Product ID

0x0027

User Icon

0x0100

Installer Icon

0x0100

Frequency Plans

KR: 920.90MHz, 921.70MHz, 923.10MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

Republic of Korea

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Texts

ID	Description	Value
23	Controller Inclusion	To Include/Add a Z-Wave device: 1 On the dashboard, tap Add device. 2 Tap under ADD DEVICE MANUALLY. 3 Select a category of the device to register. Alternatively, enter the device’s name in the search input field and tap ADD next to your device. 4 Follow the on-screen instructions to complete the registration. • The Samsung SmartThings Hub feature may not be available depending on the region. Visit www.samsung.com for details. • Refer to the other devices’ user manuals for instructions on how to pair with them. • To learn more about the Samsung SmartThings Hub feature, visit support.smartthings.com.
24	Controller Exclusion	To Exclude/Remove a Z-Wave device: 1 On the SmartThings screen, tap Devices. 2 Tap ALL DEVICES and scroll up or down to select a location. 3 Tap → Edit and use the following options. REMOVE a Device:Remove a Device. If you reset the Wi-Fi hub, you should exclude the Z-Wave device and reconnect (re-include) it. For instructions on how to put the Z-Wave device into Exclusion Mode, please refer to the device manufacturer's user manual.
3	Learn Mode (adding another controller)	Depending on the other controller, it may not have transferred the primary controller role to the SmartThings Hub, and the Hub may not be able to add new devices. To remove the Hub from the other network and reset it to default, follow the same steps above, but put the other controller in remove or exclude mode instead. Here are the steps to put the Hub into learn mode to receive network information from another Z-Wave controller: 1 Prepare the other Z-Wave controller to copy its network information to the Hub. This may be called include, add, transfer, copy, or replicate mode 2 In the SmartThings app, Tap the menu 3 Tap the Devices 4 Tap SmartThigns hub Card 5 Tap Include or Exclude Hub from an Existing Z-Wave Network This will start learn mode on the Hub. It may take longer to receive all the network info and load all the devices. Check the other controller for confirmation of whether the transfer was successful.
5	Factory Reset	If your speaker is frozen and unresponsive, press and hold the Power key and the Volume Down key simultaneously for more than 7 seconds to restart it. When the initialization has completed, the speaker reboots and displays a welcome message. Do not disconnect the power cable until it has rebooted. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable
6	Additional Special Features	This is an AI speaker, so you can control the product with voice commands. And this product provides high quality sound to consumer

Supports NWI

Yes

Supports Explorer Frames

Yes
