Product Recognition
Certification Number	ZC10-15090005

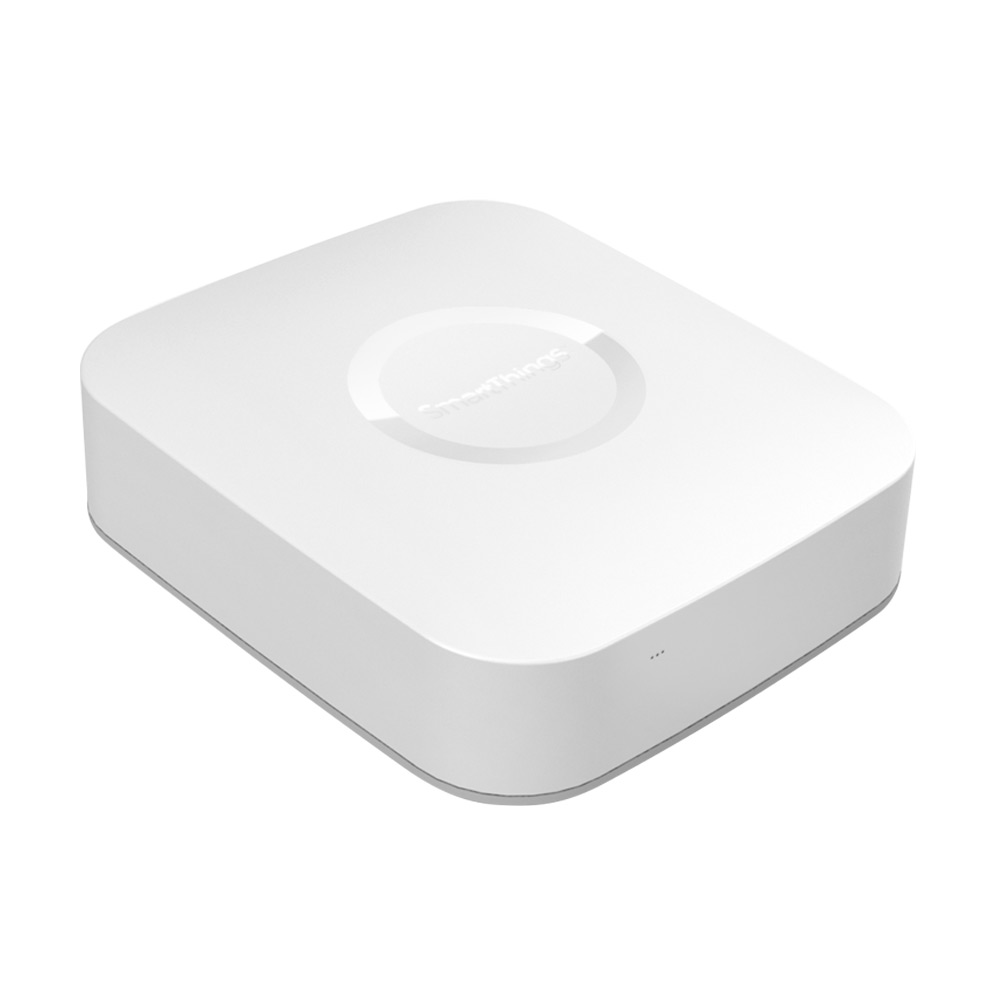

Name	Samsung SmartThings Hub
Short Description	The Samsung SmartThings Hub helps you create a smart home by communicating with all of your different connected products so that you can easily monitor and control them from the SmartThings app.
Long Description	Whether you have two smart devices or 200, all you need is one Hub to create a smart home. Like a live-in translator, the Hub communicates with all of your different connected products–regardless of their wireless protocol– so that you can easily monitor and control them from the SmartThings app. • Compatible with hundreds of smart home products • Contains ZigBee and Z-Wave radios, and is also compatible with IP-accessible devices • Enables live video recording and event-based video clip recording • Contains replacement backup batteries that allow it to continue operating in the event of a power outage • Local app processing enables faster operating time • No hard wiring or tricky installation needed • Simply attach the power supply to the back of the Hub and plug the Ethernet cable in to your Internet router. Easy peasy.
Brand	SmartThings
Product Identifier	STH-ETH200
OEM Version	6
Hardware Platform	ZM5304
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Central Controller
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x0150
Product Type ID	0x0002
Product ID	0x0006
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SWITCH_MULTILEVEL Switch Multilevel 0x26 1 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_MULTI_CHANNEL Multi-Channel V1 0x60 0 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_WAKE_UP Wake Up 0x84 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor Multilevel 0x31 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ZWAVEPLUS_INFO Z-Wave Plus Info 0x5E 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_NOTIFICATION Notification V1 0x71 0 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER Meter 0x32 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_VERSION Version 0x86 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ST_HUB_QSG_Grayscale.pdf
Features	Feature Gateway Has Preferred Partners
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 4 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion In the SmartThings mobile app, open the menu in the upper right corner and tap ""Connect New Device."" Then, tap ""Connect Now."" 24 Controller Exclusion In the SmartThings mobile app's ""Things"" tab, tap the name of the device to show the device details. Then, open the menu in the upper right and tap ""Remove."" Alternatively, open the menu in the upper right corner and tap ""My Locations."" Tap the gear icon at the top right of your Hub's location to access the location settings. Scroll down to the ""Hubs"" section and tap on your Hub's name, then tap ""Z-Wave Utilities."" Tap ""General Device Exclusion"" and then the ""Remove"" button to confirm. The hub will enter exclude mode. 5 Factory Reset In the SmartThings mobile app, open the menu in the upper right corner and tap ""My Locations."" Tap the gear icon at the top right of your Hub's location to access the location settings. Scroll down and check that your Hub is listed as ""Active"" in the Hubs section. Also check that the LED indicator on the front of the Hub is a solid green and not blinking. At the bottom of the location settings, tap the red ""Remove Location"" button and confirm the removal. This will delete your location, including all devices, settings, and SmartApps. Your Hub will be reset back to a factory default state and you will need the claim code that came with your Hub to re-connect it to SmartThings. 3 Learn Mode (adding another controller) In the SmartThings mobile app, open the menu in the upper right corner and tap ""My Locations."" Tap the gear icon at the top right of your hub's location to access the location settings. Scroll down to the ""Hubs"" section and tap on your Hub's name, then tap ""Z-Wave Utilities."" Tap ""Join or Leave Existing Z-Wave Network"" and confirm to activate Learn mode on the Hub.
Supports NWI	Yes
Supports Explorer Frames	Yes
