Product Recognition
Certification Number	ZC10-16085174

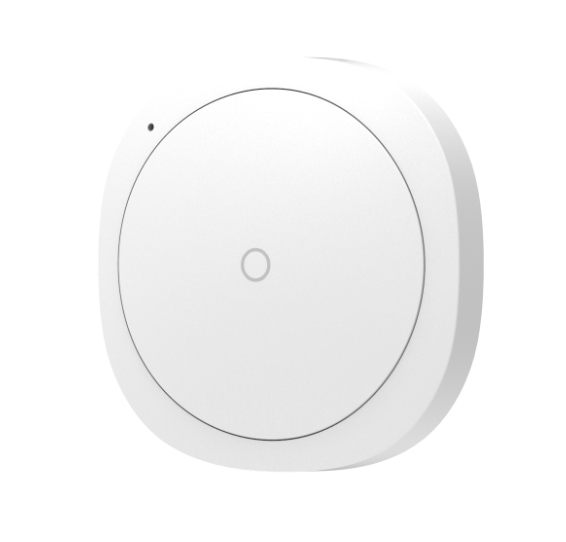

Name	Scene Controller
Short Description	The Scene Controller is a wireless, portable and rechargeable scene switch. It can control a Z-Wave device, such as smart plug, smart dimmer with a Z-Wave gateway.
Long Description	The Scene Controller is a wireless, portable and rechargeable scene switch. It can control a Z-Wave device, such as smart plug, smart dimmer with a Z-Wave gateway. You can also activate a scene like sleep scene, movie scene and entertainment scene with it.
Brand	Hank
Product Identifier	HKZW-SCN01
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x0208
Product Type ID	0x0201
Product ID	0x0009
User Icon	0x1600
Installer Icon	0x1600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Handheld Controller, Lighting Accessories
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_CENTRAL_SCENE_V2 Central Scene V2 0x5B 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual HKZW-SCN01_MANUL.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value LIR2450 Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Scene Controller will send Scene Controller sends the central scene notification command and battery report command to the associated nodes. 2 5 0 Scene Controller will send Basic Set command to the associated nodes. 3 5 0 Scene Controller will send switch multilevel set, the multilevel start level change and multilevel stop level change command to the associated nodes.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 254 Enable/disable the configuration command Lock/unlock all configuration parameters. 0 1 0 0 0 From To Description 0 0 Unlock all configuration parameters. 1 1 Lock all configuration parameters 255 Reset Scene Controller Reset Scene Controller and remove from the Z-Wave network 0 4 0 0 0 From To Description 1431655765 1431655765 Reset Scene Controller and remove from the Z-Wave network
Texts	ID Description Value 24 Controller Exclusion To remove the Scene Controller from the Z-Wave network: (1) Insert the LIR2450 battery. (2) Set the Z-Wave network main controller into remove mode (see Z-Wave controller operating manual). (3) Triple click the Z-button, if the exclusion is successful, LED will blink in orange for less than 5 seconds and then keep on for 3 seconds. 4 Device Wake-Up Pressing and holding Z-Button for 3 seconds. Led will turn to green, which means Scene Controller has been woken up. 23 Controller Inclusion Included as non-secure device: 1. Insert the LIR2450 battery. 2. Set the Z-Wave network main controller into learning mode( see Z-Waave network controller operating manul). 3. Triple click the Z-button. 4. If the inclusion is successful, the LED will blink in blue less than for 5 seconds and then keep on for 15 seconds. Included as a secure device: 1. Insert the LIR2450 battery. 2. Set the Z-Wave network main controller into learning mode( see Z-Wave network controller operating manual). 3. Pressing and holding the Z-button for 3 seconds. 4. If the inclusion is successful, the LED will blink in green less than for 5 seconds and then keep on for 15 seconds. 5 Factory Reset Pressing and holding the Z-button for 20 seconds. Release the button after 20 seconds, LED will keep in yellow for 3 seconds. Scene Controller will be reset to factory defaults if you short press the button within this 3 seconds. Using this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
