Product Recognition | |
|---|
Certification Number | ZC10-20106991 |
|---|

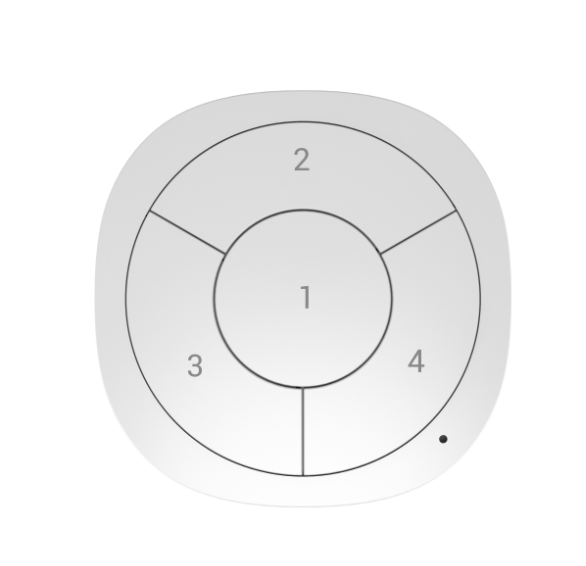

Name | Scene Controller |
|---|
Short Description | The Scene Controller is a wireless, portable and rechargeable scene switch. It can control a Z-Wave device, such as smart plug, smart dimmer with a Z-Wave gateway. |
|---|
Long Description | The Scene Controller is a wireless, portable and rechargeable scene switch. It can control a Z-Wave device, such as smart plug, smart dimmer with a Z-Wave gateway. You can also activate a scene like sleep scene, movie scene and entertainment scene with it. |
|---|
Brand | Ness |
|---|
Product Identifier | ZA-207001 |
|---|
Product Line | 5P |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Wall Controller |
|---|
Role Type | ROLE_TYPE_SLAVE_PORTABLE |
|---|
Manufacturer ID | 0x0208 |
|---|
Product Type ID | 0x0202 |
|---|
Product ID | 0x000B |
|---|
User Icon | 0x1600 |
|---|
Installer Icon | 0x1600 |
|---|
Frequency Plans | ANZ: 919.80MHz, 921.40MHz |
|---|
Categories | All Controllers, Handheld Controller |
|---|
Countries / Regions | Australia |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_CENTRAL_SCENE_V2 | Central Scene V2 | 0x5B | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V2 | Central Scene V2 | 0x5B | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Battery Quantity | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
2 | 5 | 0 | On/Off control,Button 1 | allows Scene Controller sends basic set command when the
button 1 is triggered | 3 | 5 | 0 | Dimming control,Button 1 | allows Scene Controller sends switch multilevel set, multilevel start level change and multilevel stop level change command when the button 1 is triggered. | 4 | 5 | 0 | On/Off control,Button 2 | allows Scene Controller sends basic set command when the
button 2 is triggered. | 5 | 5 | 0 | Dimming control,Button 2 | allows Scene Controller sends switch multilevel set, multilevel start level change and multilevel stop level change command when the button 2 is triggered. | 6 | 5 | 0 | On/Off control,Button 3 | allows Scene Controller sends basic set command when the
button 3 is triggered. | 7 | 5 | 0 | Dimming control,Button 3 | allows Scene Controller sends switch multilevel set, multilevel start level change and multilevel stop level change command when the button 3 is triggered. | 8 | 5 | 0 | On/Off control,Button 4 | allows Scene Controller sends basic set command when the
button 4 is triggered. | 9 | 5 | 0 | Dimming control,Button 4 | allows Scene Controller sends switch multilevel set, multilevel start level change and multilevel stop level change command when the button 4 is triggered. | 1 | 5 | 0 | Lifeline | (Lifeline group) allows Scene Controller sends central scene notification command and battery report command when any button is triggered. Details shown as the below diagram 1.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
254 | Enable/disable the configuration command | Lock/unlock all configuration parameters. | 0 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Unlock all configuration parameters. | 1 | 1 | Lock all configuration parameters |
| 255 | Reset Scene Controller | Reset Scene Controller and remove from the Z-Wave network | 0 | 4 | -1 | 1431655765 | 1 | From | To | Description |
|---|
1431655765 | 1431655765 | Reset Scene Controller and remove from the Z-Wave network |
|
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | Included as non-secure device:
1. Insert the LIR2450 battery.
2. Set the Z-Wave network main controller into learning mode (see Z-Wave network controller operating manual).
3. Triple click a button.
4. If the inclusion is successful, the LED will blink in blue less than for 5 seconds and then keep on for 15 seconds.
Included as a secure device:
1. Insert the LIR2450 battery.
2. Set the Z-Wave network main controller into learning mode (see Z-Wave network controller operating manual).
3. Pressing and holding a button for 3 seconds.
4. If the inclusion is successful, the LED will blink in green less than for 5 seconds and then keep on for 15 seconds. | 24 | Controller Exclusion | To remove the Scene Controller from the Z-Wave network:
(1) Insert the LIR2450 battery.
(2) Set the Z-Wave network main controller into remove mode
(see Z-Wave controller operating manual).
(3) Triple click the a button, if the exclusion is successful, LED
will blink in orange for less than 5 seconds and then keep on
for 3 seconds. | 2 | Classic Exclusion | To remove the Scene Controller from the Z-Wave network:
(1) Insert the LIR2450 battery.
(2) Set the Z-Wave network main controller into excluding mode
(see Z-Wave controller operating manual).
(3) Triple click the Z-button, if the exclusion is successful, LED will blink
in orange for less than 5 seconds and then keep on for 3 seconds. | 6 | Other Special Features | Scene Controller's LED indicator can signal its communication quality
with the Z-Wave main controller.
To start testing:
Press and hold the Z-button for 11 to 15 seconds, the LED will keep on
in purple for 3 seconds, it will enter testing mode if you short press the
Z-button during these 3 seconds.
Blink in green –Scene Controller establish a direct communication with
the main controller, and still under checking.
Keep green – The green light should last about 2 seconds, which means
the direct communication is stable.
Blink in orange –Scene Controller can communicate with the main
controller in intermediate radio transmit power level, and still under
checking.
Keep orange – The communication quality is moderate.
Keep Red – The communication is failed. | 1 | Classic Inclusion | Included as a non-secure device
(1) Insert the LIR2450 battery.
(2) Set the Z-Wave network main controller into learning mode
(see Z-Wave network controller operating manual).
(3) Triple click the Z-button.
(4) If the inclusion is successful, the LED will blink in blue less than
for 5 seconds and then keep on for 15 seconds.
Included as a secure device
(1) Insert the LIR2450 battery.
(2) Set the Z-Wave network main controller into learning mode
(see Z-Wave network controller operating manual).
(3) Pressing and holding the Z-button for 3 seconds.
(4) If the inclusion is successful, the LED will blink in green less than
for 5 seconds and then keep on for 15 seconds. | 4 | Wake-Up Procedure | Pressing and holding a button for 3 seconds. Led will turn to green,
which means Scene Controller has been woken up. | 5 | Factory Reset Procedure | Pressing and holding a button for 20 seconds. Release the button after 20 seconds, LED will keep in yellow for 3 seconds. Scene Controller will be reset to factory defaults if you short press the button within this 3 seconds.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | Alarm status: Alarm silenced |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
General purpose |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
