Product Recognition | |
|---|
Certification Number | ZC10-14090021 |
|---|

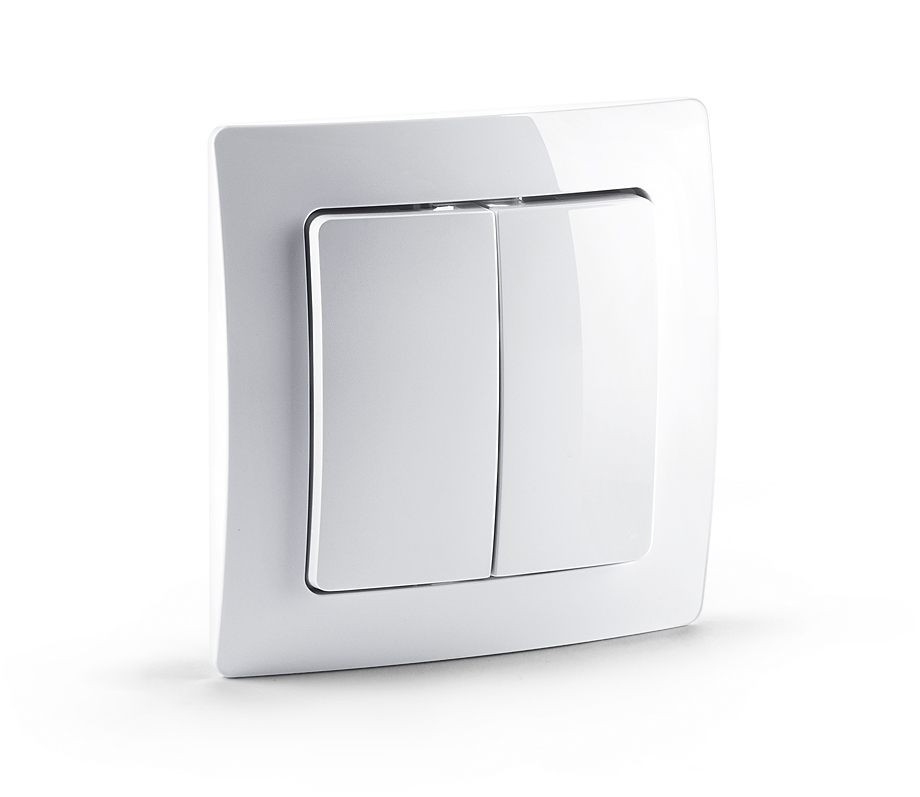

Name | Scene Switch |
|---|
Short Description | The MT2652 Scene Switch is a Z-Wave device that can both control other Z-Wave devices and activate scenes. |
|---|
Long Description | The MT2652 Scene Switch is a Z-Wave device that can both control other Z-Wave devices and activate scenes. Although it is controlling other devices, the Wall Controller cannot act as Z-Wave network controller (primary or secondary) and will always need a Z-Wave network controller to be included into a Z-Wave network. The device can be used in different modes that are selected by configuration parameters:
Control of groups of other Z-Wave devices using 'ON', 'OFF' and Dim commands.
Activation of predefined scenes in Gateways or other Z-Wave devices.
This device support secure communication when included by a controller that also supports secure communication. |
|---|
Brand | devolo |
|---|
Product Identifier | MT2652 |
|---|
OEM Version | 1 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Wall Controller |
|---|
Role Type | ROLE_TYPE_SLAVE_PORTABLE |
|---|
Manufacturer ID | 0x0175 |
|---|
Product Type ID | 0x0100 |
|---|
Product ID | 0x0101 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | European Union |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | COMMAND_CLASS_MULTI_COMMAND | Multi-Command V1 | 0x8F | 0 | COMMAND_CLASS_MULTI_CHANNEL | Multi-Channel V1 | 0x60 | 0 | COMMAND_CLASS_WAKE_UP | Wake Up | 0x84 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_CENTRAL_SCENE | Central Scene | 0x5B | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
5 | 10 | 0 | Control Group D, controlled by button 4 or double clicks of buttons 2 and 4 | 3 | 10 | 0 | Control Group B, controlled by button 2 or single clicks of buttons 2 and 4 | 4 | 10 | 0 | Control Group C, controlled by button 3 or double clicks of buttons 1 and 3 | 1 | 10 | 0 | Z-Wave Plus Lifeline | 2 | 10 | 0 | Control Group A, controlled by button 1 or single clicks of buttons 1 and 3 |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Description |
|---|
25 | Blocks wakeup even when wakeup interval is set | 0 | 1 | 0 | 0 | 1 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
0 | 0 | Wakeup is blocked | 1 | 1 | Wakeup is not blocked |
| | 11 | Command to Control Group A | 0 | 1 | 0 | 0 | 8 | From | To | Description |
|---|
8 | 8 | Central Scene to Gateway | 0 | 0 | Disabled | 1 | 1 | Switch On/Off and Dim (send Basic Set and Switch Multilevel) | 3 | 3 | Switch All | 4 | 4 | Send Scenes | 2 | 2 | Switch On/Off only (send Basic Set) | 5 | 5 | Send Preconfigured Scenes | 7 | 7 | Control DoorLock |
| This parameter defines the command to be sent to devices of control group A when the related button is pressed | 1 | Button 1 and 3 pair mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | In pair without double clicks | 2 | 2 | In pair with double clicks | 0 | 0 | seperately |
| In separate mode button 1 works with group A, button 3 with groups C. Click is On, Hold is dimming Up, Double click is Off, Click-Hold is dimming Down. In pair button 1/3 are Up/Down correspondingly. Click is On/Off, Hold is dimming Up/Down. Single clicks works with group A, double click with group C. | 2 | Button 2 and 4 pair mode | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
2 | 2 | In pair with double clicks | 1 | 1 | In pair without double clicks | 0 | 0 | seperately |
| In separate mode button 2 works with control group B, button 4 with control group D. Click is On, Hold is dimming Up, Double click is Off, Click-Hold is dimming Down. In pair button B/D are Up/Down correspondingly. Click is On/Off, Hold is dimming Up/Down. Single clicks works with group B, double click with group D. |
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | (1) Turn the device into Management Mode by keeping all four buttons pushed for 5 seconds, (2) click on Button 2. | 1 | Inclusion | Place your primary controller in inclusion mode by following the manufacturer's instructions, then activate inclusion on the wall controller by pressing any one of the four buttons for one second. Inclusion mode is indicated by the red/green blinking of the LEDs until the timeout occurs after 10 seconds. | 2 | Exclusion | Re-Inclusion and Exclusion are performed by pushing button 1 in management mode. Pushing all four buttons for 5 sec. turns the device into management mode (indicated by blinking green LED). | 5 | Factory Reset | Use this procedure only if the primary controller is missing or otherwise inoperable.
(1) Turn the device into Management Mode by keeping all four buttons pushed for 5 seconds, (2) click on Button 3, (3) keep button 4 pushed for 4 seconds. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
