Product Recognition | |
|---|---|
Certification Number | ZC12-21030205 |

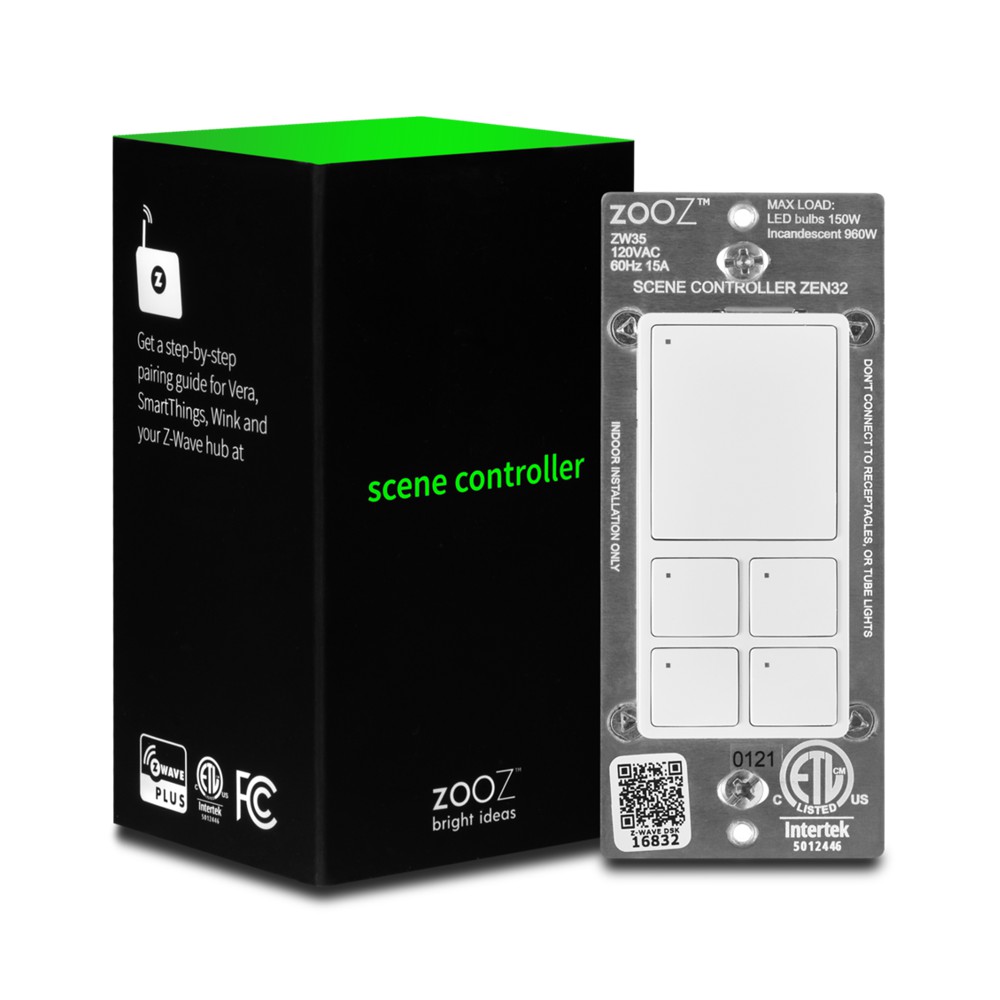

Name | Scenes Controller |
Short Description | Use this multitasking Z-Wave Switch to control other devices in your network with 4 remote control buttons. |
Long Description | FEATURES:
- Switch button: 15 A relay for Z-Wave on/off control
- 4 remote control buttons: trigger scenes and control other
devices in your Z-Wave network from this switch
- NEW 700 series Z-Wave chip for better range and faster control
- Direct 3-Way: works with regular on/off switches in a 3-way
- Scene control: trigger actions with multi-tap (select hubs only)
- Smart bulb mode: disable relay and control the light via Z-Wave
- Adjustable LED indicator in 4 colors and 3 brightness levels
- S2 Security and SmartStart for easier inclusion
SPECS:
- Model Number: ZEN32
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 120 VAC, 60 Hz
- Maximum Load: 150W LED, 960W Incandescent, 1800W (15A)
Resistive, 3A motor (DON’T use with receptacles)
- Range: Up to 500 feet line of sight
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only |
Brand | Zooz |
Product Identifier | ZEN32 |
Product Line | Line A |
OEM Version | HW: 1 FW: 1.00 |
Hardware Platform | ZGM130 |
Z-Wave Version | 7.13.6 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Binary Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x027A |
Product Type ID | 0xBB00 |
Product ID | 0xBB08 |
User Icon | 0x0700 |
Installer Icon | 0x0700 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Supports SmartStart | Yes |
Radio Range Z-Wave (m) | 40 |
