Product Recognition

Certification Number

ZC10-19076650

Name

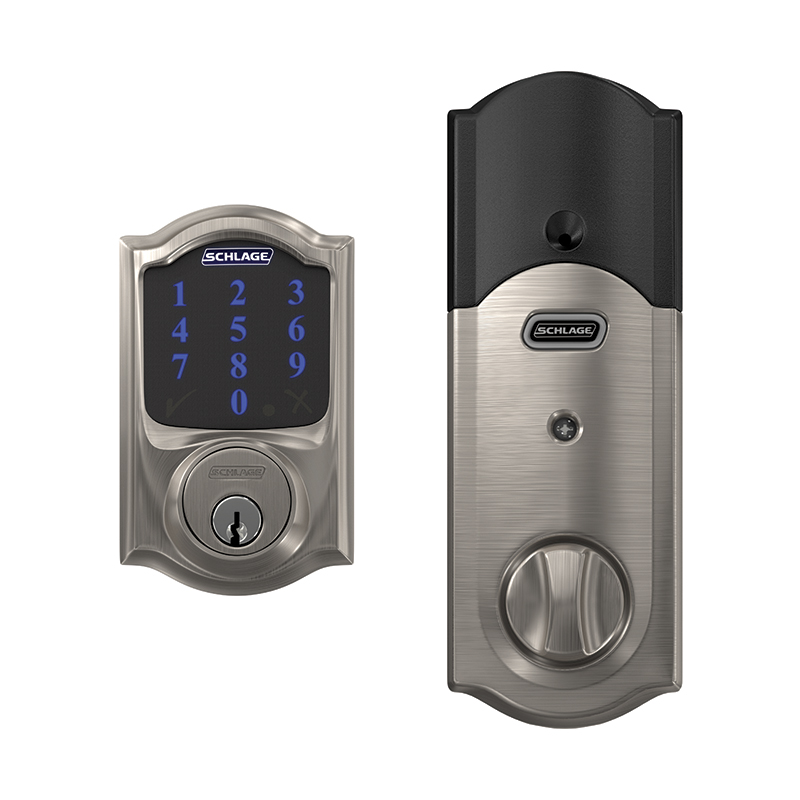

Schlage Connect Smart Deadbolt

Short Description

The Schlage Connect Smart Deadbolt combines advanced features and compatibility with home automation or security systems, so you can control your lock from anywhere using your smartphone.

Long Description

The Schlage Connect™ Smart Deadbolt combines advanced features and compatibility with your home automation or security system, allowing you to control your lock from anywhere and freeing you from the hassles of lost keys, getting locked out, or hiding a spare for friends and family. The lock comes preprogrammed with two access codes and can hold up to 30 unique codes for family members and trusted friends. The fingerprint-resistant touchscreen helps access codes stay private, minimizing tell-tale wear that can tip off possible intruders. The Schlage Connect Smart Deadbolt is battery-powered with a low battery warning that gives you weeks of advanced notice before it runs out. With guaranteed fit on standard doors, it’s easy for homeowners to install in minutes with just a screwdriver. The touchscreen continues to work in the event of a power outage, so you don’t have to worry about getting locked out – plus, a back-up key is included with the lock for peace of mind. The Schlage Connect Smart Deadbolt incorporates Z-Wave Plus S2 technology, an enhanced security protocol that features an additional layer of AES encryption of wireless signals. The Z-Wave technology allows you to integrate your exterior door locks with other Z-Wave smart home devices, such as cameras, motion detectors, lights and thermostats, bringing the safety, simplicity and style of Schlage to your smart home.

Brand

Schlage

Product Identifier

BE469ZP

OEM Version

HW: 3 FW: 3.03:10.13

Hardware Platform

ZM5101

Z-Wave Version

6.81.02

Library Type

SLAVE_ROUTING

Device Type

Door Lock - Keypad

Role Type

ROLE_TYPE_SLAVE_SLEEPING_LISTENING

Manufacturer ID

0x003B

Product Type ID

0x0001

Product ID

0x0469

User Icon

0x0300

Installer Icon

0x0300

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Locks

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_ACCESS_CONTROL

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Lock Specific Alarm Mode

This configuration setting indicates the Mode of the built-in alarm function of the lock.

From	To	Description
0	3	Lock Specific Alarm Mode

Lock Specific Alarm Alert Sensitivity

This configuration setting indicates the sensitivity setting of the Alert function of the built-in alarm.

From	To	Description
1	5	Alarm Alert Sensitivity

Beeper

This configuration setting controls the keypad beeper of the deadbolt allowing the keypad beeper to be turned ON or OFF

-1

From	To	Description
-1	-1	Enable Beeper
0	0	Disable Beeper

Lock Specific Alarm Tamper Sensitivity

This configuration setting indicates the sensitivity setting of the Tamper function of the built-in alarm.

From	To	Description
1	5	Alarm Tamper Sensitivity

Lock and Leave Mode

This configuration setting controls the use of the "Schlage" button on the keypad for single button push for throwing the deadbolt.

-1

From	To	Description
-1	-1	Enable Lock and Leave Mode
0	0	Disable Lock and Leave Mode

User Slot Bit Field

This configuration setting indicates the occupied slots (from 1 to 30) that contain User Codes that will activate the deadbolt when entered on the keypad.

From	To	Description
0	-1	User Slot Bit Field

Lock Specific Alarm Kick Sensitivity

This configuration setting indicates the sensitivity setting of the Forced Entry function of the built-in alarm.

From	To	Description
1	5	Alarm Forced Entry Sensitivity

Lock Specific Alarm Disable Local Controls

This configuration setting controls the ability to ENABLE or DISABLE local control of the built-in alarm function.

-1

From	To	Description
-1	-1	Alarm Enable Local Controls
0	0	Alarm Disable Local Controls

Get Electrical High Preload Transition Count

This configuration setting indicates the number of transitions from locked to unlocked or unlocked to locked state via electronic activation that indicated a high preload on the deadbolt. This value is a subset of Parameter 12.

From	To	Description
0	-1	Electronic State Change Count with High Preload

Vacation Mode

This configuration setting controls the keypad entry of User Codes allowing all User Codes to be turned ON (disable Vacation Mode) or OFF (enable Vacation Mode)

From	To	Description
0	0	Disable Vacation Mode
-1	-1	Enable Vacation Mode

Texts

ID	Description	Value
1	Inclusion	One-button Add lock to Z-Wave Network (Inclusion) 1. Place your home automation system or panel into the “Add” or Inclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details). 2. Remove the battery cover of the deadbolt. 3. Press then release the button on the PCB. 4. An LED will flash amber indicating the “Add” or Inclusion process is in progress. • If the Security Scheme is Security 2 (S2), verify the DSK of the lock at the Z-Wave Controller. The PIN Code portion of the Z-Wave DSK will be needed. 5. When a green LED turns ON, the “Add” or Inclusion has completed successfully. 6. If a red LED turns ON, try repeating steps 1-3 Interactive Instruction for Add https://instructions.allegion.com/instr/86/2543
2	Exclusion	One-button Remove lock from Z-Wave Network (Exclusion) 1. Place your home automation system or panel into the “Remove” or Exclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details). 2. Remove the battery cover of the deadbolt. 3. Press then release the button on the PCB. 4. An LED will flash amber indicating the “Remove” or Exclusion process is in progress. 5. When a green LED flashes 3 times, the “Remove” or Exclusion process is completed successfully. 6. If a red LED turns ON, try repeating steps 1-3 Interactive Instruction for Remove https://instructions.allegion.com/instr/86/2581
5	Factory Reset	Steps for One-button Factory Default Reset 1. Remove the battery cover of the deadbolt 2. Press and hold the button on the PCB for 7 (seven) seconds. While holding the button pressed, after 1 sec LED will be lit for 2 sec. and turn OFF; continue to press and hold the button until the LED will be lit again and release the button. 3. The LED will blink red three times and the green check on the touchscreen will blink if the Factory Default Reset is successful. 4. To check that the lock was reset, press the Schlage Button and enter one of the Default User Codes. If the reset was successful, the Default User Codes will unlock the deadbolt. NOTE: Please use this procedure only when the network primary controller is missing or otherwise inoperable.

Supported Notification Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Is Flirs

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
