Product Recognition | |
|---|
Certification Number | ZC10-21057039 |
|---|

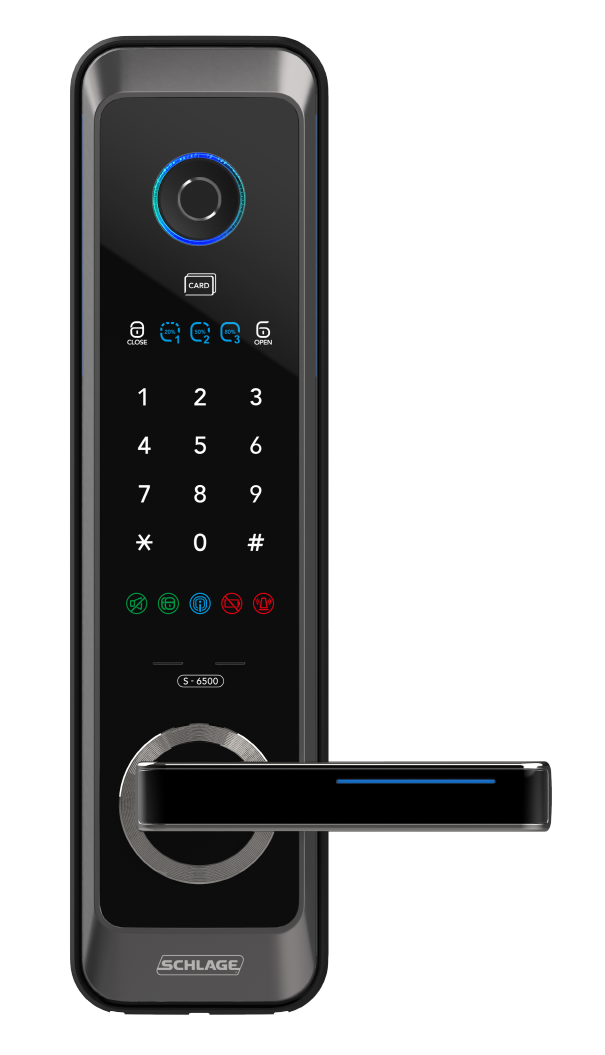

Name | Schlage Z-Wave Mortise Lock |
|---|
Short Description | Schlage Z-Wave Mortise Locks are electronic Mortise locks with Z-Wave Plus Communication. |
|---|
Long Description | Schlage Z-Wave Mortise Locks are electronic Mortise locks with Z-Wave Plus Communication.
S-6500F lock must be used in conjunction with a Security Enabled Z-Wave Controller to fully utilize all implemented functions.
S-6500F lock supports the original Z-Wave Security Standard S0 and the new Security Standard S2 with SmartStart enabled and can be part of any Z-Wave network with other Certified Z-Wave or Z-Wave Plus products. |
|---|
Brand | Schlage |
|---|
Product Identifier | S-6500F |
|---|
Product Line | Schlage Mortise Lock |
|---|
OEM Version | HW: 1 FW: 1.05:02.02 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x003B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x6500 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | Thailand |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_TIME | Time | 0x8A | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Communications Protocol | Value |
|---|
Manufacturer Proprietary Protocol |
| Door Lock Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 2 | 0 | Lifeline | 0x0001 | (Lifeline) The association command class is used to create association groups which allow the lock to push unsolicited notifications |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Beeper | Read and Write 0: Disable Beeper -1: Enable Beeper | 1 | 1 | -1 | 0 | -1 | From | To | Description |
|---|
-1 | -1 | Enable Beeper | 0 | 0 | Disable Beeper |
| 5 | Auto Lock | Read-only 0: Disable Auto Lock -1: Enable Auto Lock | 1 | 1 | -1 | 0 | 0 | From | To | Description |
|---|
-1 | -1 | Enable Auto Lock | 0 | 0 | Disable Auto Lock |
| 6 | User Slot Bit Field | Read-only User Slot 8-1 (MSB-LSB) 8,7,6,5,4,3,2,1 User Slot 10-9 (MSB-LSB) N/A,N/A,N/A,N/A,N/A,N/A,10,9 | 1 | 2 | 0 | 1023 | 3 | From | To | Description |
|---|
0 | 1023 | Each bit represent user slot |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | 5.1 Identification of the QR code/DSK on the Product | 1 | Classic Inclusion | Add to Network
1. Place your Z-Wave Controller into the “Add” or Inclusion Mode (Refer the respective documentation for that specific home automation system or panel device for details).
2. Slide the battery cover upward.
3. Press the wireless button more than 3 seconds.
4. Press “1” on the keypad.
5. Press “6” on the keypad.
6. Press User Code on the keypad.
7. Press “#” on the keypad.
8. If RF LED flickers, inclusion has completed successfully.
9. If battery replace LED flickers(fail), try repeating steps 1-7. | 2 | Classic Exclusion | 1. Place your Z-Wave Controller into the “Remove” or Exclusion Mode (Refer the respective documentation for that specific home automation system or panel device for details).
2. Slide the battery cover upward.
3. Press the wireless button more than 3 seconds.
4. Press “2” on the keypad.
5. Press “6” on the keypad.
6. Press User Code on the keypad.
7. Press “#” on the keypad.
8. If RF LED flickers, exclusion has completed successfully.
9. If battery replace LED flickers, try repeating steps 1-7. | 4 | Wake-Up Procedure | Not Applicable. This Lock is an FLiRS device. | 5 | Factory Reset Procedure | 4.3 Factory Reset of the Lock
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When Master code was already registered
1. Remove batteries (power off).
2. Press “N” and “S” buttons at the same time and hold.
3. Insert batteries (power on).
4. Release “N” and “S” buttons.
5. Press 3-digit Master code.
6. Press “#” on the keypad.
7. Press “8” on the keypad.
When Master code was not registered yet
1. Remove batteries (power off).
2. Press “N” button and “S” button at the same time and hold.
3. Insert batteries (power on).
4. Release “N” and “S” buttons.
5. Press 3-digit Master code to register.
6. Press “#” on the keypad.
7. Press previous 3-digit Master code.
8. Press “#” on the keypad. | 6 | Other Special Features | N/A |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
