Product Recognition | |
|---|
Certification Number | ZC10-22017069 |
|---|

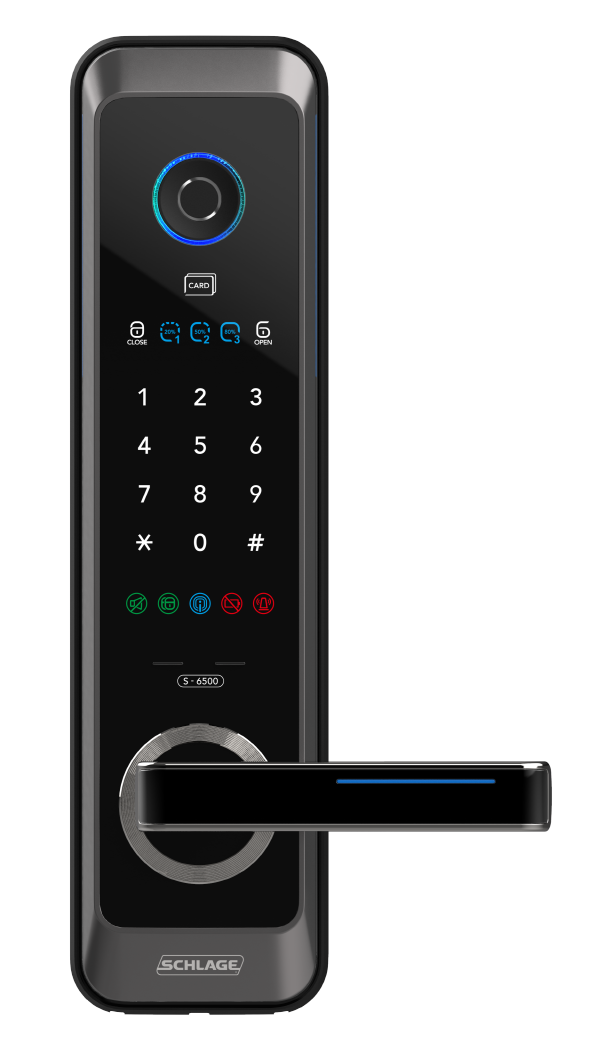

Name | Schlage Z-Wave Mortise Lock |
|---|
Short Description | Schlage Z-Wave™ Mortise Lock is a battery-powered electronic lock with Z-Wave Plus™ Communication capability supporting SmartStart. |
|---|
Long Description | Schlage Z-Wave Mortise Locks are electronic Mortise locks with Z-Wave Plus™ Communication.
S-6500F lock must be used in conjunction with a Security Enabled Z-Wave™ Controller to fully utilize all implemented functions.
S-6500F lock supports the original Z-Wave Security Standard S0 and the new Security Standard S2 with SmartStart enabled and can be part of any Z-Wave network with other Certified Z-Wave or Z-Wave Plus products. |
|---|
Brand | Schlage |
|---|
Product Identifier | S-6500F |
|---|
Product Line | Schlage Z-Wave Mortise Lock |
|---|
OEM Version | HW: 1 FW: 1.05:02.02 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x003B |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x6500 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | IN: 865.20MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | India |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_TIME | Time | 0x8A | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_INDICATOR | Indicator | 0x87 | 1 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SECURITY | Security 0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_TIME | Time | 0x8A | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Door Lock Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 2 | 0 | Lifeline | 0x0001 | (Lifeline) The association command class is used to create association groups which allow the lock to push unsolicited notifications |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Auto Lock | 1 | 1 | -1 | 0 | 0 | From | To | Description |
|---|
-1 | -1 | Enable Auto Lock | 0 | 0 | Disable Auto Lock |
| 6 | User Slot Bit Field | 1 | 2 | 0 | 1023 | 3 | From | To | Description |
|---|
0 | 1023 | Each bit represent user slot |
| 3 | Beeper | 1 | 1 | -1 | 0 | -1 | From | To | Description |
|---|
0 | 0 | Disable Beeper | -1 | -1 | Enable Beeper |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | 5.1 Identification of the QR code/DSK on the Product | 1 | Classic Inclusion | 1. Place your Z-Wave Controller into the “Add” or Inclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details).
2. Slide the battery cover upward.
3. Press the wireless button for more than 3 seconds.
4. Press “1” on the keypad.
5. Press “6” on the keypad.
6. Press User Code on the keypad.
7. Press “#” on the keypad.
8. If RF LED flickers, inclusion has been completed successfully.
9. If the battery replaces LED flickers(fail), try repeating steps 1-7. | 2 | Classic Exclusion | 1. Place your Z-Wave Controller into the “Remove” or Exclusion Mode (Refer to the respective documentation for that specific home automation system or panel device for details).
2. Slide the battery cover upward.
3. Press the wireless button for more than 3 seconds.
4. Press “2” on the keypad.
5. Press “6” on the keypad.
6. Press User Code on the keypad.
7. Press “#” on the keypad.
8. If RF LED flickers, exclusion has been completed successfully.
9. If battery replace LED flickers, try repeating steps 1-7. | 4 | Wake-Up Procedure | This Lock is a FLiRS device. | 5 | Factory Reset Procedure | Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When Master code was already registered
1. Remove batteries (power off).
2. Press “N” and “S” buttons at the same time and hold.
3. Insert batteries (power on).
4. Release “N” and “S” buttons.
5. Press 3-digit Master code.
6. Press “#” on the keypad.
7. Press “8” on the keypad.
When Master code was not registered yet
1. Remove batteries (power off).
2. Press “N” button and “S” button at the same time and hold.
3. Insert batteries (power on).
4. Release “N” and “S” buttons.
5. Press 3-digit Master code to register.
6. Press “#” on the keypad.
7. Press previous 3-digit Master code.
8. Press “#” on the keypad. | 6 | Other Special Features | N/A |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | Manual lock operation | Access Control | Manual unlock operation | Access Control | RF lock operation | Access Control | RF unlock operation | Access Control | Keypad lock operation | Access Control | Keypad unlock operation | Access Control | Auto lock locked operation | Access Control | Lock state: Lock jammed | Access Control | Keypad state: Keypad temporary disabled | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now | System | HW status: System hardware failure |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
