Product Recognition | |
|---|
Certification Number | ZC10-17075684 |
|---|

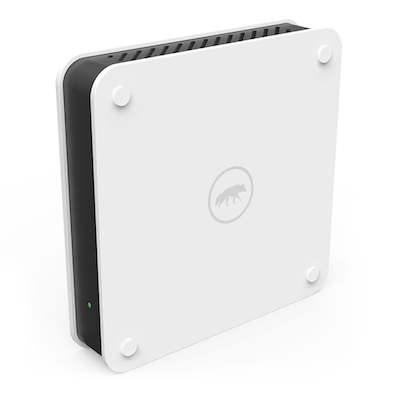

Name | Scout Hub 1S |
|---|
Short Description | The Scout Hub is the brains of a new breed of home security from Scout Alarm. |
|---|
Long Description | Meet Scout.
A new breed of home security.
Ridiculously easy setup.
HASSLE-FREE
No holes in your walls. No tools necessary. No need to miss work to let strangers into your home. Get the entire Scout system up and running yourself in minutes.
Be aware. Anywhere.
MOBILE ACCESS
Control your entire Scout system from any mobile device. Get live updates when anything is out of the ordinary. Monitor any room, from anywhere.
Designed for you.
ONE SIZE DOESN'T FIT ALL
Scout meets your home security needs in style. Rent a small studio? Your ideal Scout system secures your whole home with only a few sensors. With Scout, only buy what you need to feel safe.
Protected and connected.
NETWORK OF DEVICES
Scout is a system of sensors that communicate with each other to provide complete protection, customized for your home. |
|---|
Brand | Scout Alarm |
|---|
Product Identifier | SCHUB02 |
|---|
OEM Version | HW: 1 FW: 2.05:01.21 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | CONTROLLER_STATIC |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x029A |
|---|
Product Type ID | 0x4882 |
|---|
Product ID | 0x3032 |
|---|
User Icon | 0x0100 |
|---|
Installer Icon | 0x0100 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Controllers, Gateway Controller, Security Systems |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | COMMAND_CLASS_USER_CODE | User Code | 0x63 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Connections | | Firmware Updatable | Value |
|---|
Updatable by Consumer by Wire |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Texts | ID | Description | Value |
|---|
23 | Controller Inclusion | To include a Z-Wave device, remove the battery pull tab and follow along in the Scout app while the device pairs to the Scout hub and confirms inclusion of the device on-screen. | 24 | Controller Exclusion | To exclude a device, first navigate to that device in the Scout application on the device tab and click into the device. Then, click the trash can icon to exclude the device from your Scout system. The system will confirm exclusion when the device has been removed from your list of devices on the devices tab. Z-Wave devices can then be returned to their
factory default settings by following the instructions provided by the manufacturer, if the manufacturer is not Scout. | 5 | Factory Reset | The Scout hub can be reset to factory defaults by contacting customer support or following instructions for factory reset at scoutalarm.com/knowledge-base. If this controller is the
primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use
this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
Toll-Free Within the United States: 1-844-AT-SCOUT (287-2688)
Outside the United States: use the number above, carrier charges apply - please contact your telecom service provider for details
The hours our customer support is available may be found at: support.scoutalarm.com | 3 | Learn Mode (adding another controller) | To have the Scout hub learn into an existing network, navigate to the hub icon under device tab, scroll down to the Z-Wave section and tap on the Learn button. To factory reset the Z- Wave network on the Scout hub, navigate to the hub icon under the device tab, scroll down to the Z-Wave section and tap on the Leave button. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
