Product Recognition
Certification Number	ZC10-15020013

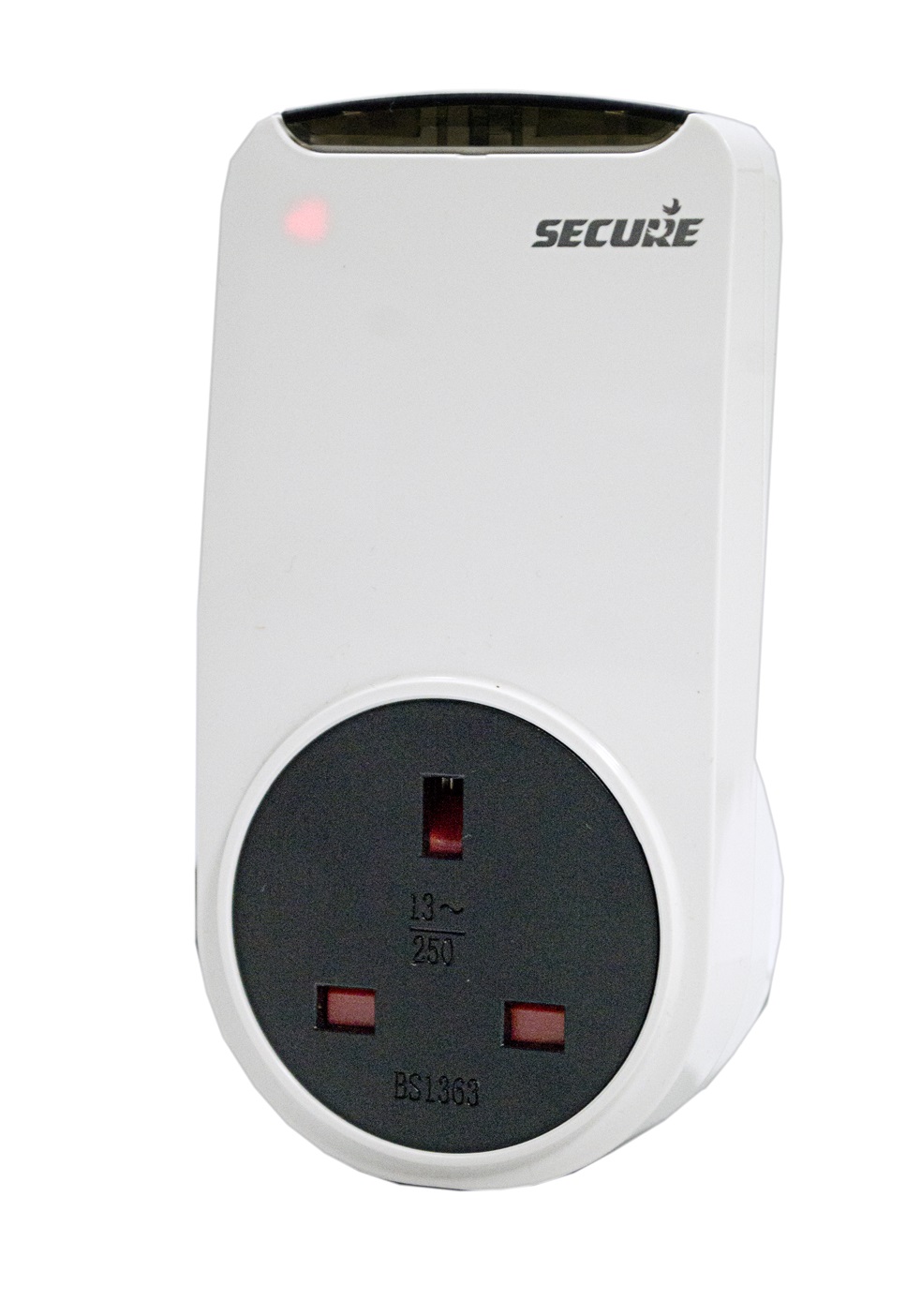

Name	Secure Smart Plug 302
Short Description	SSP 302 UK variant is a mains-powered, plug-in device that supports energy monitoring. It is suitable for switching loads up to 3KW at 230V AC. It can measure voltage, current, power, energy etc.
Long Description	SSP 302 UK variant is a mains-powered, plug-in device that supports energy monitoring. It is suitable for switching loads up to 3KW at 230V AC. It can measure voltage, current, power, energy etc. The SSP 302 acts as a repeater in a Z-Wave network by helping messages from other devices reach there destinations, without losing a plug socket.
Brand	Secure Controls
Product Identifier	SSP 302 UK
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.02
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0059
Product Type ID	0x0011
Product ID	0x0001
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_TIME Time 0x8A 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual SSP 302 User Manual for Web.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 4 0 Power, In this group Active Power data will be reported base on the delta or time interval configuration. 1 4 0 Z-Wave Plus Lifeline. In this group Energy (Active Energy, Apparent Energy) , Switch Status data will be reported base on the delta or time interval configuration. 3 4 0 Electrical Parameter, In this group Voltage, Current and Power Factor data will be reported base on the delta or time interval configuration. 4 4 0 Relay Status, In this group Switch Status data will be reported base on the delta or time interval configuration. 5 1 0 Time, In this device will sync the time and date from the time master in the network.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 8 Switch Status time interval based This configuration Parameter will be used to set the time interval base reporting of switch status in 1 second resolution. 0 2 0 0 0 From To 0 65520 9 Voltage time interval based This configuration Parameter will be used to set the time interval base reporting of voltage in 1 second resolution. 0 2 0 0 0 From To 0 65520 11 Power Factor time interval based This configuration Parameter will be used to set the time interval base reporting of Power Factor in 1 second resolution. 0 2 0 0 0 From To 0 65520 3 Current delta based configuration This configuration Parameter will be used to enable/disable the delta base curenrt reporting. Resolution of this parameter is 10 mA. if user wants to set 1A delta then it should be 1/0.01 = 100. 0 1 0 0 0 From To 0 1500 4 Power Factor delta based configuration This configuration Parameter will be used to enable/disable the delta base Power Factor reporting in 0.1% resolution. if user wants to set Power Factor 10% = 10/0.1 = 100 0 2 0 0 0 From To 0 1000 0 0 1 Switch Status delta based configuration This configuration Parameter will be used to enable/disable the delta base switch status reporting. 0 1 0 0 1 From To 0 1 2 Voltage delta based configuration This configuration Parameter will be used to enable/disable the delta base voltage reporting. Resolution of this parameter is 100 mV. if user wants to set 10V delta then it should be 10/0.1 = 100. 0 2 0 0 0 From To 0 600 7 Apparent Energy delta based configuration This configuration Parameter will be used to enable/disable the delta base Apparent Energy reporting in 1 VAh resolution. 0 2 0 0 0 From To 0 32000 10 Current time interval based This configuration Parameter will be used to set the time interval base reporting of current in 1 second resolution. 0 2 0 0 0 From To 0 65520 6 Active Energy delta based configuration This configuration Parameter will be used to enable/disable the delta base Active Energy reporting in 1 Wh resolution. 0 2 0 0 0 From To 0 32000 5 Active Power delta based configuration This configuration Parameter will be used to enable/disable the delta base Active Power reporting in 1 W resolution. 0 2 0 0 0 From To 0 4000
Texts	ID Description Value 3 Learn Mode (adding another controller) NA 4 Device Wake-Up NA 6 Additional Special Features NA 5 Factory Reset Please use this procedure only when the primary controller is missing or otherwise inoperable. Power cycle the device and press and hold the button for more than 11 seconds and less than 15 seconds within the 60 seconds of power cycle to put the device in factory default, that include setting all the configuration, Association to factory default and removing the device from Z-Wave network. 2 Exclusion To exclude the SSP 302 from a network, put the controller into exclusion mode. Now, press and hold the button on SSP 302 for 4 to 7 seconds then release. The network status LED will start flashing (twice per second) on successful start of exclusion process. After successful exclusion the network status LED will start flashing once per second, and the device will reset to factory default. 1 Inclusion To include the SSP 302 onto a network, put the controller into inclusion mode. Now, press and hold the button on SSP 302 for 4 to 7 seconds then release. The network status LED will start flashing (twice per second) on successful start of inclusion process. On successful inclusion the LED will turn off.
Supports NWI	Yes
Supports Explorer Frames	Yes
