Product Recognition | |
|---|
Certification Number | ZC10-20076951 |
|---|

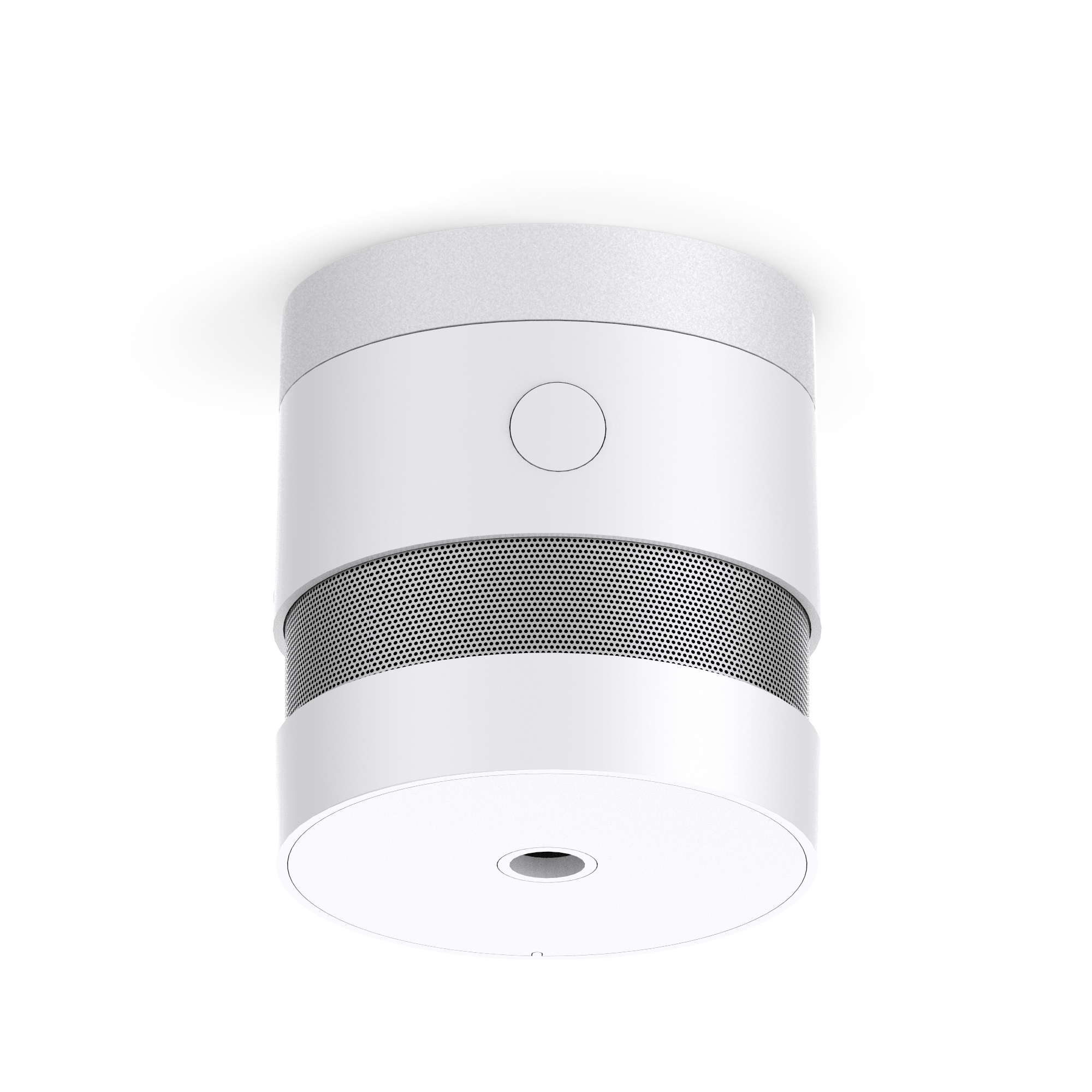

Name | Sensor de humo iO |
|---|
Short Description | Photoelectric smoke alarm is generally more effective at detecting slow, smoldering fires that smolder for hours before bursting into flame. |
|---|
Long Description | Photoelectric smoke alarm is generally more effective at detecting slow, smoldering fires that smolder for hours before bursting into flame. Install a smoke alarm in every room and on every level of the house. Once detected smoke concentration reaches the threshold value, its red LED indicator will flashes quickly and it will give out loud alarm sound, and an alarm message will also be sent to user APP to alert the user to take action ASAP. |
|---|
Brand | Simon |
|---|
Product Identifier | 10002862-039 |
|---|
Product Line | Sensor de humo iO |
|---|
OEM Version | HW: 255 FW: 3.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x0011 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x0C01 |
|---|
Installer Icon | 0x0C01 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors, Security Systems |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Connections | | Color | | Battery Quantity | | Battery Type | | Communications Protocol | Value |
|---|
Manufacturer's Open/Documented Protocol |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 5 | 0 | Lifeline association group | 0x0001 | Lifeline association group includes command classes: Battery report, Notification report, and Device Reset Locally notification, | 2 | 5 | 0 | Root Device group(Basic set) | 0x7101 | The Sensor sends a Basic Set command to directly trigger devices (like a light, switch, etc.) in response to events. The value of the Basic Set command (e.g. Siren trigger) is configured using smoke or no smoke |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | Device Remove for Exclusion
- Click [Remove] icon in Z-Wave Controller
- Press the Net_Button for between 2 and 30 seconds, Green LED is Blinking one time every 300 milliseconds. | 5 | Factory Reset Procedure | -Long press Net_Button for more than 30 secounds in the product.
- Device Reset Locally notification is Transmitted.Green led is turn on for 2.5 seconds，then turn off.
. Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 1 | Classic Inclusion | Device ADD for Inclusion
- Click [Add] icon in Z-Wave Controller .
- Press the Net_Button for between 2 and 30 seconds, Green LED is Blinking one time every 300 milliseconds.
- If Inclusion Process is successful, Green led will turn off. | 4 | Wake-Up Procedure | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted when power is turn on.
- Press Net_Button for 2 seconds between 30 seconds |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Smoke Alarm | Sensor status: Smoke detected |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
