| Product Recognition | |
|---|
| Certification Number | ZC10-15090015 |
|---|

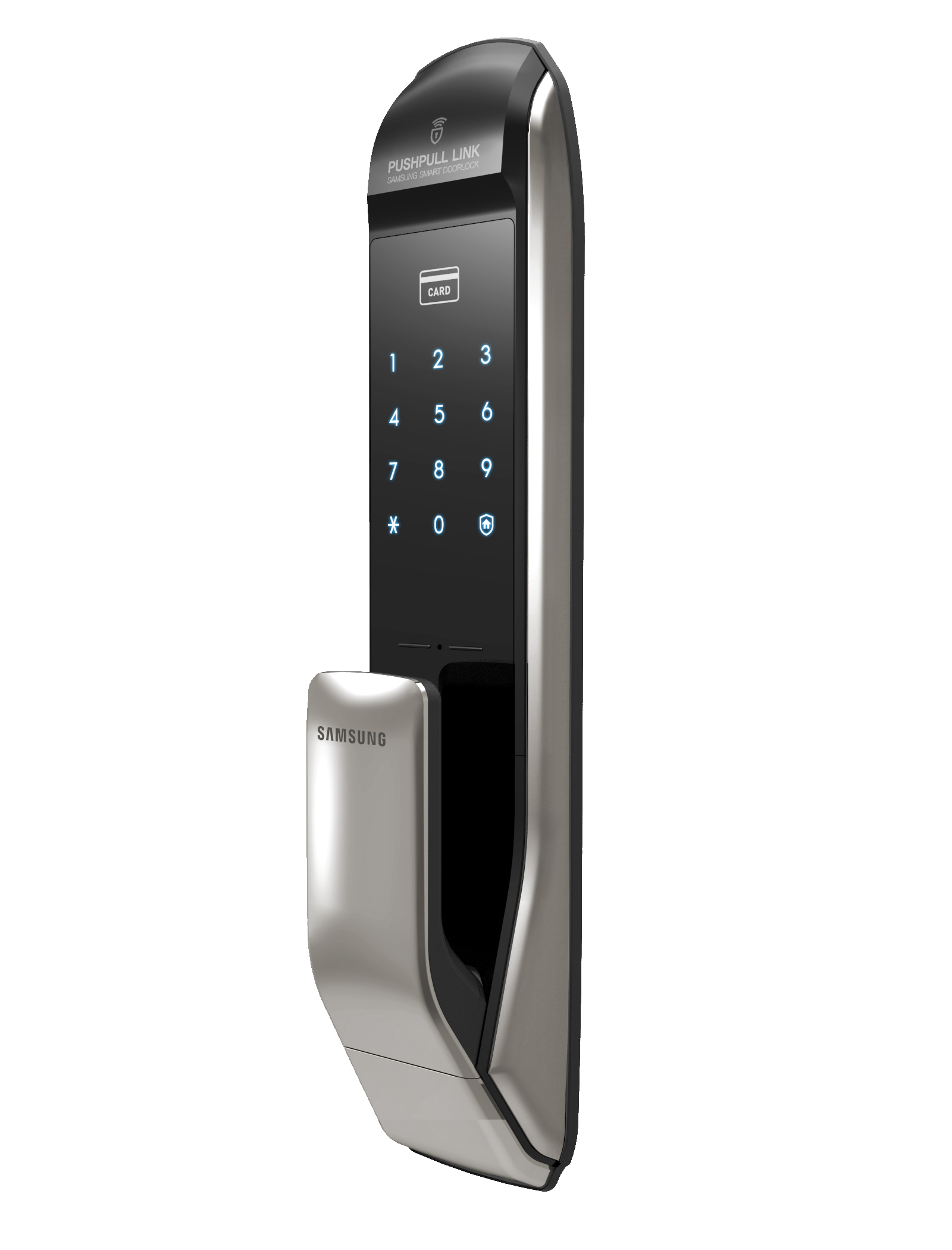

| Name | SHP-DP720MK |
|---|
| Short Description | Samsung Push Pull Door Lock / Black |
|---|
| Long Description | Touch Screen Type Push Pull Door Lock.
The Samsung SDS Z-Wave Door Lock is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enable Z-Wave Plus products. |
|---|
| Brand | SAMSUNG SDS |
|---|
| Product Identifier | SHP-DP720MK |
|---|
| OEM Version | 01 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Door Lock Keypad |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
| Manufacturer ID | 0x022E |
|---|
| Product Type ID | 0x0001 |
|---|
| Product ID | 0x0001 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | Locks |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | ① Click [Add] icon in Z-Wave PC Conroller Program.
② Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
③ Press the [*] button after pressing the [00[*] button.
( Success : Ding dong dang, Fail : Ding dong Ding dong ) | | 2 | Exclusion | After exclusion from Z-Wave Netwokr, , it will no longer be remotely-controlled via the controller.
① Click [Remove] icon in Z-Wave PC Conroller Program.
② Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
③ Press the [*] button after pressing the [00] button.
(Success : Ding dong dang, Fail : Ding dong Ding dong) | | 5 | Factory Reset | All registered Master/User data will be deleted, and Master PIN Code is set to ‘1234’. Also Z-Wave Door Lock is being removed from a network.
① Press the [REG] button for 3 seconds. (Ding dong -> Ding ding)
② Press the [*] button after pressing the [4560852580] button.
(Success: Ding ding dang, Fail : Ding dong Ding dong)
※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | | 6 | Additional Special Features | Privacy Mode Function, Setting the Security Function, Lockout Mode, Intrusion Detection Function, Sound Setting |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Is Flirs | Yes |
|---|
