Certification Number | ZC10-19036397 |
|---|

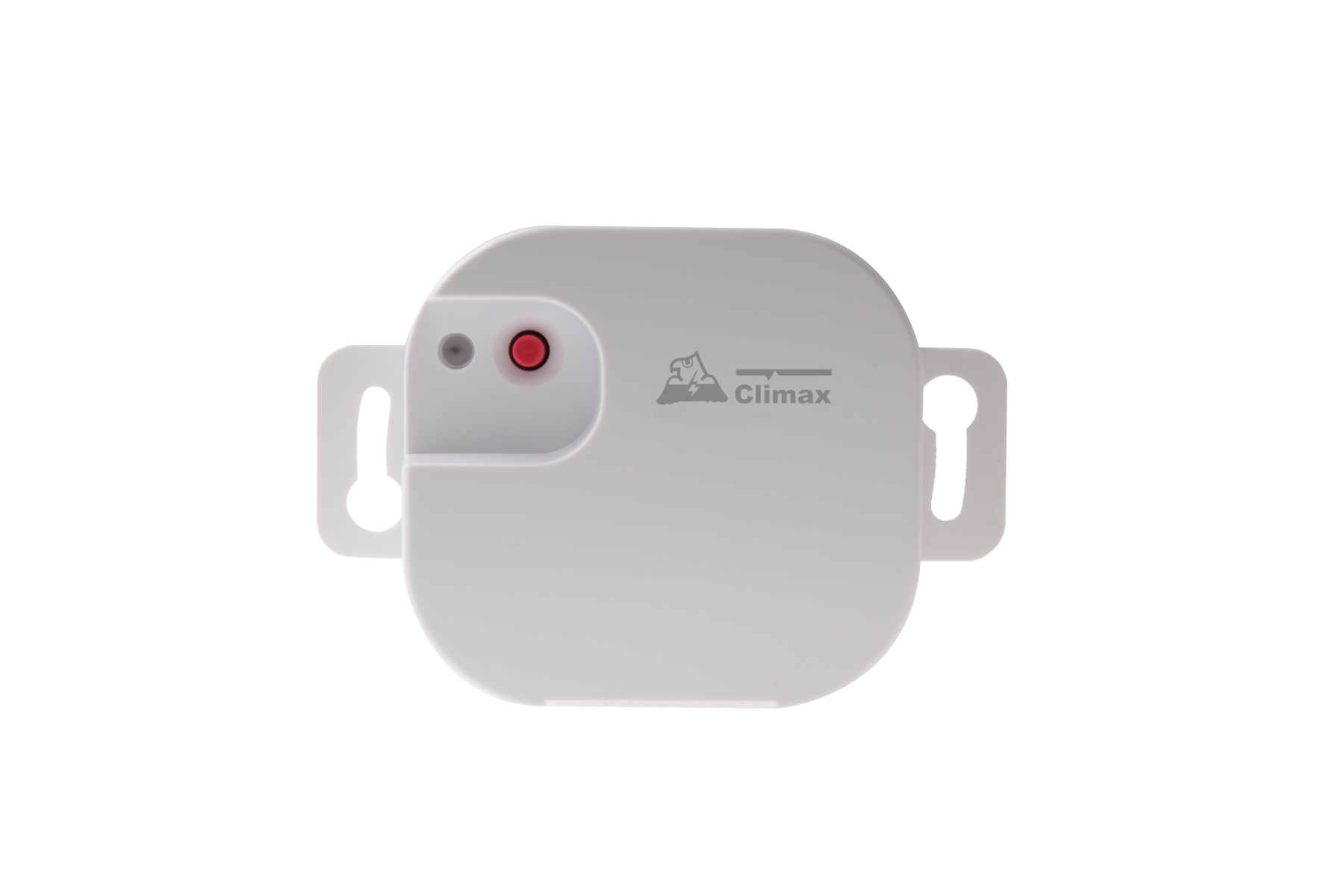

Name | Shutter Control |
|---|
Short Description | The SCM-2ZW is a Z-Wave roller shutter control that provides remote operation of roller shutters for home automation and security purposes. |
|---|
Long Description | The SCM-2ZW is a Z-Wave roller shutter control that provides remote operation of roller shutters for home automation and security purposes. Automatically or remotely roll up, down or stop mid-way, the SCM-2ZW is directly connected to and controls motorized window treatments, interior and exterior shades and blinds, projection screen, and garage door or driveway gate of your home.
With SCM-2ZW, all roller shutters in the house can be configured to automatically open or close according to preset schedules and scenarios. |
|---|
Brand | Climax Technology |
|---|
Product Identifier | SCM-2ZW |
|---|
OEM Version | HW: 255 FW: 4.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Window Covering - Pos/End Aware |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x018E |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0005 |
|---|
User Icon | 0x1A00 |
|---|
Installer Icon | 0x1A00 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Motor Control, Window Covering |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Switch Multilevel V4 | 0x26 | 4 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Window Covering Control Features | Value |
|---|
Supports Up/Down Motion |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline
Switch MultilevelCC,V4
(COMMAND_CLASS_SWITCH_MULTILEVEL)
Device Reset Locally CC, V4
(COMMAND_CLASS_DEVICE_RESET_LOCALLY)
When SCM changes its position: [SWITCH_MULTILEVEL_REPORT]
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Up Time Setting | For parameter 1, users can set the open time (from down to up) to a value that ranges from 0 to 255 seconds. | 0 | 2 | 0 | 0 | 240 | From | To | Description |
|---|
0 | 255 | The ranges from 0 to 255 seconds. |
| 2 | Close Time Setting | For parameter 2, users can set the close time (from up to down) time to a value that ranges from 0 to 255 seconds. | 0 | 2 | 0 | 0 | 240 | From | To | Description |
|---|
0 | 255 | The ranges from 0 to 255 seconds. |
| 3 | Current Position | For parameter 3, users can set the current position to a value that ranges from 0% to 99%. | 0 | 2 | 0 | 0 | 99 | From | To | Description |
|---|
0 | 99 | The ranges from 0% to 99%. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufactures and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
1. Connect the power to Shutter Control (see manual’s Installation).
2. Put the Z-Wave gateway or control panel into Inclusion mode (please refer to the Z-Wave gateway or control panel manual).
3. Within 1.5 seconds, press the Function Button 3 times.
4. Refer to the operation manual of the Z-Wave gateway or control panel to complete the adding process.
5. If the device has already been added (included) into another Z-Wave Gateway/Control Panel, or if the device is unable to be added into the current Z-Wave Gateway/Control Panel, try removing it first (see Removing Device). | 2 | Exclusion | The device must be removed from existing Z-Wave network before being added into another.
1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual).
2. Within 1.5 seconds, press the Function Button 3 times and the device will be removed from the Z-Wave network. | 5 | Factory Reset | (Only use factory reset when network Control Panel/Gateway is missing or inoperable).
Factory resetting the device will restore it to factory default settings (i.e. excluded from Z-Wave network). Please use the reset procedure only when the primary controller is missing or inoperable.
Press and hold the Function Button of the device for 10 seconds to factory reset. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
