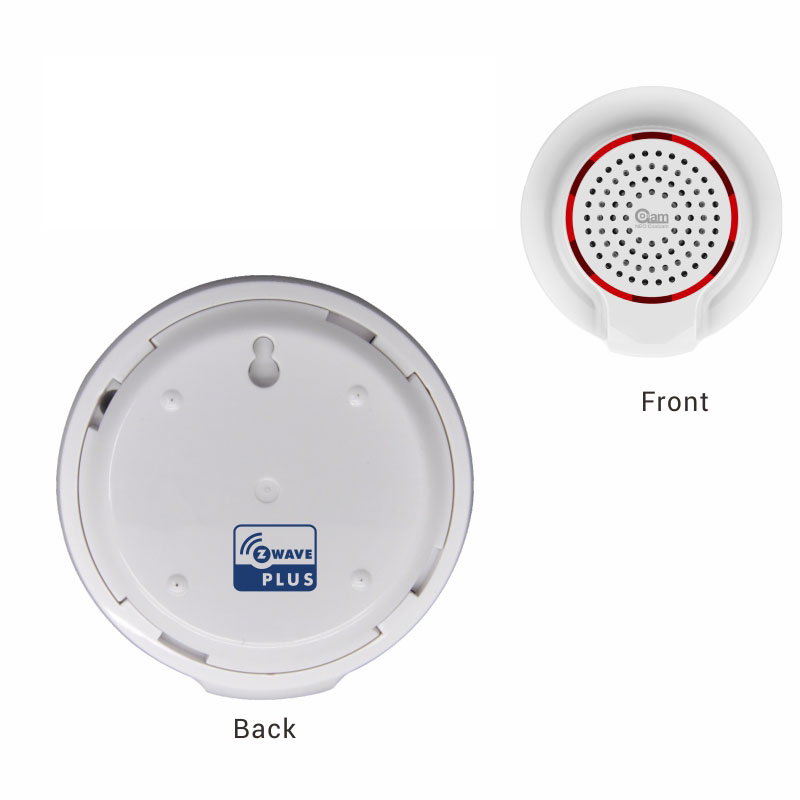

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_SWITCH_BINARY

Switch Binary

0x25

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_INDICATOR

Indicator

0x87

1

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product or Owner's Manual

Firmware Updatable

Battery Quantity

Battery Type

Color

Communications Connections

Communications Protocol

Z-Wave Scene Type

1

5

0

GROUP 1 is lifeline service that assigned to Siren status. It enables the Siren to send reports and readings to Z‐Wave Controller or Z‐Wave Gateway whenever the sensor is triggered. This Group Support: SWITCH_BINARY_REPORT, NOTIFICATION_REPORT, BATTERY_REPORT, DEVICE_RESET_LOCALLY_NOTIFICATION

2

5

0

GROUP 2 allows for Send Binary Switch Report to associated devices in this group. This Group Support: SWITCH_BINARY_REPORT

3

5

0

GROUP 3 allows for Send Notification to associated devices in this group. This Group Support: NOTIFICATION_REPORT

4

Configure Door Bell Music Volume

This parameter defines the output volume when siren plays alarm music. Door Bell music volume is divided into 3 stages, Low (Parameter is set to ‘1’), Middle (Parameter is set to ‘2’), High(Parameter is set to ‘3’). Default value is ‘1’.

0

1

0

0

1

5

Configure Alarm Music Index

This parameter defines the alarm music index for siren play different music when alarm occurs. There are 10 different music for user selection.

0

1

0

0

10

6

Configure Door Bell Music Index

This parameter defines the door bell music index for siren play different music when alarm occurs. There are 10 different music for user selection.

0

1

0

0

9

8

Configure Alarm Led Enable

This parameter defines the default led enable status when siren is on for ALARM MUSIC MODE. If parameter is set to ‘0’, led will be disable. If parameter is set t0 ‘1’, led will be enable. When siren is on, the led will blink.

0

1

0

0

1

9

Configure Door Bell Led Enable

This parameter defines the default led enable status when siren is on for DOOR BELL MUSIC MODE. If parameter is set to ‘0’, led will be disable. If parameter is set t0 ‘1’, led will be enable. When siren is on, the led will blink.

0

1

0

0

0

7

Configure Default Siren On Mode

This parameter defines the default music index, volume and the duration time forsiren on. This parameter can be selected between ALARM MUSIC and DOOR BELL MUSIC. The settings for ALARM MUSIC MODE defines by Param #1, #2 and #5. The settings for DOOR BELL MUSIC MODE defines by Param #3, #4 and #6. If parameter is set to ‘1’, siren will select ALARM MUSIC MODE to play music; If parameter is set to ‘2’, siren will select DOOR BELL MUSIC MODE to play music;

0

1

0

0

1

1

Configure Alarm Music Volume

This parameter defines the output volume when siren plays door bell music. Door Bell music volume is divided into 3 stages, Low (Parameter is set to ‘1’), Middle (Parameter is set to ‘2’), High (Parameter is set to ‘3’). Default value is ‘3’.

0

1

0

0

3

2

Configure Alarm Music Duration Time

This Parameter defines the alarm music duration time when siren receive an alarm sensor notification report or an alarm command from controller. The duration time is divided into 5 stages: Siren is not on (Parameter is set to ‘0’), 30 second (Parameter is set to ‘1’), 1 minute (Parameter is set to ‘2’), 5 minute (Parameter is set to ‘3’) and Siren is always on until battery is dead (Parameter is set to ‘0xFF’). Default value is ‘2’. The value for this parameter is unsigned value. Values above 127 may need to be entered as hexadecimal values or signed negative values; please consult the owner's manual of your controller for entering unsigned values.

0

1

0

0

2

3

Configuring Door Bell Music Duration Time

This parameter defines the door bell music duration time when siren receives a door/window sensor notification report or an alarm command (BASIC_SET = 0x02) from controller. The door bell music will be played always if this parameter is set to ‘0xFF’. The door bell music will not be played if this parameter is set to ‘0’. Other values are the door bell music playing duration time. Unit: Time. The value for this parameter is unsigned value. Values above 127 may need to be entered as hexadecimal values or signed negative values; please consult the owner's manual of your controller for entering unsigned values.

0

1

0

0

1

4

Device Wake-Up

You can press the button once to wake up the device and send wakeup notification to controller. If press successfully, the LED will blink one time

1

Inclusion

In the front casing, there is button that is used to carry out include, exclude or reset factory default settings on PCB Board. When power is first supplied, the LED will flash on and off alternately at one second intervals within 5 seconds if the detector has not been added a Z‐Wave network. Please get familiar with the terms below before starting the operations. This product can be included and operated in any Z‐Wave network with other Z‐Wave certified devices from other manufacturers and/or other applications. All non‐battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

2

Exclusion

1. Remove the siren cover. 2. Make sure the siren is powered. 3. Set Z‐Wave controller or Z‐Wave gateway into inclusion mode (Refer to the controller or gateway operating manual) 4. Press the button three times within 1.5 second, the device will enter inclusion mode. And the LED will flash on and off alternately five times. Note: If siren has not been added to Z‐wave network, the siren will enter inclusion mode automatically when it is powered on. You should let the controller enter into inclusion first before power on the siren in order to run this function.

5

Factory Reset

Reset procedure will delete all information on the Z‐Wave network and Z‐Wave controller or Z‐Wave Gateway, and restore the siren to factory default settings. 1. Remove the device cover. 2. Make sure the siren is powered. 3. Press and hold the button for 10 seconds, led will blink once. 4. Release the button. Note: to use the reset procedure only when the primary controller is missing or inoperable.
