Product Recognition | |
|---|
Certification Number | ZC10-14090012 |
|---|

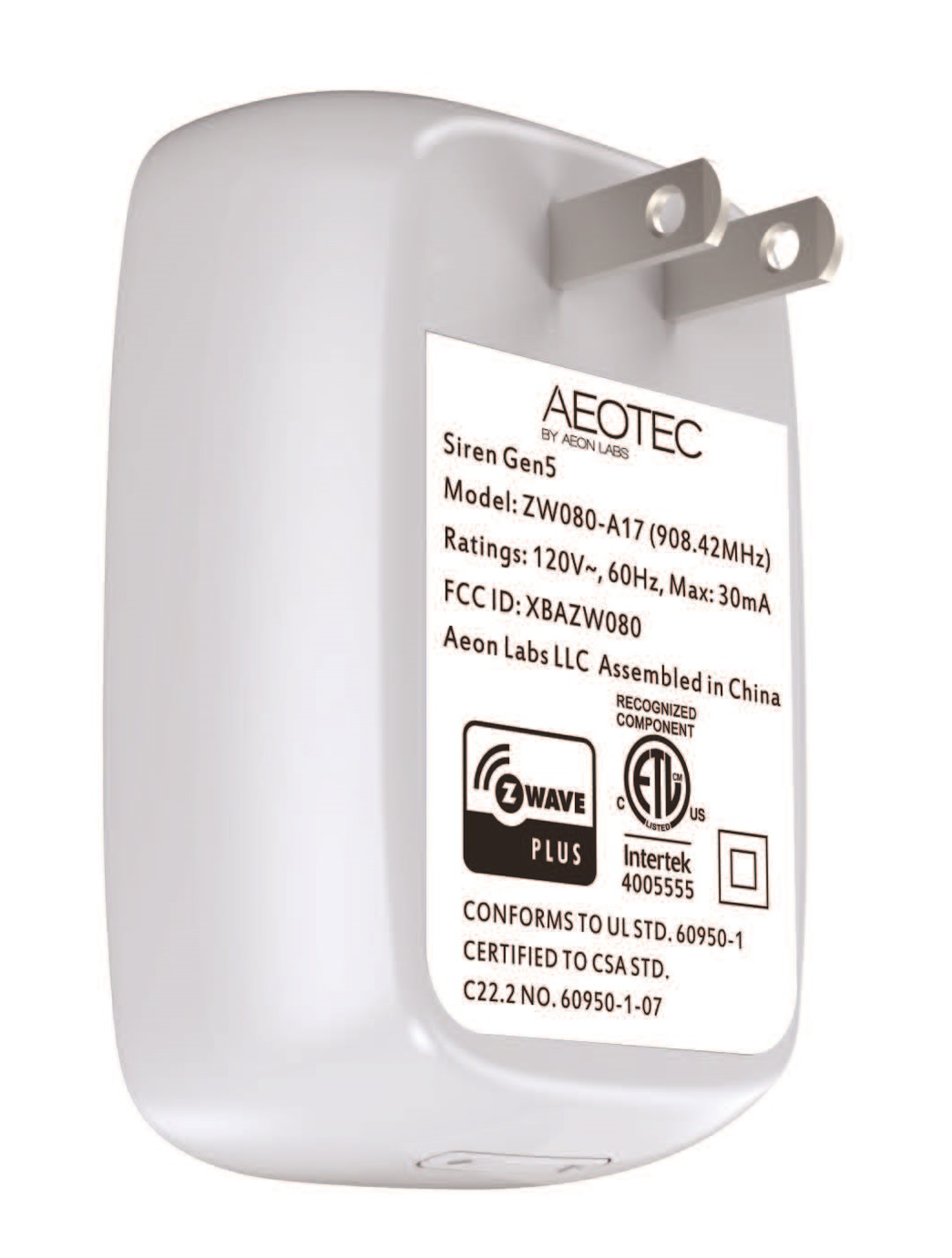

Name | Siren Gen5 |
|---|
Short Description | Siren Gen5 is an siren Z-Wave device that when an emergency is happening it lets you know. |
|---|
Long Description | Aeon Labs Siren Gen5 is an siren Z-Wave device that when an emergency is happening it lets you know. Its 105dB Speaker System is always heard. Its super-bright LED system lights your path even when it’s dark. Siren provides a smart home with the perfect security and safety features that it needs.
Those security and safety features are matched by smart features. Siren’s speaker system can access 5 different audio alerts, allowing your smart home to pick the alert best suited to the emergency. The speaker system’s volume can also be adjusted so that Siren is perfect for every space in every home.
It also act as a repeater that forward Z-Wave command messages to destination nodes if the originating controller is out of range from the destination node.
By taking advantage of the Z-Wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-Wave certified devices.
Also a tool that can be programmed, scheduled, controlled and communicated with from anywhere in the world. |
|---|
Brand | Aeotec |
|---|
Product Identifier | ZW080-A17 |
|---|
OEM Version | HW: 50 FW: 3.25 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Siren |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0086 |
|---|
Product Type ID | 0x0104 |
|---|
Product ID | 0x0050 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | United States of America |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_HAIL | Hail | 0x82 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate.
When the Siren is received the commands sent by controller to be turned on or off, the Siren will send a basic report of its status to the nodes in association group 1. To change what kind of signal is sent to the nodes in group 1, please see the detailed description of configuration parameter 80.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
200 | Partner ID | This parameter is used to configure the partner ID. (0== Aeon Labs Standard Product, 1~255== others). | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Aeon Labs Standard Product | 1 | 255 | Partner ID of Partner Product |
| 252 | Enable/Disable Lock Configuration | This parameter is used to enable/disable Lock all configuration parameters. (0 =disable, 1 = enable) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | All configuration parameters are configurable. | 1 | 1 | All configuration parameters are not configurable (Locked). |
| 255 | Reset to default factory setting | This parameter is used to reset product to default factory setting. (There are just 2 values can be used). | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
1431655765 | 1431655765 | Reset the product to default factory setting and be excluded from the Z-wave network. | 1 | 1 | Resets all configuration parameters to default setting. |
| 80 | Enable/Disable to send notifications to associated devices to associated devices. | This parameter is used to Enable/Disable to send notifications to associated devices (in Group 1) when the state of Siren Gen5’s load is changed. (0=Send nothing, 1=Send hail CC, 2=Send basic report CC). | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
2 | 2 | Send BASIC Report Command | 0 | 0 | Send Nothing (Disabled) | 1 | 1 | Send HAIL Command |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. | 2 | Exclusion | Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing. | 3 | Learn Mode (adding another controller) | N/A | 4 | Device Wake-Up | N/A | 6 | Additional Special Features | Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. | 5 | Factory Reset | Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
