Product Recognition
Certification Number	ZC10-14040001

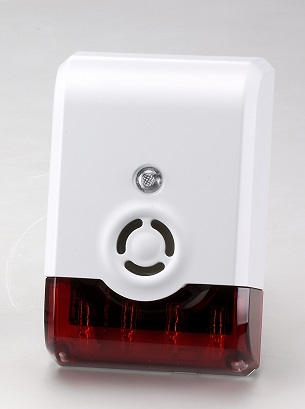

Name	Siren with LED strobe light
Short Description	Siren with LED strobe light, Battery Operated (4*AA)
Long Description	This product will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave™ enabled network. This siren is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network. Configuration modes are provided to select; Strobe, Siren or Both and to set Alarm Auto Stop time. Features also include Self-Protection (tamper proof) alert and Battery Life Alert. 105dB siren at 1 meter.
Brand	Vision
Product Identifier	ZM1601EU-5
OEM Version	HW: 2 FW: 24.07
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	Siren
Role Type	ROLE_TYPE_SLAVE_SLEEPING_LISTENING
Manufacturer ID	0x0109
Product Type ID	0x2005
Product ID	0x0505
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Security Add-Ons
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZM 1601 Siren_20140407-500 series.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 LifeLine association for central static controller COMMAND_CLASS_DEVICE_RESET_LOCALLY, DEVICE_RESET_LOCALLY_NOTIFICATION, COMMAND_CLASS_BATTERY, BATTERY_REPORT, COMMAND_CLASS_NOTIFICATION_V4, NOTIFICATION_REPORT_V4
Configuration Parameters	Parameter Number Name Format Size Min Value Max Value Default Value Parameter Values 1 Siren/Strobe Mode 0 1 0 0 0 From To Description 0 2 0(All Enable),1(Siren Only),2(Storbe only) 2 Alarm Auto Stop Time 0 1 0 0 0 From To Description 0 2 0(30s),1(60s),2(120s),3(unlimited)
Texts	ID Description Value 6 Additional Special Features Battery Life Reporting, Select strobe only, siren only or both; Sleect Alarm Reset Time, Tamper Switch, Over the air updates (OTA function), Self Protection Mode, PowerLevel Control, Detecting Battery Voltage (report back when low voltage) , 105dB at 1 meter 5 Factory Reset All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. 1 Inclusion For “Inclusion” (adding to) a network, put the Z-Wave™ network controller into “inclusion” mode, and following its instruction to add the ZM 1601 to your controller. To get the ZM 1601 in the “inclusion” mode, open the bracket and press the program switch of ZM 1601 for 1 second at least & release to be included. After waiting a few seconds the LED Setting Lighting should go off, if not, please try again. (After sending the Z-Wave NIF one time if the ZM1601 is not included it will send 4 times Network Wide Inclusion request every 4 ~ 6 seconds for auto inclusion. The orange LED will flash again if the siren has not been included or the orange LED will go off after inclusion.) 2 Exclusion For “Exclusion” from (removing from) a network: Set up the Z-Wave™ network controller into “exclusion” mode, and following its instruction to delete the ZM 1601 from your controller. Press the program switch of ZM 1601 for 1 second at least & release to be excluded. Note: a. LED setting light will flash (orange color) continuously in Exclusion condition for 25 seconds. b. All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. 4 Device Wake-Up It is FLiRS device
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
