Product Recognition | — |
|---|---|
Certification Number | ZC08-12080006 |

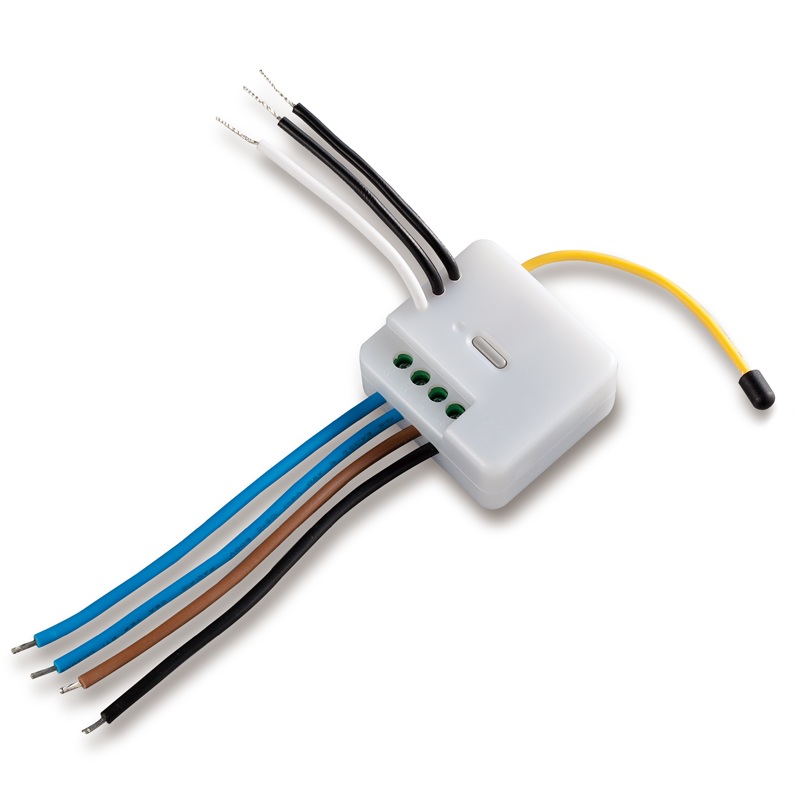

Name | Small Z-Wave In-Wall Switch Module With Two Relay |
Long Description | This in-wall switch module is a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s Wireless Controller.
This in-wall switch module is able to detect overload wattage of connected non-dimmable lights or appliances. When detecting overload state, the Module will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, disconnect and re-connect the wiring of the Module will reset its overload condition to normal status.
Two additional digital inputs allow user to manual switch on/off the module for normal operation and can manual execute inclusion/exclusion/association at the first 3 minute when the first power is applied, this can let installer easy to configure even the module already install inside the wall box. |
Brand | Everspring |
Product Identifier | HAN02-1 |
OEM Version | V2.0 |
Hardware Platform | ZM3102 |
Z-Wave Version | 4.54.01 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x0060 |
Product Type ID | 0x0011 |
Product ID | 0x0002 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | European Union |
Documents | |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
