Product Recognition | |
|---|
Certification Number | ZC10-19016365 |
|---|

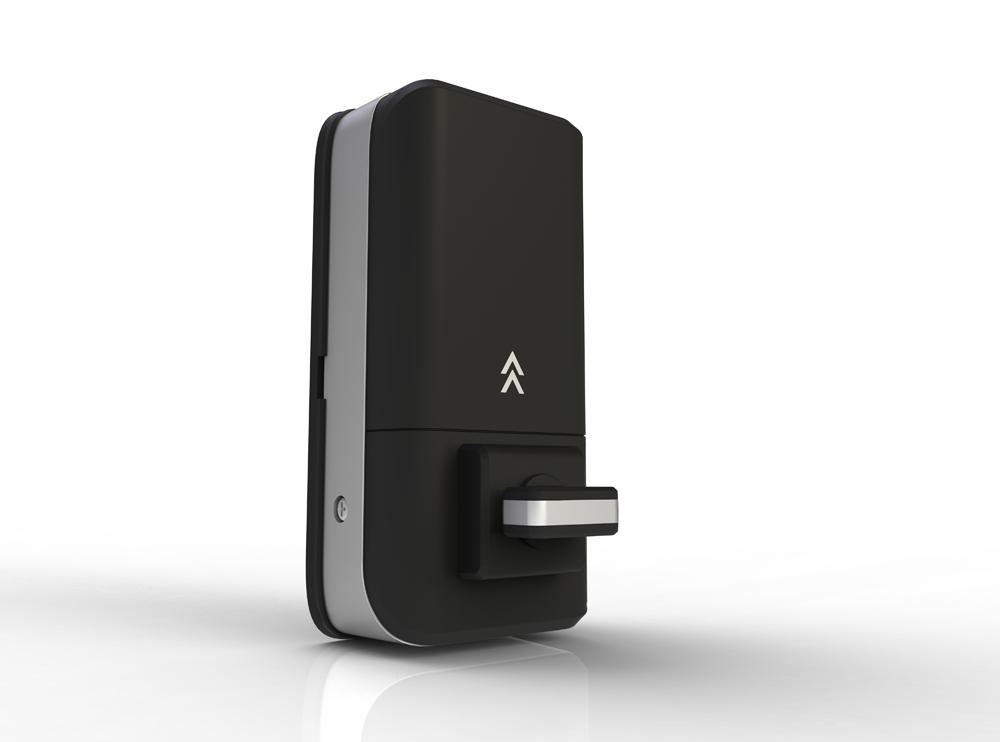

Name | Smart Ashley+Z |
|---|
Short Description | It is a Smart Lock which can be used with Z-Wave and Bluetooth. |
|---|
Long Description | YDL110DZ Smart Lock is a device that can control the door lock and check the status from outside as well as near by using Bluetooth or Gateway.
In addition, this product can communicate with Z-Wave Plus products in compliance with the Z-Wave Plus communication security standard. |
|---|
Brand | Yasuda Co,. Ltd |
|---|
Product Identifier | YDL110DZ |
|---|
OEM Version | HW: 255 FW: 4.01:04.02 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x0418 |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
IP (Ingress Protection) Rated | | Outdoor Use | | Battery Quantity | | Battery Type | | Gateway Has Preferred Partners | | Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 is the Lifeline group. It can contain up to 5 nodes. The Lifeline group on this lock is used to report battery status, door lock operation status, and device reset locally notifications to nodes on the group list.
| 2 | 5 | 0 | Group 2 is the Doorlock Op group. It can contain up to 5 nodes. The Doorlock Op group on this lock is used to report door lock operation status to nodes on the group list. |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Exclusion:
1. Insert the battery.
2. The handle is unhooked.
3. Press and hold the 'B' Tact switch for about 3 seconds.
4. (If door lock is in inclusion) Door lock enters exclusion mode. | 1 | Inclusion | Inclusion:
1. Insert the battery.
2. The handle is unhooked.
3. Press and hold the 'B' Tact switch for about 3 seconds.
4. Door lock enters Inclusion Mode. | 5 | Factory Reset | 1. Insert the battery.
2. The handle is unhooked.
3. Press and hold the 'A' + 'B' Tact switch for about 5 seconds.
4. Door lock is factory reset.
* Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 4 | Device Wake-Up | 1. To lock / unlock the handle by manually moving it.
2. Receiving Z-Wave Command. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
