Product Recognition | |
|---|
Certification Number | ZC10-19096748 |
|---|

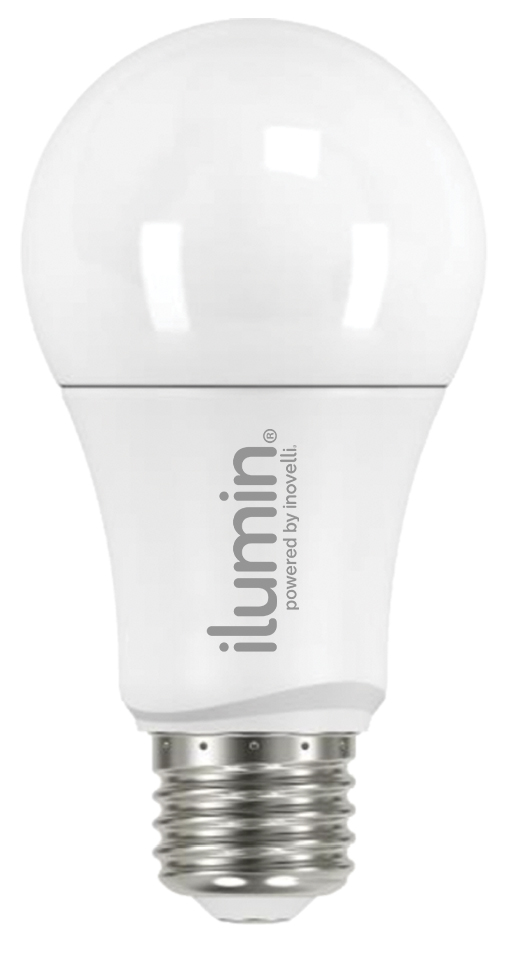

Name | Smart Bulb |
|---|
Short Description | The dimming bulb by ilumin allows you to experience smart lighting at its finest (set schedules, scenes, etc). All powered by Z-Wave Plus technology. |
|---|
Long Description | With 806 lumens and smooth dimming, this bulb has it all. Best part? It's powered by Z-Wave Plus technology. Imagine walking into a room, tapping a switch (hopefully Inovelli) and your ilumin lights come on to a beautiful movie scene. Or as you're winding down for the night, the lights gradually dim off as you drift to sleep. These are some of the many things you can do with smart bulbs and we're excited to be able to share them with you. |
|---|
Brand | Ilumin by Inovelli |
|---|
Product Identifier | LZW40 |
|---|
Product Line | Smart Lighting |
|---|
OEM Version | HW: 255 FW: 2.24 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x031E |
|---|
Product Type ID | 0x0007 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SWITCH_MULTILEVEL | Switch Multilevel | 0x26 | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_English | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Memory Function | This parameter will determine how your bulb behaves after power is restored to it from an outage. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | Remembers Last State | 1 | 1 | Bulb turns ON after power outage |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | If you are having issues pairing/including your device, please ensure your bulb is within range of your HUB (pages 2-3). If you believe you’re within range and it’s still not working, then you may have to run an Exclusion. Put your HUB in Exclusion mode and turn the power on. Your bulb will blink twice (2x), indicating it’s in exclusion mode. When exclusion is successful, it will blink one more time (1x) to confirm. Your HUB should say that the device is excluded. | 5 | Factory Reset Procedure | You may power on/off the bulb 6x (between 0.5-2 seconds each time) or use a certified controller to remove the device from your network to factory default. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable. Your bulb will flash twice to confirm factory reset. | 1 | Classic Inclusion | With the power to the smart bulb turned off, start the inclusion process on your HUB/Gateway.
Once the inclusion process has started, turn on power to the bulb and it will blink twice (2x) indicating it’s in inclusion mode. If the bulb was included successfully, it will blink one more (1x) time. If it was not included successfully, you may have to run an exclusion as mentioned above. If there’s still issues, please ensure your bulb is within range. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Illuminance |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
