Product Recognition | |
|---|
Certification Number | ZC10-16095241 |
|---|

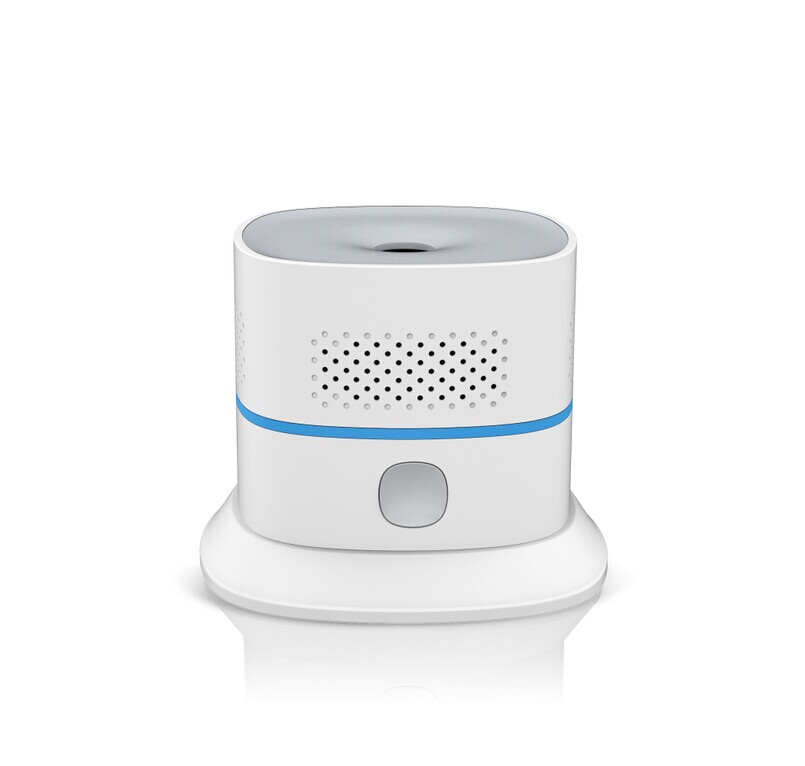

Name | Smart Carbon Monoxide Sensor |
|---|
Short Description | The smart carbon monoxide sensor adapts Z-Wave wireless communication technology to send an alarm notification to the gateway and sound an alarm to alert people of carbon monoxide producing in house. |
|---|
Long Description | The smart carbon monoxide sensor detects CO, and sends alarm signals to alert people of the danger. When the smart carbon monoxide sensor detects CO, it will send an alarm notification to the gateway through wireless Z-Wave communication protocol, then the gateway sends the notification to server, the server interprets the signal and transfers the signal to users' APP. The smart carbon monoxide sensor has high stability and sensitivity, which will protect house from CO poisoning effectively. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS1CA-Z |
|---|
OEM Version | HW: 255 FW: 1.10 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.08 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x8005 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0C02 |
|---|
Installer Icon | 0C02 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Color | | Communications Connections | Value |
|---|
Ethernet (Wireless/WiFi) |
| Communications Protocol | | Firmware Updatable | | Switch Load Capacity Current | Value |
|---|
0.000015A(Static Current) |
| Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Outdoor Use | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association group 1: Lifeline association group
Include command classes: Battery report, Notification report, and Device Reset Locally notification, Binary report. | 2 | 5 | 0 | ▶ Association group 2: Root Device group(Binary Sensor)
Binary Sensor Command Class: Compatible with 300 series
1-Binary Sensor reports status of CO or no CO via Lifeline.
2-When the sensor detects status change of CO and no CO, the device will be triggered. | 3 | 5 | 0 | ▶Association group 3: Root Device group(Notification)
1-Notification reports status of detect CO or no CO via Lifeline.
2-When the sensor detects status change of CO and no CO, the device will be triggered. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Click [Add] icon in Z-Wave PC Controller Program.
- Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green LED will turn off. | 2 | Exclusion | - Click [Remove] icon in Z-Wave PC Controller Program
- Press the Net_Button 3 times within 1.5s
- If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off. | 5 | Factory Reset | -Long press Net_Button while installing batteries in HS1CA-Z.
- Device Reset Locally notification is Transmitted.
-Please use this procedure only when the network primary controller is
missing or otherwise inoperable. | 4 | Device Wake-Up | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
