Product Recognition
Certification Number	ZC10-16105266

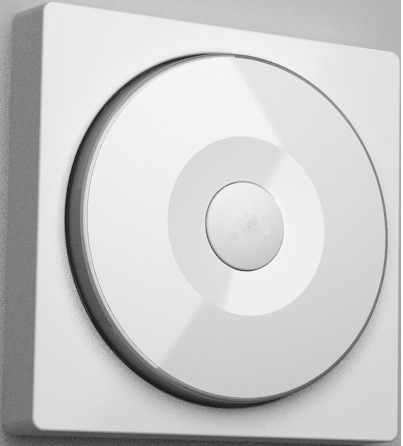

Name	Smart Color Button
Short Description	This device is a multiple functions button switch. It is able to switch the appliances on/off or adjust the percentage of dimmer or curtain.
Long Description	This device is a multiple functions button switch. It is able to switch the appliances on/off or adjust the percentage of dimmer. The well designed wall bracket and magnetic back let the switch can be fixed on the wall. This product can be included and operated in any Z-Wave™ network with other Z-Wave™ certified devices from other manufacturers and/or other applications.
Brand	Philio
Product Identifier	PSR07
OEM Version	HW: 1 FW: 1.08:01.06
Hardware Platform	SD3502
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED
Device Type	Wall Controller
Role Type	ROLE_TYPE_SLAVE_PORTABLE
Manufacturer ID	0x013C
Product Type ID	0x0009
Product ID	0x0039
User Icon	0x1600
Installer Icon	0x1600
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, Lighting Accessories
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PSR07_UserManual.pdf
Features	Feature Values Battery Quantity Value 1 Battery Type Value Li602025 Z-Wave Scene Type Value Central Scene
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 8 0 Z-Wave Plus Lifeline 2 8 0 ON/OFF Light
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 Basic Set ON level Control the value represented by the right-side in area D. E.g. Setting this configuration to 0x1E means range of Command Basic Set value start from 0x1E. 0 1 0 0 99 From To Description 0 99 basic set value of ON from 0~99 25 Percentage Set Method Dimmer setting method. 0 : Auto send Command Basic Set after rotating. 1 : Send Command Basic Set by touching key after rotating 0 1 0 0 0 From To Description 0 0 Auto send Command Basic Set after rotating. 1 1 Send Command Basic Set by touching key after rotating 1 Basic Set OFF level Control the value represented by the left-side in area D. E.g. Setting this configuration to 0x0F means range of Command Basic Set value start from 0x0F. 0 1 0 0 0 From To Description 0 99 basic set value of OFF from 0~99
Texts	ID Description Value 1 Inclusion 1. Have Z-Wave™ Controller entered inclusion mode. 2. Rotate to area A and then press button three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-Wave™ Controller about 20 seconds. 2 Exclusion 1. Have Z-Wave™ Controller entered exclusion mode. 2. Rotate to area A and then press button three times within 1.5 seconds to enter the exclusion mode. Node ID has been removed. 4 Device Wake-Up After the device adding to the network, it will wake-up once per day in default. When it wake-up it will broadcast the “Wake Up Notification” message to the network, and wake-up 20 seconds for receive the setting commands. The wake-up interval minimum setting is 30 minutes, and maximum setting is 120 hours. And the interval step is 30 minutes. If the user want to wake-up the device immediately, please rotate to area A and then press the button once. The device will wake-up 10 seconds. 5 Factory Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Rotate to area A and then press button four times within 1.5 seconds and do not release the button in the 4 th pressed, and the red LED will light ON. 2. After the red LED goes out, release the button within 2 seconds. 3. IDs are removed and all settings will reset to factory default.
Supports NWI	Yes
Supports Explorer Frames	Yes
