Product Recognition | |
|---|
Certification Number | ZC10-16125343 |
|---|

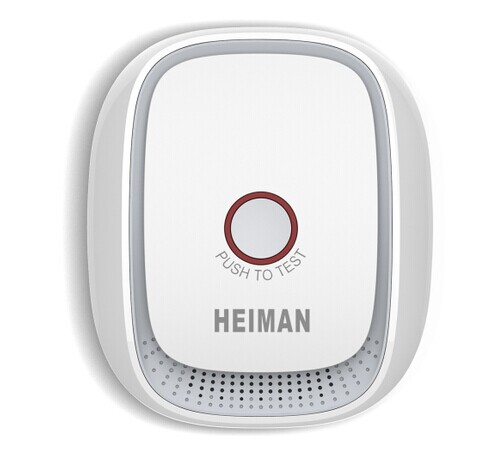

Name | Smart Combustible Gas Sensor |
|---|
Short Description | Smart combustible gas sensor is to detect gas leakage and send alarm to smart phone via gateway. |
|---|
Long Description | The smart combustible gas sensor is designed to detect methane(CH4), and sound alarm to remind people of the danger, it can also send notification to users' smart phone via gateway to remind of people remotely. it adopts Z-Wave wireless transmission technology. With the characteristics of high sensitivity and stablization, it can avoid fire or explosion happened in advance. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS1CG-Z |
|---|
OEM Version | HW: 12 FW: 1.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x8003 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0x0C12 |
|---|
Installer Icon | 0x0C12 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_NOTIFICATION_V7 | Notification V7 | 0x71 | 7 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Protocol | | Color | | Communications Connections | Value |
|---|
Ethernet (Wireless/WiFi) |
| Electric Load Type | | IP (Ingress Protection) Rated | | Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | | Sensors | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association group 1: Lifeline association group
- Maximum supported node is 1.
Include command classes: Notification Report and Device Reset Locally notification. | 2 | 5 | 0 | ▶Association group 2: Root Device group(Notification)
Maximum supported nodes are 5.
1-Notification reports status of gas detected or no gas detected via Lifeline.
2-When the sensor detects status change of gas detected and no gas detected, the device will be triggered. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Click [Add] icon in Z-Wave Controller.
- Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second.
- If add Process is successful, Green LED will turn on. | 2 | Exclusion | - Click [Remove] icon in Z-Wave Controller.
- Press the Net_Button 3 times within 1.5s
- If remove Process is successful, Green LED is Blinking 6 times, then turn on | 5 | Factory Reset | -Long press Net_Button at least 10 seconds in the device.
-Device Reset Locally notification is Transmitted.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
