Product Recognition

Certification Number

ZC10-25050006

Name

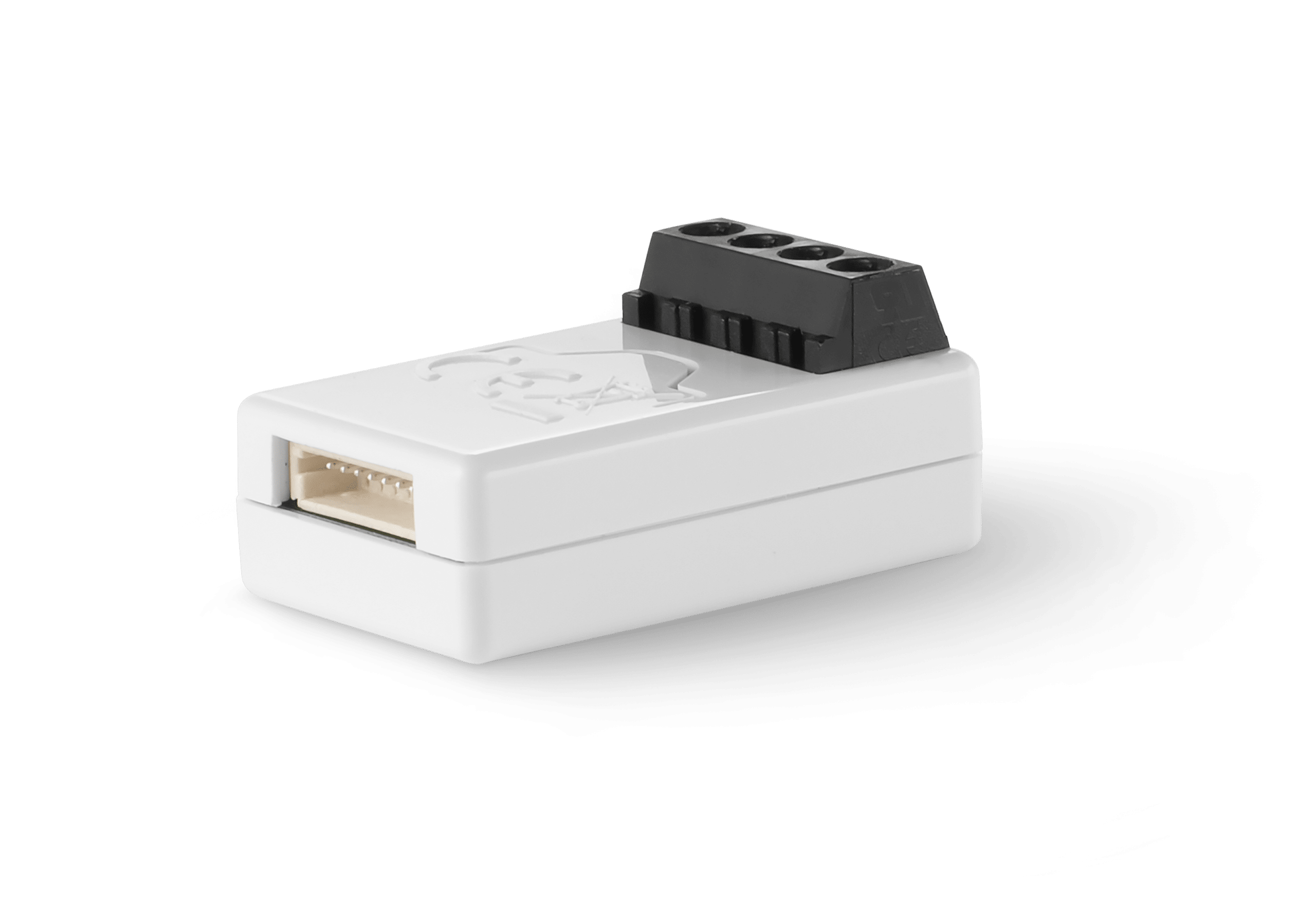

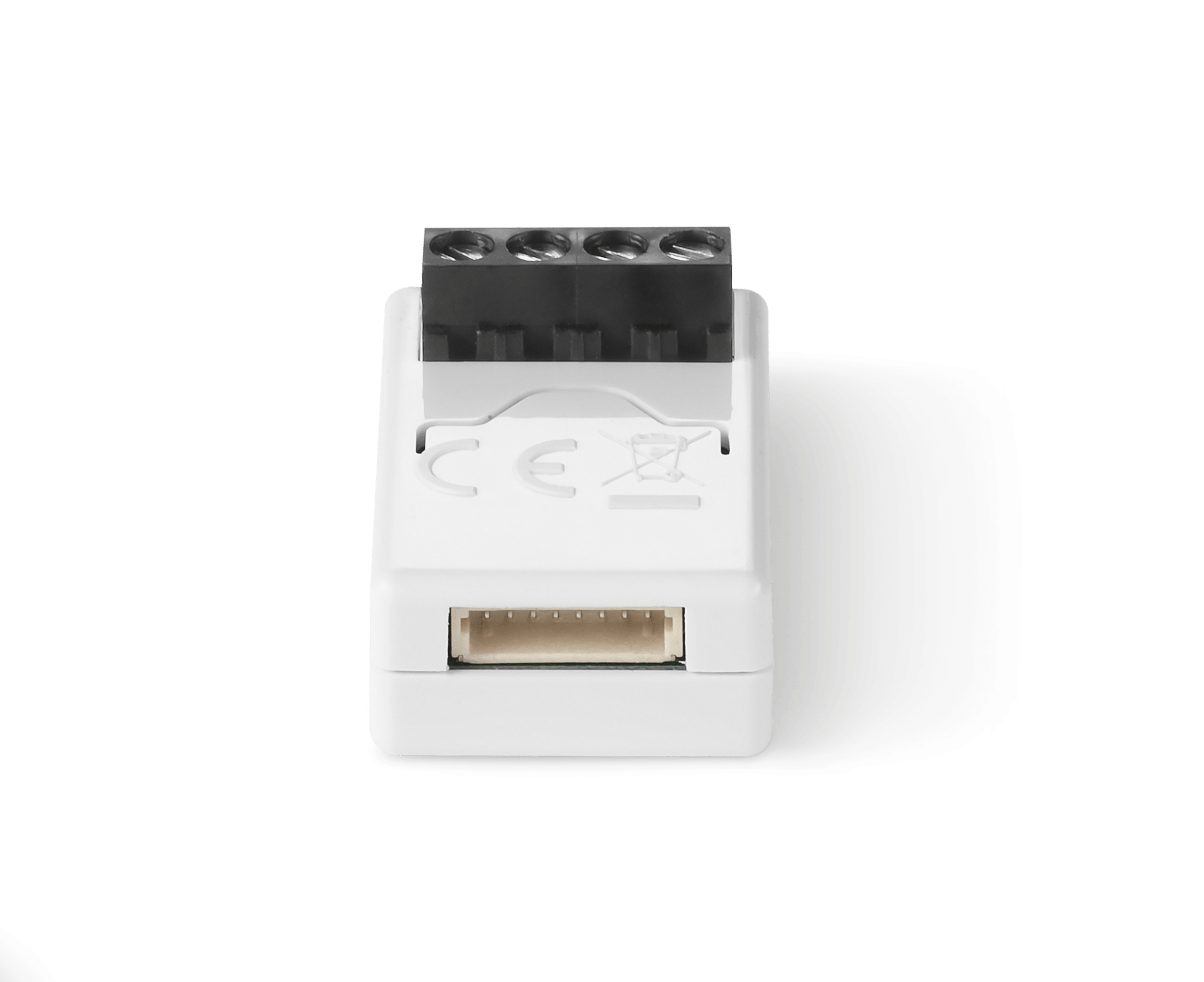

Smart-Control

Short Description

Smart-Control allows to enhance the functionality of wired sensors and other devices by adding Z-Wave® network communication.

Description

Smart-Control allows to connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to the Z-Wave controller. It can also control devices by opening/closing output contacts independently of the inputs.

Brand

Nice

Brand Owner

Nice

Identifier

FGBS-222

Product Line

Nice Smart-Control

OEM Version

HW: 02 FW: 05.02

Hardware Platform

ZM5101A-CME3

Z-Wave Version

6.81.01

Library Type

END_NODE_ENHANCED_232

Device Type

Sensor - Notification

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x0502

Product ID

0x2000

User Icon

0x0C00

Installer Icon

0x0C00

Radio Range Z-Wave (m)

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

Sensors

Countries / Regions

Canada, Mexico, United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_AUTHENTICATED, S2_UNAUTHENTICATED

Documents

Texts

ID	Description	Value
8	Where to find S2 DSK on product	If you are adding in Security S2 Authenticated, scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box).
1	Classic Inclusion	4.1 - Adding manually To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
2	Classic Exclusion	To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message. Notes: •Removing the device restores all the default parameters of the device, but does not reset power metering data.
5	Factory Reset Procedure	6.4 - Resetting to factory defaults Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Note. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described. 1. Press and hold the button to enter the menu. 2. Release button when the device glows yellow. 3. Quickly click the button to confirm. 4. After few seconds the device will be restarted, which is signalled with the red colour.

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes
