Product Recognition
Certification Number	ZC10-17035455

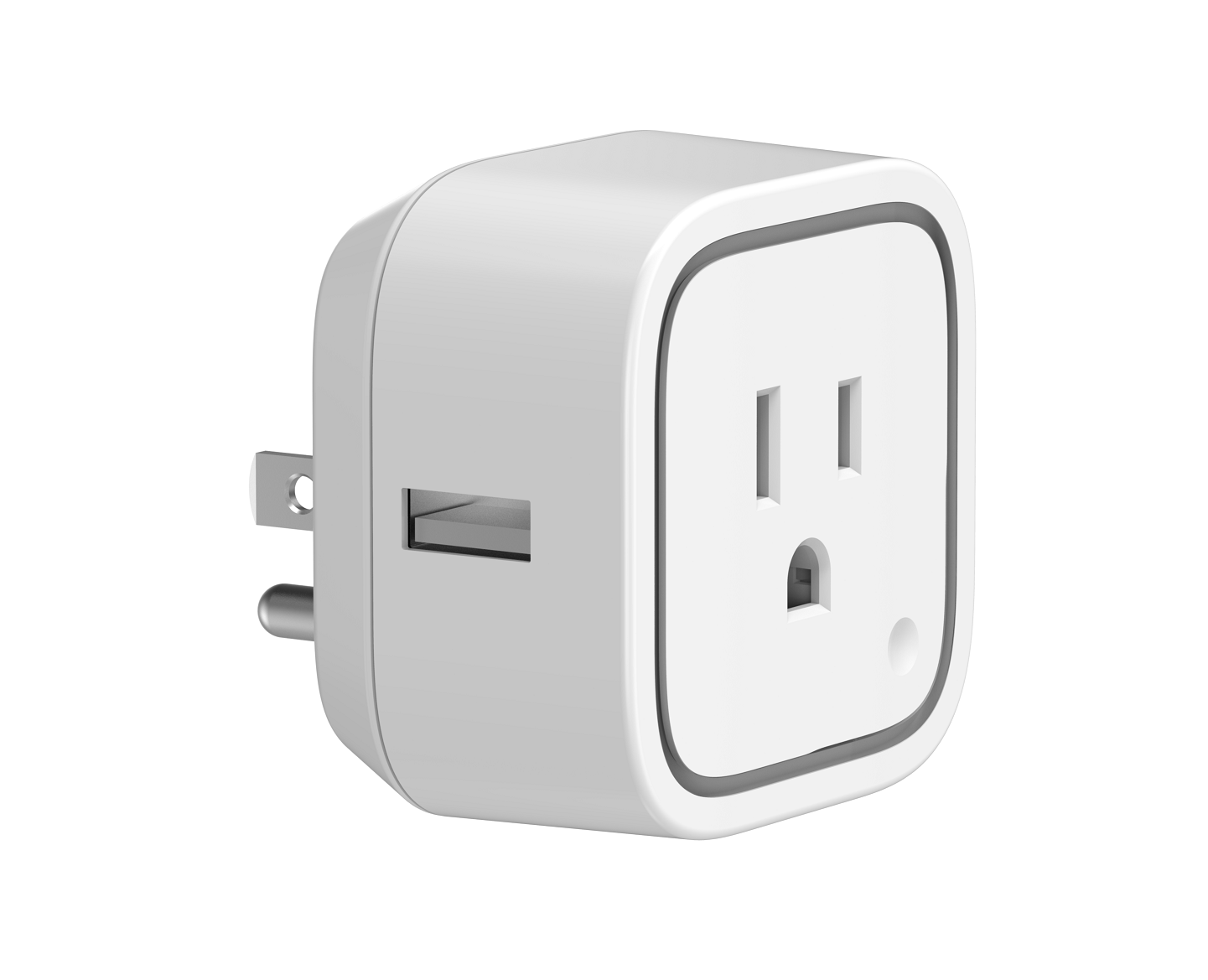

Name	Smart Dimmer 6
Short Description	Smart Dimmer 6 is a plug-in on/off/dim switch module that also provides energy metering.
Long Description	Aeotec Smart Dimmer 6 is a low-cost Z-Wave Dimmer plug-in module specifically used to enable Z-Wave command and control (on/off/dim) of any plug-in tool. It can report immediate wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memory retains all programmed information relating to the unit’s operating status. Its surface has a Smart RGB LED, which can be used for indicating the output load status or strength of the wireless signal. You can configure its indication colour according to your favour. The Smart Dimmer 6 is also a security Z-Wave device and supports Over The Air (OTA) feature for the products firmware upgrade.
Brand	Aeotec
Product Identifier	ZW099-A02
OEM Version	HW: 99 FW: 1.11
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0103
Product ID	0x0063
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Energy Meters, All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Aeon Labs Smart Dimmer 6 manual.pdf
Features	Feature Values Switch Load Capacity Current Value 2.5A Z-Wave Scene Type Value Scene Firmware Updatable Value Updatable by Consumer by RF Color Value White Electric Load Type Value Incandescent Dimmable LED Supported Meter Type Value Electric Energy
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline The Basic Report CC and Hail CC (configured by parameter 80) can be sent to this association group. 2 5 0 The Basic Set and Switch Multilevel CC will be sent to the associated nodes in this group when the Smart Dimmer 6 receives the Basic Set or Switch Multilevel CC from the main controller.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 91 Minimum change in wattage (in terms of wattage) to induce a Meter Report The value here represents minimum change in wattage (in terms of wattage) to induce a Meter Report. 0 2 0 0 25 From To Description 0 60000 The available range is 0 to 60000 92 Minimum change in wattage percent (in terms of percentage) to induce a Meter Report The value here represents minimum change in wattage percent (in terms of percentage) to induce a Meter Report. 0 1 0 0 0 From To Description 0 100 The available range is 0 to 100% 100 Set 101-103 to default. Set 101-103 to default value. 0 1 0 0 0 From To Description 1 1 Set 101-103 to default value. 101 To set which report needs to be sent in Report group 1 To set which report needs to be sent in Report group 1 0 4 0 0 0 From To Description 1 1 Send Meter Report for Voltage 2 2 Send Meter Report for Current 4 4 Send Meter Report for Watt 8 8 Send Meter Report for kWh 102 To set which report needs to be sent in Report group 2 To set which report needs to be sent in Report group 2 0 4 0 0 0 From To Description 1 1 Send Meter Report for Voltage 2 2 Send Meter Report for Current 4 4 Send Meter Report for Watt 8 8 Send Meter Report for kWh 103 To set which report needs to be sent in Report group 3 To set which report needs to be sent in Report group 3 0 4 0 0 0 From To Description 1 1 Send Meter Report for Voltage 2 2 Send Meter Report for Current 4 4 Send Meter Report for Watt 8 8 Send Meter Report for kWh 2 Make Dimmer blink This parameter is used to set the Smart Dimmer to start the blinking state. 0 2 0 0 3850 From To Description 1 255 Specify the cycle of On/Off. 256 32512 Specify the time of Dimmer blinking. 110 Set 111-113 to default. Set 111-113 to default. 0 1 0 0 0 From To Description 1 1 Set 111-113 to default. 111 The time interval of sending Report group 1 The time interval of sending Report group 1 0 4 0 0 3 From To Description 1 2147483647 the available range is 1 to 2147483647 seconds 112 The time interval of sending Report group 2 The time interval of sending Report group 2 0 4 0 0 600 From To Description 1 2147483647 the available range is 1 to 2147483647 seconds 113 The time interval of sending Report group 3 The time interval of sending Report group 3 0 4 0 0 600 From To Description 1 2147483647 the available range is 1 to 2147483647 seconds 200 Partner ID Set the Partner ID 0 1 0 0 0 From To Description 0 0 Aeon Labs Standard Product 1 255 Others 252 Enable/disable the Configuration parameters to be Locked. Enable/disable the Configuration parameters to be Locked. 0 1 0 0 0 From To Description 1 1 Enable 0 0 Disable 254 Device Tag Set the Device tag for Smart Dimmer 6 0 2 0 0 0 From To Description 1 32767 The available range is 1 to 32767. 3 Current overload protection When this parameter is enabled, the output Load will be turned off automatically when the Current overrun 2.6A and the time more than 2 minutes. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 80 To set which notification report can be sent to associated Nodes in association Group 1 To set which notification report can be sent to associated Nodes in association Group 1 when the state of Smart Dimmer’s load is changed 0 1 0 0 0 From To Description 3 3 Send Hail CC when using Action Button to change the output load state. 0 0 Send Nothing 1 1 Send Hail CC 2 2 Send Basic Report CC 81 Configure the state of LED Configure the state of LED when it is in Energy mode, Momentary indicate mode or N ight light mode. 0 1 0 0 0 From To Description 0 0 Energy mode, the LED will follow the status (on/off) of its load 1 1 Momentary indicate mode, when the state of Dimmer’s load changed, The LED will follow the status (on/off) of its load, but the LED will turn off after 5 seconds if there is no any switch action. 2 2 Night light mode. 83 Configure the RGB value when it is in Night light mode. Configure the RGB value when it is in Night light mode. 0 4 0 0 1774619 From To Description 65536 16711680 Red color value 1 255 Blue color value 256 65280 Green color value 255 Reset the Smart Dimmer 6 Reset the Smart Dimmer 6 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default setting 1431655765 1431655765 Reset Smart Dimmer 6 to factory default setting and exclude from the network 84 Configure the brightness level of RGB LED (0%-100%) when it is in Energy Mode/momentary indicate mode. Configure the brightness level of RGB LED (0%-99%) when it is in Energy Mode/momentary indicate mode. 0 4 0 0 3289650 From To Description 0 99 The brightness level of Green color 256 355 The brightness level of Yellow color 65536 65635 The brightness level of Red color 90 Enable or disable the parameter 91 and 92 Enable or disable the parameter 91 and 92. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable
Texts	ID Description Value 6 Additional Special Features 1, Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 2, Its surface has a Smart RGB LED, which can be used for indicating the output load status. 5 Factory Reset Press and hold the Action button that you can find on the product's housing for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Action button that you can find on the product's housing. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Action button that you can find on the product's housing.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
