| Product Recognition | |
|---|
| Certification Number | ZC10-16010003 |
|---|

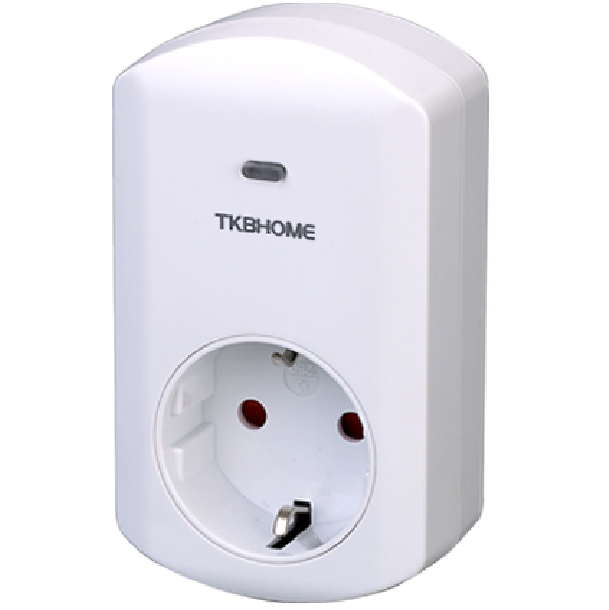

| Name | Smart dimmer plug in switch |
|---|
| Short Description | This dimmer socket is mainly for remote on/off or dim control of the connected load, and act as repeater to enlarge the signal |
|---|
| Long Description | This smart dimmer plug in switch in a transceiver which is a Z-Wave enabled device and is fully compatible with any Z-Wave enabled network. Z-Wave enabled devices displaying the Z-Wave logo can also be use with it regardless of the manufacturer. And ours can also be used in other manufacturer's Z-Wave enabled networks. Remote on/off and dimming control of the connected load is possible with other manufacturer's wireless controller. Each switch is degined to act as a repeater. Repeaters will re-transmit the RF signal to ensure the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. |
|---|
| Brand | TKB Home |
|---|
| Product Identifier | TZ67G |
|---|
| OEM Version | 01 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Light Dimmer Switch |
|---|
| Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
| Manufacturer ID | 0x0118 |
|---|
| Product Type ID | 0x0003 |
|---|
| Product ID | 0x0008 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
| Countries / Regions | European Union |
|---|
| Documents | |
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | This dimmer plug in switch can be asscoiated by 5 devices |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 1 | Inclusion | 1. have your Z-Wave controller enter into Inclusion mode
2. press the dimmer socket button three times within 1.5 seconds | | 2 | Exclusion | 1. have your Z-Wave controller enter into Exclusion mode
2. press the dimmer socket button three times within 1.5 seconds | | 5 | Factory Reset | 1. Press your dimmer socket button four times within 1.5 seconds
2. the fourth time press and hold on the socket button for 5 seconds until socket LED button off
3. Use the ""RESET"" procedure only in the event that the network primary controller is missing or otherwise inoperable |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
