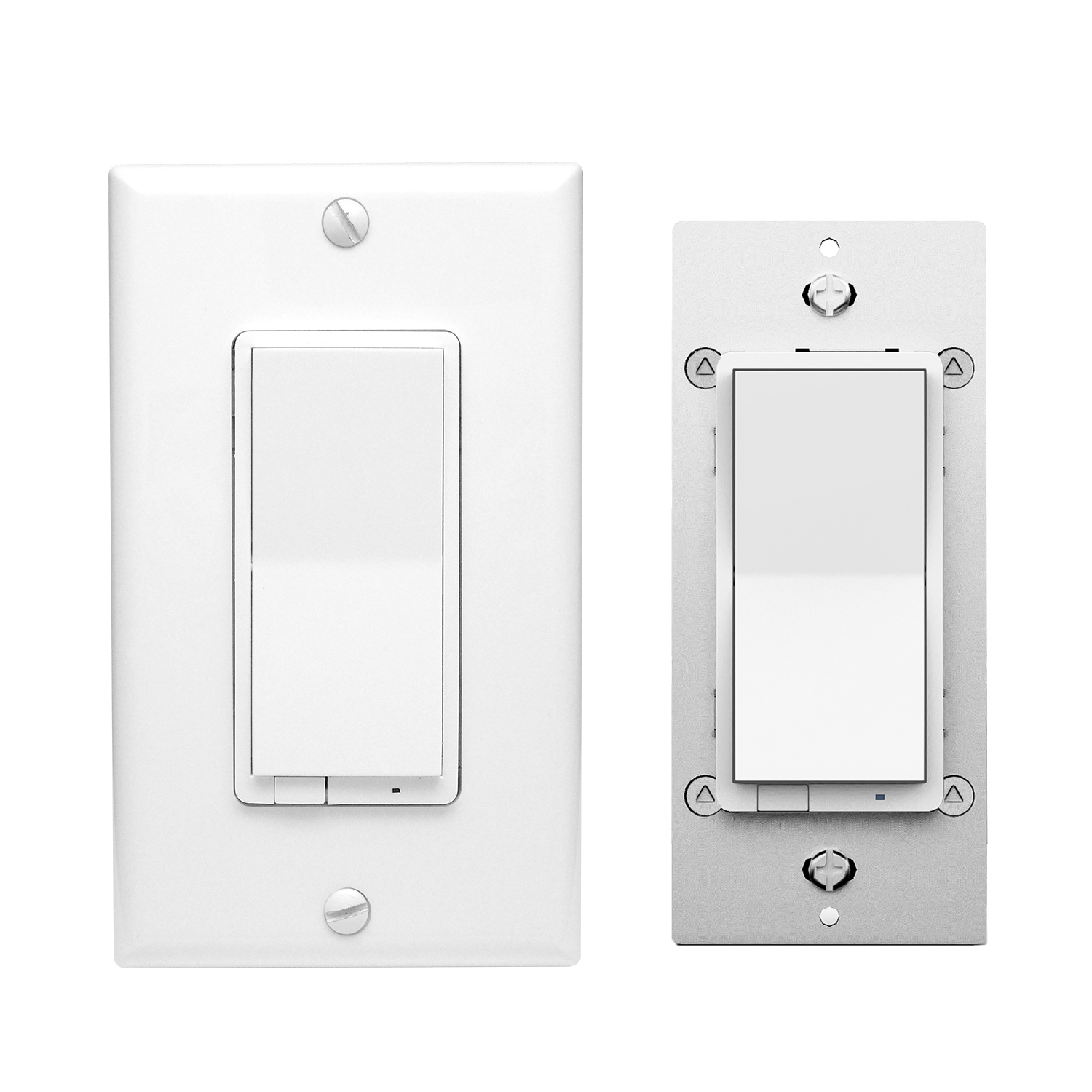

Smart Dimmer Switch

Short Description

This light switch features: - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller)

Long Description

This light switch features: - Manual or remote on/off control and dimming from your mobile device or computer (when included to a Z-Wave gateway controller) - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Works with most high-quality DIMMABLE LED, CFL, and incandescent bulbs - Based on universal command classes - supported by most Z-Wave controllers - May be associated and grouped with other Z-Wave devices for advanced home automation - LED indicator to help locate the switch in dark space - Simple elegant design with screwless snap-on wall plate included - Built-in Z-Wave signal repeater for a stronger and more reliable network Z-Wave Signal Frequency: 908.42 MHz Power: 120 VAC, 60 Hz Maximum Loads: 600W Single-gang, 500W Double-gang, 400W Triple-gang Incandescent, 150W CFL or LED Minimum Load: 20W for LED and CFL bulbs Range: Up to 100 feet line of sight Operating Temperature: 32-104° F (0-40° C) Installation and Use: Indoor only

Brand

Minoston

Product Identifier

MS11ZS

Product Line

Line A

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZGM130

Z-Wave Version

7.13.6

Library Type

SLAVE_ENHANCED_232

Device Type

Multilevel Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0312

Product Type ID

0x0004

Product ID

0xEE02

User Icon

0x0604

Installer Icon

0x0600

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices, Lighting Accessories

Countries / Regions

United States of America

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

LED Indicator

Parameter=2，Size=1，Value=0 On when Off and Off when On Value=1 On when On and Off when Off Value=2 Always Off Value=3 Always On Default =0

From	To	Description
0	0	On when Off and Off when On
1	1	On when On and Off when Off
2	2	Always OFF
3	3	Always ON

Auto Turn-Off Timer

Auto Turn-Off Timer--- Values: 0 – 65535 (minutes)

65535

From	To	Description
0	65535	Auto Turn-Off Timer

Auto Turn-On Timer

65535

From	To	Description
0	65535	Auto Turn-On this Timer

Restores state after power failure

Restores state after power failure Parameter=8，Size=1，Value=0 output off Value=1 output on Value=2 out put the state after power Default =2

From	To	Description
0	0	Output OFF
1	1	Output ON
2	2	out put the state after power

Ramp rate

Ramp rate（Local Button + Z-Wave）> change to local and Z-Wave like in the latest ZEN30 firmware, also applies to any multilevel changes (so there should be soft transition between 20 and 80% brightness if changed from the hub for example) Parameter=9，Size=1, Value=1 from 0x63 to 0x00 or from 0x00 to 0x63 need 1s Value=2 from 0x63 to 0x00 or from 0x00 to 0x63 need 2s . . Value=99 from 0x63 to 0x00 or from 0x00 to 0x63 need 99s Default = 1

From	To	Description
1	99	from 0x63 to 0x00 or from 0x00 to 0x63 need this value

Multilevel minimum value can be set

Multilevel minimum value can be set（Local Button）> this should apply to both for local or Z-Wave operation Parameter=10，Size=1，Value=0 disable Value=1 . . Value=99 Default = 1

From	To	Description
0	99	Multilevel minimum value

Multilevel maximum value can be set

Multilevel maximum value can be set（Local Button）> this should apply to both for local or Z-Wave operation Parameter=11，Size=1，Value=0 disable Value=1 . . Value=100 - NOT ACCEPTED BY HUB Default = 99

100

From	To	Description
0	100	Multilevel maximum value can be set

Single Tap Behavior

Single Tap Behavior: when switch is off and press UPPER paddle 1 time, switch turns on to x brightness （Local Button） Parameter=25，Size=1， Value = 0 last brightness level Value = 1 custom value set in parameter 18 Value = 2 maximum brightness set in parameter 11 Value = 3 full 100% brightness Default = 0

From	To	Description
0	0	last brightness level
1	1	custom value set in parameter 18
2	2	maximum brightness set in parameter 11
3	3	full 100% brightness

Locally Button function

Parameter=1，Size=1，Value=0 Up Button: On Down Button: Off Value=1 Up Button: Off Down Button: On Value=2 Up Button: On/Off Down Button: On/Off Default = 0

From	To	Description
0	0	Up Button ON,Down Button OFF
1	1	Up Button OFF,Down Button ON
2	2	Up Button ON/OFF,Down Button ON/OFF

LED Indicator Brightness

LED Indicator Brightness Parameter=24，Size=1，Value=0 Bright (100%) Value=1 Medium (60%) Value=2 Low (30%) Default =1

From	To	Description
0	0	Bright (100%)
1	1	Medium (60%)
2	2	Low (30%)

LED Indicator Color

LED Indicator Color Parameter=23，Size=1，Value=0 White Value=1 Blue Value=2 Green Value=3 Red Default = 1

From	To	Description
0	0	White
1	1	Blue
2	2	Green
3	3	Red
