Product Recognition
Certification Number	ZC14-25090550

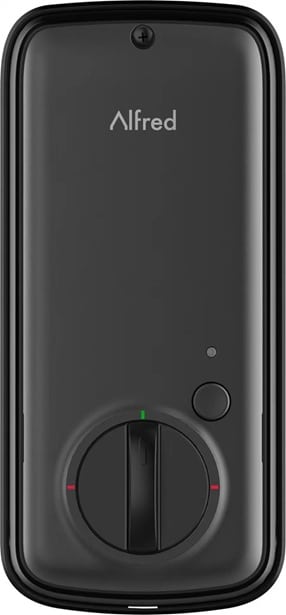

Name	Smart Door Lock
Short Description	Z-Wave Controlled Smart Door Lock.
Description	This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature. This product can be operated in any Z-Wave network with other Z- Wave Certified products from other manufacturers. This product supports the Over The Air (OTA) feature for the product's firmware upgrade.
Brand	Alfred
Brand Owner	Alfred International Inc.
Identifier	DB1 Pro
Product Line	Z-Wave Plus v2 Devices
Product URL	https://alfredlocks.com/
OEM Version	HW: 05 FW: 01.01:42.123:42.122
Hardware Platform	EFR32ZG23A
Z-Wave Version	7.18.8
Library Type	END_NODE_ENHANCED_232
Device Type	Lock DT
Role Type	ROLE_TYPE_END_NODE_SLEEPING_LISTENING
Manufacturer ID	0x0465
Product Type ID	0x0103
Product ID	0x0005
User Icon	0x0300
Installer Icon	0x0300
Radio Range Z-Wave (m)	40
Radio Range Z-Wave LR (m)	400
Frequency Plans	US: 916.00MHz, 908.40MHz, ANZ: 919.80MHz, 921.40MHz, CN: 868.40MHz, EU: 869.85MHz, 868.40MHz, HK: 919.80MHz, 919.80MHz, IL: 916.00MHz, IN: 865.20MHz, RU: 869.00MHz, JP: 922.50MHz, 923.90MHz, 926.30MHz, KR: 920.90MHz, 921.70MHz, 923.10MHz, US_LR: 912.00MHz, 920.00MHz
Categories	Locks
Countries / Regions	Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America, Australia, Brazil, Chile, El Salvador, Indonesia, Malaysia, New Zealand, Paraguay, Peru, Uruguay, Venezuela, Vietnam, China, Morocco, Armenia, Bahrain, European Union, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen, Hong Kong, Israel, India, Russian Federation, Costa Rica, Japan, Macao, Singapore, Republic of Korea, Taiwan, Thailand
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_DOOR_LOCK_V4 Door Lock V4 0x62 4 COMMAND_CLASS_DOOR_LOCK_LOGGING Door Lock Logging 0x4C 1 COMMAND_CLASS_LANGUAGE Language 0x89 1 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_SCHEDULE_V4 Schedule V4 0x53 4 COMMAND_CLASS_USER_CODE_V2 User Code V2 0x63 2 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_TIME_V2 Time V2 0x8A 2 COMMAND_CLASS_TIME_PARAMETERS Time Parameters 0x8B 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY Security 0 0x98 1 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1
S2 Classes	S2_ACCESS_CONTROL
Documents	Category File Manual_English DB1proProgrammingInstructionsEN-FRV1.00529.pdf Adv_Manual AdvancedInformationProductManualV1.0_3.pdf
Features	Feature Values Battery Quantity Value 4 Battery Type Value AA alkaline battery Door Lock Type Value Deadbolt Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 5 0 Lifeline 0x0001 2 5 0 On/Off control 0x2000
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value 1 Configure volume level Configure volume level 2 1 0 0 0x01 2 Configure led Enable/disable led 2 1 0 0 0x01 3 Timed battery report Configure timed battery report 1 2 0 0 0x05A0 4 Association Group 2 Settings Configure the Basic Set value 2 1 0 0 0x01
Texts	ID Description Value 8 Where to find S2 DSK on product You can find the QR code when you open the battery box You may also find the QR Code and DSK on individual package of each product. Please do not remove or damage them. 1 Classic Inclusion 1) Enter master mode (** + Master PIN Code + √) 2) Input "8" to enter "function extension settings" 3) Input "1" to enter "Include mode" 2 Classic Exclusion 1) Enter master mode (** + Master PIN Code + √) 2) Input "8" to enter "function extension settings" 3) Input "2" to enter "Exclusion mode" 5 Factory Reset Procedure 1. Operations on lock 1) Open the door and keep the lock in "unlock" status. 2) Open battery box and find the reset button. 3) Use a sharp thing to press and hold the reset button 4) Keep holding the reset button and remove the battery from battery box then replace it. 5) Keep holding the reset button down until you hear the lock beep (Can take up to 10 seconds). 2. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Supported Notification Types	Notification Type Event / State Access Control Manual lock operation Access Control Manual unlock operation Access Control RF lock operation Access Control RF unlock operation Access Control Keypad lock operation Access Control Keypad unlock operation Access Control Auto lock locked operation Access Control Lock state: Lock jammed Access Control All user codes deleted Access Control Single user code deleted Access Control New user code added Access Control New user code not added due to duplicate code Access Control New program code entered : unique code for lock configuration Access Control Door state: Window/door is open Access Control Door state: Window/door is closed Access Control Keypad state: Keypad temporary disabled
Supports NWI	Yes
Supports Explorer Frames	Yes
Is Flirs	Yes
Supports SmartStart	Yes
