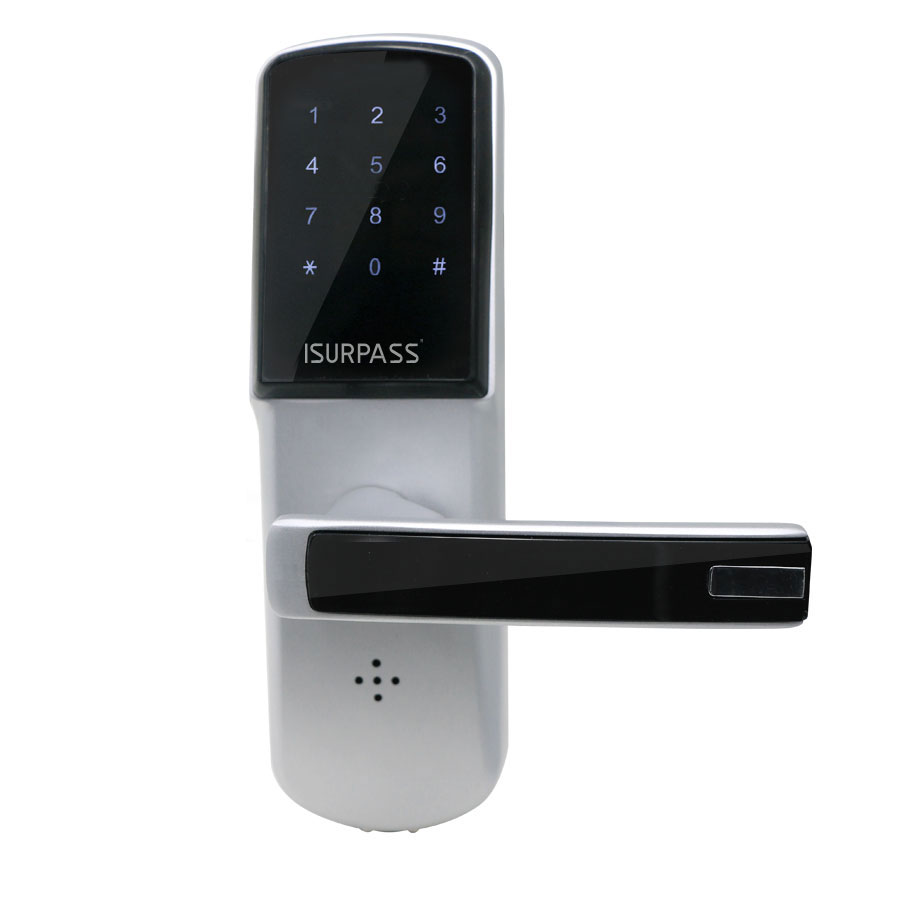

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta-Data V4

0x7A

4

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_USER_CODE

User Code

0x63

1

COMMAND_CLASS_DOOR_LOCK_V2

Door Lock V2

0x62

2

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi-Channel Association V3

0x8E

3

COMMAND_CLASS_BATTERY

Battery

0x80

1

COMMAND_CLASS_TIME_PARAMETERS

Time Parameters

0x8B

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_VERSION_V3

Version V3

0x86

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product or Owner's Manual

Door Lock Type

Battery Type

Battery Quantity

1

5

0

iLock15 support one association grouping. Grouping identifier: 1 Maximum number of devices that can be added to the group:5 Lifeline association group command: Door Lock Operation Report, Battery Report, Device Reset Locally_Notification. After controller send ASSOCIATION_SET command with right parameter, the function will be enable: If user unlock with user code, device associted with iLock15, will receive a Door Lock Operation Report. If Battery is in low level, when user wake up doorlock(via touch keypad) ,iLock15 will send Battery Report. If user reset device(see Factory Default Reset ),iLock15 will send Device Reset Locally_Notification.

2

Exclusion

1）Set gateway in exclusion . 2）Set door lock in learn mode. press reset button -> input admin password + # -> press 0 3）Wait until success.

1

Inclusion

1）Set gateway in Inclusion. 2）Set door lock in learn mode. press reset button -> input admin password + # -> press 0 3）Wait until success.

5

Factory Reset

User should reset device for safety when receiving lock first or if forget the password or if lost card. The reset way : hold the reset button about 7s, when hear “Di“ sound, then release the button, door lock will be reset. Factory default reset will reset all user (password and card) and home ID and device ID (about Z-Wave function), so be carefully to do reset. The default admin password is 123456 . Please use this procedure only when the network primary controller is missing or otherwise inoperable.
