| Product Recognition | |
|---|
| Certification Number | ZC10-16055091 |
|---|

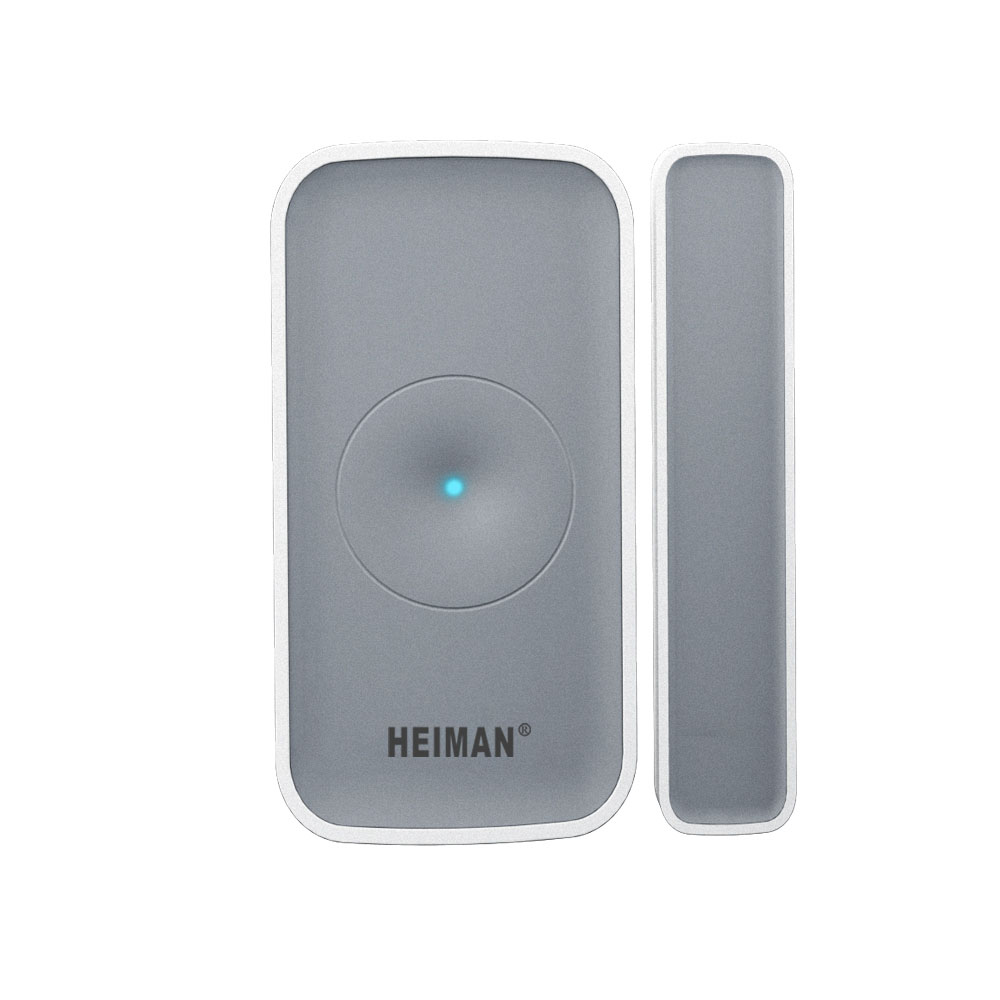

| Name | Smart Door Sensor |
|---|
| Short Description | Smart Door Sensor detects the open-close state of doors and windows, then send the information to gateway. |
|---|
| Long Description | Smart Door Sensor can detect the open-close state of doors and windows, when people leave home. Once the smart door sensor detects the door is opened, it will send the information of door opened to users mobile phone immediately. User can know if their houses are intruded, no matter where they are. With 2 AA batteries, the battery life is more than 1 year. It is also very easy to install, user should only paste the smart door sensor on the door and door frame. |
|---|
| Brand | HEIMAN |
|---|
| Product Identifier | HS1DS-Z |
|---|
| OEM Version | HW: 255 FW: 1.25 |
|---|
| Hardware Platform | ZM5202 |
|---|
| Z-Wave Version | 6.51.06 |
|---|
| Library Type | SLAVE_ROUTING |
|---|
| Device Type | Notification Sensor |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
| Manufacturer ID | 0x0260 |
|---|
| Product Type ID | 0x0168 |
|---|
| Product ID | 0x0168 |
|---|
| User Icon | 0C06 |
|---|
| Installer Icon | 0C06 |
|---|
| Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
| Categories | Sensors |
|---|
| Countries / Regions | European Union |
|---|
| Documents | | Category | Description | File |
|---|
| Manual_Primary_Lang | Product or Owner's Manual | HSIDS-Z.pdf |
|
|---|
| Features | | Feature | Values |
|---|
| Battery Quantity | | | Battery Type | | | Color | | | Firmware Updatable | | | IP (Ingress Protection) Rated | | | Outdoor Use | | | Sensors | | Value |
|---|
| Open/Closed (Binary) |
|
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Lifeline association group
Include command classe: Battery report, Notification report, and Device Reset Locally notification, Binary report. | | 2 | 5 | 0 | Root Device group(Binary Sensor)
Binary Sensor Command Class:Compatible with 300 series
1-Binary Sensor reports status of open or close door via Lifeline.
2-When the sensor detects status change between close door and open door, the device will be triggered. | | 4 | 5 | 0 | Root Device group(Notification)
1-Notification report open door or close status via Lifeline.
2- When the sensor detects status change between close door and open door, the device will be triggered. | | 5 | 5 | 0 | Root Device group(Notification)
1-Binary Sensor reports the removed status of door sensor.
2- When the sensor detects status change of tamper, the device will be triggered. | | 3 | 5 | 0 | Root Device group(Binary Sensor)
Binary Sensor Command Class:Compatible with 300 series
1-Binary Sensor reports the removed status of door sensor.
2-When the sensor detects status change of tamper, the device will be triggered. |
|
|---|
| Texts | | ID | Description | Value |
|---|
| 2 | Exclusion | Click [Remove] icon in Z-Wave PC Controller Program
- Press a Func_Button 3 times quickly in HS1DS-Z
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off in HS1DS-Z | | 1 | Inclusion | - Click [Add] icon in Z-Wave PC Controller Program
- Press a Func_Button 3 time in HS1DS-Z (Door Sensor), Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. | | 5 | Factory Reset | Long press Func_Button while installing batteries in HS1DS-Z
- Device Reset Locally notification is Transmitted
- Please use the reset procedure only when the primary controller is missing or inoperable | | 4 | Device Wake-Up | - Wake up Notification is transmitted every 24 hours by default.
- Wake up Notification is transmitted after Notification Report is Transmitted |
|
|---|
| Supported Multilevel Sensors | | Multilevel Sensor Type |
|---|
| 0x02 |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
