Product Recognition | |
|---|
Certification Number | ZC10-18106248 |
|---|

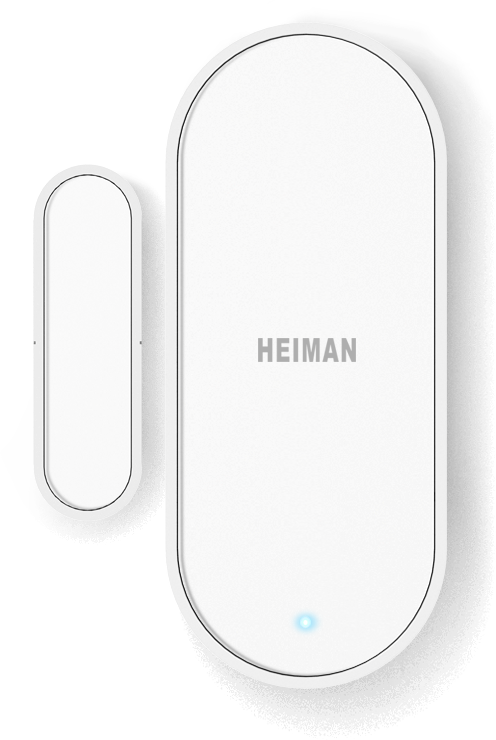

Name | Smart Door Sensor |
|---|
Short Description | The smart door sensor adopts Z-Wave protocol, it can detect the open or close state of door or window. when the door sensor is armed, when the door or window is opened, it will send alarm notifications to gateway immediately. |
|---|
Long Description | The smart door sensor adopts Z-Wave protocol, it can detect the open or close state of door or window. when the door sensor is armed, when the door or window is opened, it will send alarm notifications to gateway immediately. |
|---|
Brand | HEIMAN |
|---|
Product Identifier | HS3DS-Z |
|---|
OEM Version | HW: 255 FW: 3.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0260 |
|---|
Product Type ID | 0x0168 |
|---|
Product ID | 0x0168 |
|---|
User Icon | 0x0C06 |
|---|
Installer Icon | 0x0C06 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Security Add-Ons |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Communications Protocol | | Supported Notification Types | Value |
|---|
Access Control | Home Security | Emergency Alarm | Irrigation |
| Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Lifeline association group | 2 | 5 | 0 | Root Device group(Basic set) |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Click [Add] icon in Z-Wave Controller .
- Press the Networking_Button 3 times within 1.5s, Green LED is Blinking 4 times within 1 second.
- If Inclusion Process is successful, Green led will turn off. | 2 | Exclusion | - Click [Remove] icon in Z-Wave Controller
- Press the Networking_Button 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6 times, then turn off. | 5 | Factory Reset | Long press Networking_Button while installing batteries in the Device
-Device Reset Locally notification is Transmitted
-Green LED Turns off after 2 seconds.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Access Control | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle | Emergency Alarm | (Refer to parameters): State idle | Irrigation | (Refer to parameters): State idle |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
