Product Recognition | |
|---|
Certification Number | ZC14-22120173 |
|---|

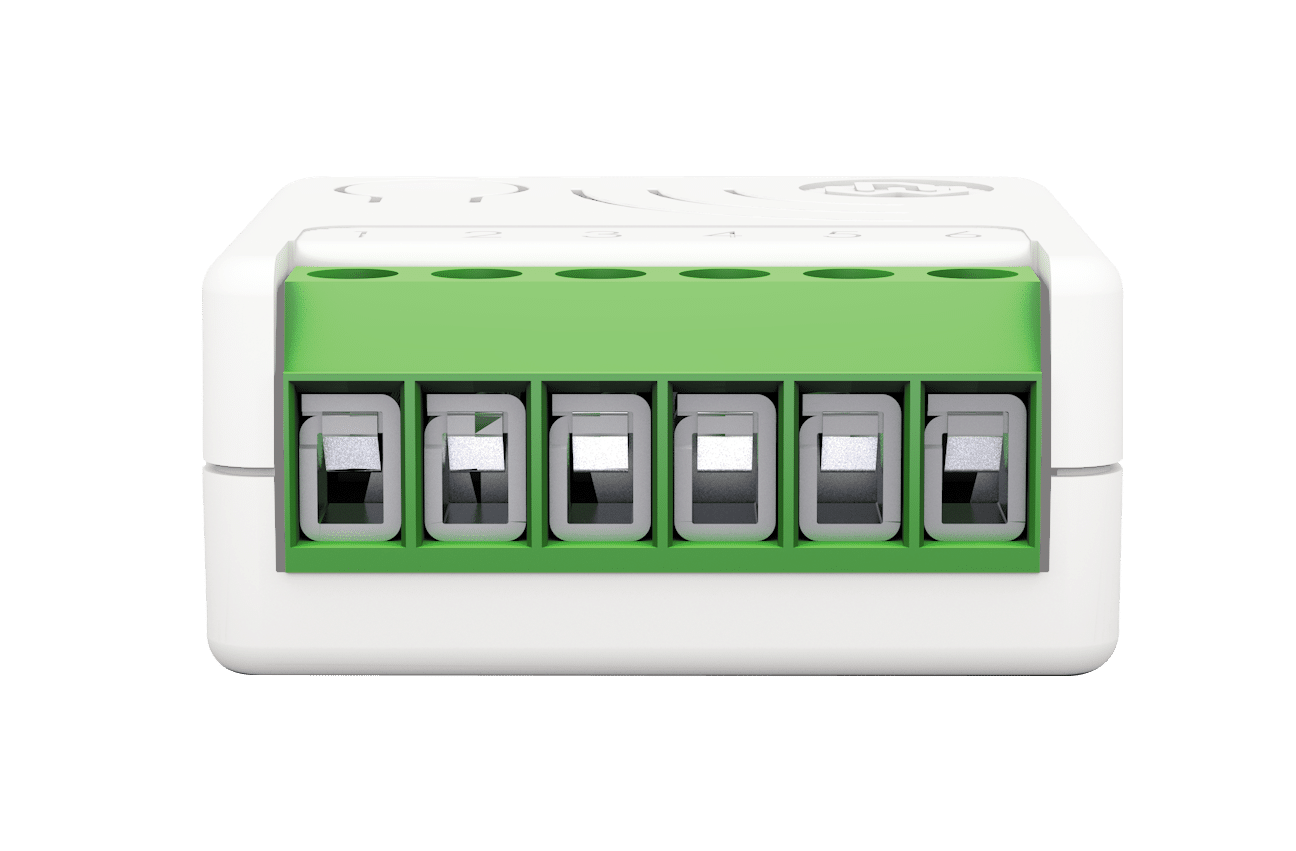

Name | Smart Double Switch N 7 |
|---|
Short Description | Smart Double Switch 7 is an ON/OFF control device designed to independently control two separate loads, suited for being controlled by both remote and local switches. |
|---|
Long Description | An ON/OFF control device designed to independently control two separate loads, suited for being controlled by both remote and local switches.
It is very easy to install and works with both momentary and toggle switch.
New Z-Wave™ serie 700, SmartStart and S2 security.
The device is equipped with contact protection technology (Zero Crossing).
Works with both momentary and toggle switches.
The unique feature Offline Setup Mode allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave™ Network. When the device will be included in the network all these configuration parameters will be maintained.
Smart Double Switch 7 is equipped with a very precise power metering functionality, therefore you can easily monitor the instantaneous power and cumulated energy for each channel.
The device supports Central Scene Notification, and the events that trigger the Report can be customized with the configuration parameters.
As a constantly powered node, the device will act as repeater in order to increase the reliability of the network.
This device is a security enabled Z-Wave Plus™ product
The system supports over-the-air firmware updates that do not require the device to be removed from its location.
The system includes an RGB LED indicator that shows the device’s status during installation
Power supply: 110 – 230 VAC±10% 50/60 Hz >24 VDC
Maximum load: Resistive Loads: 8 A for each channel; 10A for both channels
Temperature Limitation: 105°C
Work Temperature: -10° to 40°C
Maximum distance: Up to 100 m outdoors – up to 40 m indoor
Dimensions: 37x37x17 mm
Consumption: <1 Watt |
|---|
Brand | widom |
|---|
Product Identifier | WDSN700 |
|---|
Product Line | Z-Wave 700 |
|---|
OEM Version | HW: 01 FW: 02.01 |
|---|
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
|---|
Z-Wave Version | 7.16.3 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Binary Switch DT |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0149 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0005 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | On/Off Switches/Devices |
|---|
Countries / Regions | Algeria, Armenia, Bahrain, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, European Union, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SWITCH_BINARY_V2 | Binary Switch V2 | 0x25 | 2 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_METER_V5 | Meter V5 | 0x32 | 5 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi Channel V4 | 0x60 | 4 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Only updated in Associations page 10, from Lifeline group to Lifeline Group as requested. | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
2 | 8 | 0 | Follow ch1 state | 0x2000 | 1 | 8 | 0 | Lifeline | 0x0001 | 3 | 8 | 0 | clicks on button 1 G1 | 0x200d | 4 | 8 | 0 | clicks on button 1 G2 | 0x200E | 5 | 8 | 0 | Follow ch2 state | 0x2000 | 6 | 8 | 0 | clicks on button 2 G1 | 0x2017 | 7 | 8 | 0 | clicks on button 2 G2 | 0x2018 | 1 | 0 | 1 | Lifeline | 0x0001 | 2 | 8 | 1 | Follow ch1 state | 0x2000 | 3 | 8 | 1 | clicks on button 1 G1 | 0x200d | 4 | 8 | 1 | clicks on button 1 G2 | 0x200e | 1 | 0 | 2 | Lifeline | 0x0001 | 2 | 8 | 2 | Follow ch2 state | 0x2000 | 3 | 8 | 2 | clicks on button 2 G1 | 0x2017 | 4 | 8 | 2 | clicks on button 2 G2 | 0x2018 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | IN1_TYPE | Define the input 1 type. (1: button, 2: toggle switch, 0: no switch input) | 2 | 1 | 0 | 0 | 0x01 | 2 | IN2_TYPE | Define the input 2 type. (1: button, 2: toggle switch, 0: no switch input) | 2 | 1 | 0 | 0 | 0x01 | 10 | IN1_TOGGLE | Define which events on the input 1 toggle output 1. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x0f | 11 | IN1_ON_EXCLUSION | Define which input 1 event do not switchOn output 1. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x00 | 17 | IN2_OFF_EXCLUSION | Define which input 2 event do not witchOff output 2. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x00 | 23 | STARTUP_OUT1 | Define the output level on startup (0: OFF, 1: ON, 2: Previous status, 3: equal to input) | 2 | 1 | 0 | 0 | 0x02 | 24 | STARTUP_OUT2 | Define the output level on startup (0: OFF, 1: ON, 2: Previous status, 3: equal to input) | 2 | 1 | 0 | 0 | 0x02 | 25 | LOCAL_SCENE | Define the Local scene configuration. (0: independent channel, 1: never both on, 2: sequencing) | 2 | 1 | 0 | 0 | 0x00 | 31 | OFF_EP1_TIMEOUT | Time in tenth of second after which the output on EP1 will be switched Off. | 1 | 4 | 0 | 0 | 0x00000000 | 41 | G2_EP1_SETUP | Input 1 events that control EP1-G2 association group. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x02 | 42 | G1_EP2_SETUP | Input 2 events that control EP2-G1 association group. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x01 | 43 | G2_EP2_SETUP | Input 2 events that control EP2-G2 association group. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x02 | 44 | G1_EP1_ASS_VALUE | Value used to control EP1-G1 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) | 1 | 1 | 0 | 0 | 0x65 | 45 | G2_EP1_ASS_VALUE | Value used to control EP1-G2 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) | 1 | 1 | 0 | 0 | 0x65 | 46 | G1_EP2_ASS_VALUE | Value used to control EP2-G1 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) | 1 | 1 | 0 | 0 | 0x65 | 47 | G2_EP2_ASS_VALUE | Value used to control EP2-G2 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) | 1 | 1 | 0 | 0 | 0x65 | 70 | E_REPORT_DELAY | Time in minutes after which the next Energy report will be sent. | 1 | 1 | 0 | 0 | 0x0a | 71 | W_REPORT_DELAY | Time in minutes after which the next Power report will be sent. | 1 | 1 | 0 | 0 | 0x0a | 75 | W_ISTANT_REPORT | The percentage change from the last sent report that trigger an new Power report. | 1 | 1 | 0 | 0 | 0x1e | 60 | SCENE_SETUP | Define event sent by central scene notification. (0:none, 1:1 click , 2:2 clicks, 4:3 clicks, 8: Hold down, 16: Up) | 3 | 1 | 0 | 0 | 0x1F |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Page 7 - The SmartStart QR and the full DSK string code can be found on the back of the device. The PIN is the first group of 5 digits printed underlined. If you plan to use the DSK, it is important that you take a picture of the label and keep it in a safe place. | 1 | Classic Inclusion | All Smart Serie 7 devices are compatible with all Z-Wave™/Z-Wave Plus™ certified controllers. The devices support both the Network Wide Inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Normal Inclusion.
By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds.
Only a controller can add the device into the network. After activating the inclusion function by the controller, the device can be added by setting it in Learn Mode. | 2 | Classic Exclusion | Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learn Mode.
The procedure of exclusion can be activated by Removing a node from the Z-Wave™ network and executing 1 or 3 click on the integrated button; as soon as the exclusion initiates, the LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK. | 5 | Factory Reset Procedure | Reset to the factory settings
The device can be reset to the original factory settings with 6 consecutive clicks on the integrated button.
After the reset is completed, the device will reboot and a RED solid led is showed.
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
INFO: If the reset is performed while the device is still part of a network, it notifies the other devices that it has been removed (Device Reset Locally Notification). | 6 | Other Special Features | Timer Management
An independent timer for each channel can be set when switching On and/or Off. It also possible to define which event will start the timer (for example only the change on the output due to double clicks).
Power consumption management
Smart Double Switch 7 is equipped with a very precise power metering functionality, therefore you can easily monitor the instantaneous power and cumulated energy for each channel.
Offline setup Mode
The device has a unique feature that allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave™ Network. When the device will be included in the network all these configuration parameters will be maintained.
Central Scene Notification
Supports Central Scene Notification all the events described in the table will be notified with a Central Scene Notification Report to the Lifeline. The events that trigger a Central Scene Notification Report can be customized with the configuration parameter in the Central Scene Notification Parameter section. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type |
|---|
Electric meter | Import (consumed) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
