Product Recognition
Certification Number	ZC14-22050106

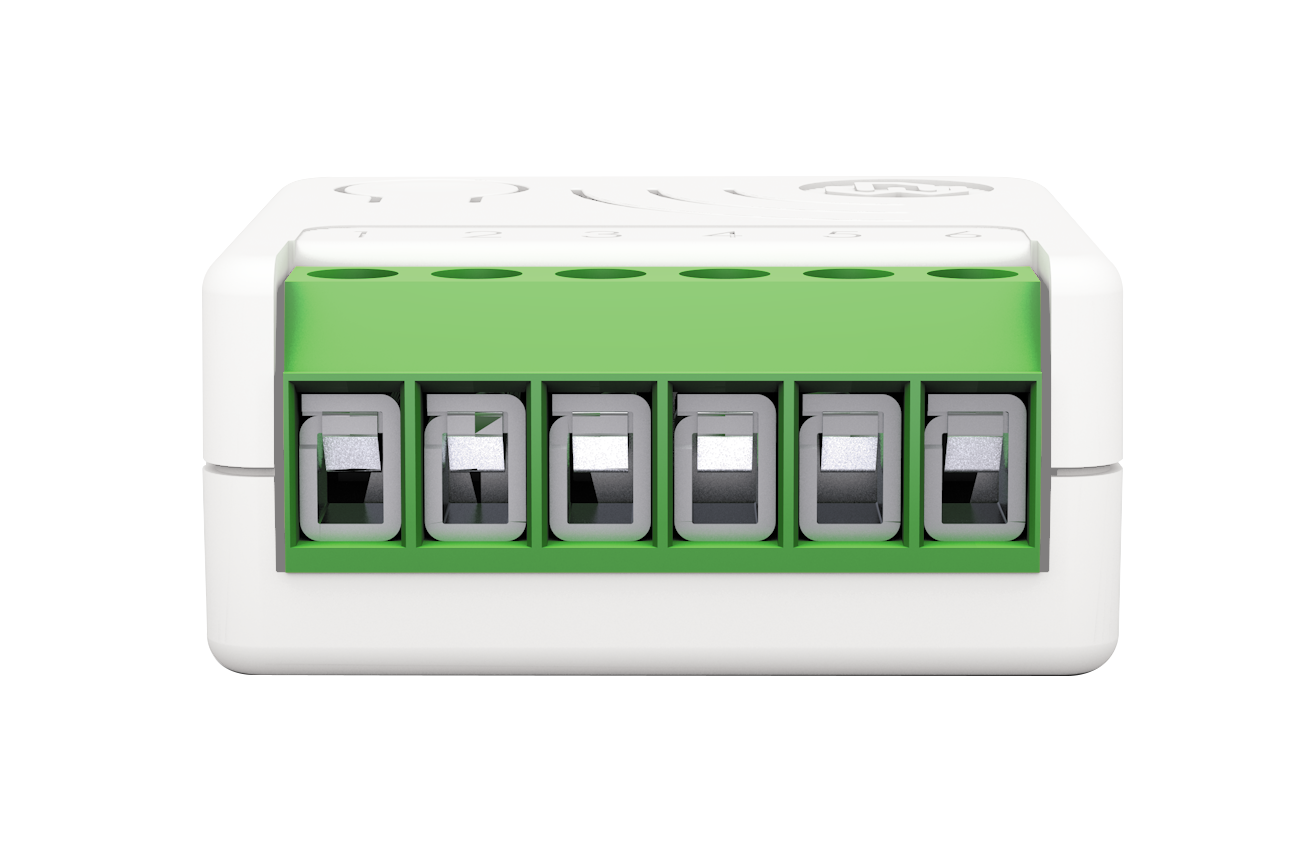

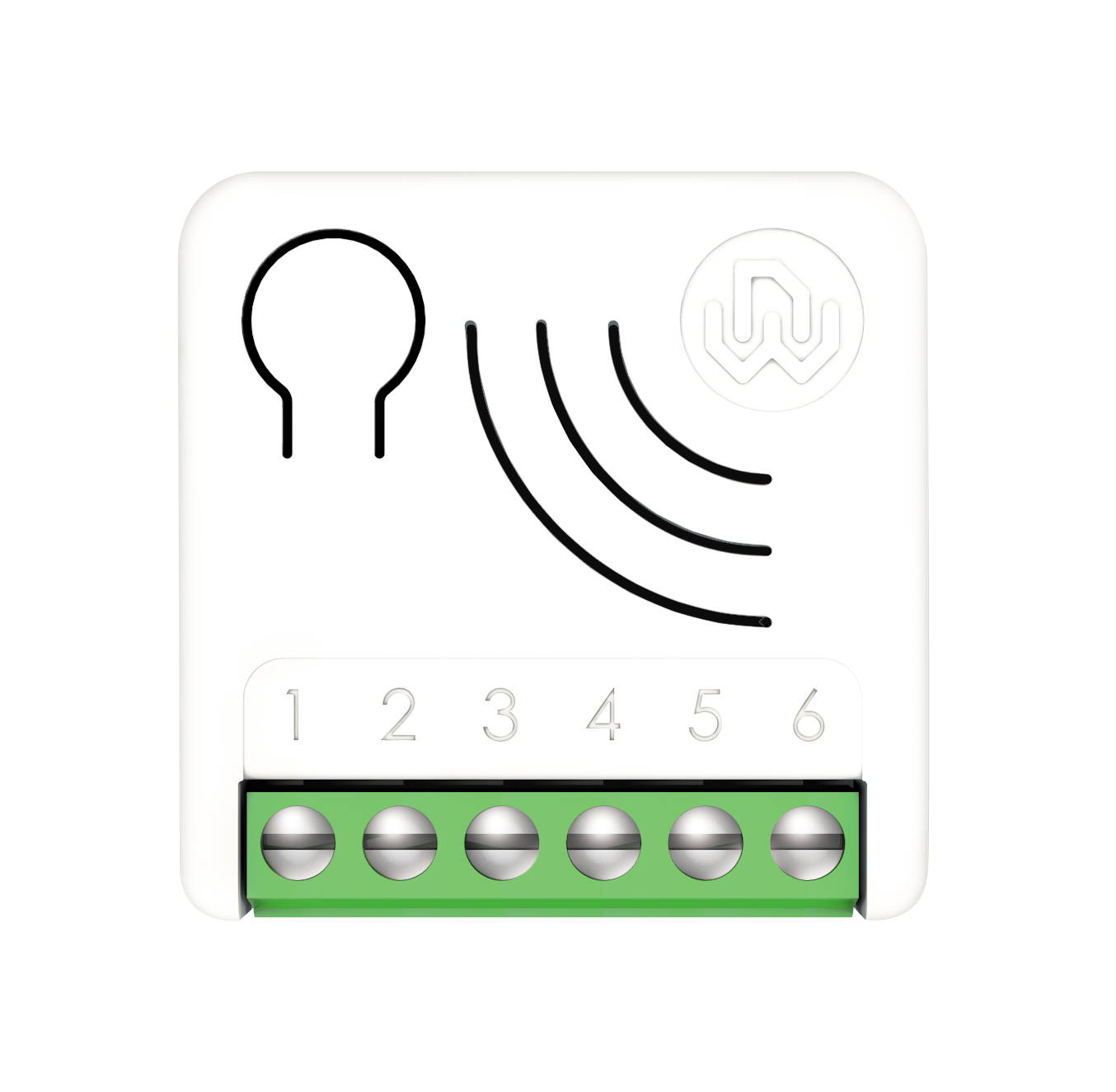

Name	Smart Dry Contact Switch 7 (ZRX Version)
Short Description	Smart Dry Contact Switch 7 can turn ON and OFF equipment’s with an independent power supply, such as solenoid valves (e.g. gas, water and irrigation), power operated valves etc. In its ZRX variant the device can also be controlled by Cherubini Remote Controls of SKIPPER - POP OR GIRO series.
Long Description	Turns ON and OFF the load by using an external switch, or from remote through a controller. Works with both momentary and toggle switches. In its ZRX variant the device can also be controlled by Cherubini Remote Controls of SKIPPER - POP OR GIRO series. 16 Amp relay. The unique feature Offline Setup Mode allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave ™ Network. When the device will be included in the network all these configuration parameters will be maintained A timer can be set when switching On and/or Off. It is also possible to define which event will start the timer. The device supports Central Scene Notification, and the events that trigger the Report can be customized with the configuration parameters. As a constantly powered node, the device will act as repeater in order to increase the reliability of the network. This device is a security enabled Z-Wave Plus ™ product The system supports over-the-air firmware updates that do not require the device to be removed from its location. The system includes an RGB LED indicator that shows the device’s status during installation Power supply: 110 - 230 VAC±10% 50/60 Hz - 24VDC Maximum Load on Relay: 16A resistive Load The extremely small size facilitates installation: 37x37x17 mm Maximum distance: Up to 100 m outdoor - Up to 40 m indoor New Z-Wave™ serie 700, SmartStart and S2 security
Brand	WiDom
Product Identifier	DRYZRX
Product Line	Z-Wave Product
OEM Version	HW: 01 FW: 07.00
Hardware Platform	ZGM130S037HGN2 / ZGM130S037HGN1
Z-Wave Version	7.16.3
Library Type	END_NODE_ENHANCED_232
Device Type	Binary Switch DT
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0149
Product Type ID	0x0004
Product ID	0x0007
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz, IN: 865.20MHz
Categories	All Lighting Devices, Water Valves & Irrigation, On/Off Switches/Devices, Gas Valves
Countries / Regions	Algeria, Armenia, Bahrain, European Union, Cyprus, Moldova, Egypt, French Guiana, Georgia, Iraq, Jordan, Kazakhstan, Kuwait, Lebanon, Libya, Maldives, Mauritius, Nigeria, Oman, Philippines, Qatar, Saudi Arabia, South Africa, Turkmenistan, United Arab Emirates, ZU, Yemen, India
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC_V2 Basic V2 0x20 2 COMMAND_CLASS_SWITCH_BINARY_V2 Binary Switch V2 0x25 2 COMMAND_CLASS_CENTRAL_SCENE_V3 Central Scene V3 0x5B 3 COMMAND_CLASS_CONFIGURATION_V4 Configuration V4 0x70 4 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 Association Group Information (AGI) V3 0x59 3 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Firmware Update Meta Data V5 0x7A 5 COMMAND_CLASS_INDICATOR_V3 Indicator V3 0x87 3 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi Channel Association V3 0x8E 3 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_SECURITY_2 Security 2 0x9F 1 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1
S2 Classes	S2_AUTHENTICATED, S2_UNAUTHENTICATED
Documents	Category Description File Manual_English The only update in the manual is in Page 8 and regards the case of the word "Lifeline" in the description. MANUAL_Dry_Contact_7_EN_180522.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Group Name Profile 1 8 0 Lifeline 0x0001 2 8 0 Follow me 0x2000 3 8 0 Clicks on button 1 G1 0x200b 4 8 0 Clicks on button 1 G2 0x200c 5 8 0 Dimming Group 0x2002
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value 1 IN_TYPE Define the input type. (1: button, 2: toggle switch, 0: no switch input) 2 1 0 0 0x01 10 IN_TOGGLE Define which event on the input toggle output. (1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) 3 1 0 0 0x0f 11 IN_ON_EXCLUSION Define which input event do not switchOn output. (0: none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) 3 1 0 0 0x00 23 STARTUP_OUT Define the output level on startup (0: OFF, 1: ON, 2: Previous status, 3: equal to input) 2 1 0 0 0x02 31 OFF_TIMEOUT Time in tenth of second after which the output will be switched Off. 0: Off timer disabled 1 4 0 0 0x00000000 41 G2_SETUP Define which input event controls G2 group. (0:none, 1: 1 click , 2: 2 clicks, 4: 3 clicks, 8: Hold down, 16: Up) 3 1 0 0 0x02 44 G1_ASS_VALUE The value used to control G1 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) 1 1 0 0 0x65 45 G2_ASS_VALUE The value used to control G2 association group. (0-99: specific value, 100: ON, 101: propagate, 102: toggle remote) 1 1 0 0 0x65 50 DIMMING_TIME Fade On/Off time in second used to control device in dimming group. 1 2 0 0 0x0005 51 MIN_DIM_LEVEL Define the minimum dimming level to control device in dimming group. 1 1 0 0 0x01 60 SCENE_SETUP Define event sent by central scene notification. (0:none, 1:1 click , 2:2 clicks, 4:3 clicks, 8: Hold down, 16: Up) 3 1 0 0 0x1f
Texts	ID Description Value 8 Where to find S2 DSK on product When adding Smart Serie 7 devices to a Z-Wave network with a controller supporting Security 2 Authenticated (S2), the PIN code of the Z-Wave Device Specific Key (DSK) is required. The unique DSK code is printed on the product label. The first five digits of the key are highlighted and underlined to help the user identify the PIN code. Page 5 - S2 Secure inclusion 1 Classic Inclusion All Smart Serie 7 devices are compatible with all Z-Wave/Z-Wave Plus certified controllers. The devices support both the Network Wide Inclusion mechanism (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Normal Inclusion. By default, the inclusion procedure starts in Normal Inclusion mode and after a short timeout the procedure continues in Network Wide Inclusion mode that lasts for about 20 Seconds. Only a controller can add the device into the network. After activating the inclusion function by the controller, the device can be added by setting it in Learn Mode. Before including the device, the LED status indicator is solid RED. The adding of a device is executed by activating the adding procedure in the inclusion section of the controller interface and executing 1 or 3 click on the integrated button (the device is set in Learn Mode). As soon as the inclusion procedure initiates the LED indicator starts a sequence of GREEN-BLUE blinks. The device is included in the network when the LED status is OFF and the interview is completed. 2 Classic Exclusion Only a controller can remove the device from the network. After activating the exclusion function by the controller, the device can be removed by setting it in Learn Mode. The procedure of exclusion can be activated by Removing a node from the Z-Wave network and executing 1 or 3 click on the integrated button; as soon as the exclusion initiates, the LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK. 5 Factory Reset Procedure The device can be reset to the original factory settings with 6 consecutive clicks on the integrated button. After the reset is completed, the device will reboot and a RED solid led is showed. Please use this procedure only when the network primary controller is missing or otherwise inoperable. INFO: If the reset is performed while the device is still part of a network, it notifies the other devices that it has been removed (Device Reset Locally Notification). 6 Other Special Features The device can also be controlled by Cherubini Remote Controls of SKIPPER - POP OR GIRO series Timer Management A timer can be set when switching On and/or Off. It is also possible to define which event will start the timer. Offline setup Mode The device has a unique feature that allows to configure some parameters without using any user interface. This feature enables the professional user to setup the main features of the device in the field even if the device is not included in a Z-Wave Network. When the device will be included in the network all these configuration parameters will be maintained. Central Scene management Since the device supports Central Scene Notification all the events described in the table will be notified with a Central Scene Notification Report to the lifeline. The events that trigger a Central Scene Notification Report can be customized with the configuration parameter in the Central Scene Notification Parameter section. Firmware Update The system supports over-the-air firmware updates that do not require the device to be removed from its location. The firmware update can be activated from all certified controllers supporting version 2 of the Firmware Update function.
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
