Product Recognition
Certification Number	ZC10-16075152

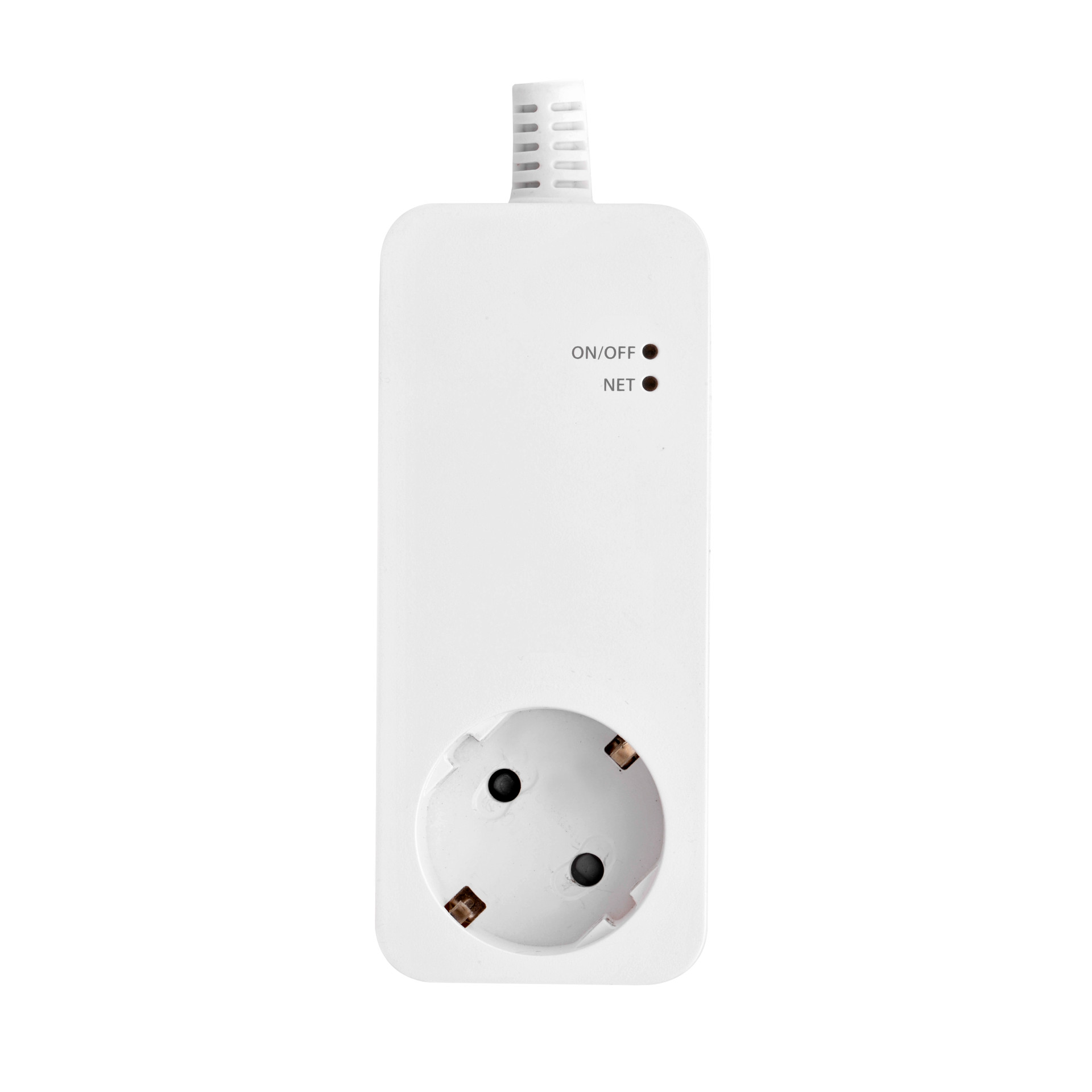

Name	Smart Energy Multi tap
Short Description	Smart Energy Multi Tap plugs in between any appliance and the AC outlet. It can control power on/off of the appliance using your smartphone.
Long Description	Smart Energy Multi Tap plugs in between any appliance and the AC outlet. It can monitor and control power using your smartphone. It can also control the power source connected with appliance manually and remotely using your smartphone.
Brand	Winytechnology
Product Identifier	WTR-1221-111
OEM Version	HW: 1 FW: 1.00
Hardware Platform	ZM5101
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0242
Product Type ID	0x0003
Product ID	0x0014
User Icon	0x0701
Installer Icon	0x0700
Frequency Plans	KR: 920.90MHz, 921.70MHz, 923.10MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	Republic of Korea
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Smart Energy Multi tap.pdf
Features	Feature Values Switch Load Capacity Current Value 10 AMP Switch Load Capacity Volt-Ampere Value 2200 VA Switch Load Capacity Watts Value 2200 W Supported Meter Type Value Electric Energy Switch Type Value Push Button Color Value White Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Lifeline Group. 2 5 0 Notice button status with switch binary report. 3 5 0 Notice AC power status with meter report.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 2 Automatic Meter Reporting Cycle Automatically meter report control (AMRC) is report mode setting of the Meter data. - 00b : Deactivate the meter report - 01b : In case Parameter 91~92 is bigger than setting value, report the event. Report interval is 31 seconds after trigger. - 10b : Automatic report by the set interval in the Parameter 111. 0 1 0 0 2 From To Description 0 0 Deactivate the Meter data report 0 1 Trigger level event mode 1 0 Time Interval Mode 3 AKRC Automatically key report control (AKRC) is report mode setting of the Key data. - 00b : Deactivate the button activation report - 01b : Button Activation report 0 1 0 0 1 From To Description 0 0 Deactivate the button activation report 0 1 Button Activation report 91 GMRTL_W Group1 Watt Trigger level value Trigger value setting (0~65535) for Meter report of Parameter2. 0 2 0 0 50 From To Description 0 65535 Group1 Watt Trigger level value 92 GMRTL_kWh Group1 kWh Trigger level value Trigger value setting (0~65535) for Meter report of Parameter2. 0 2 0 0 50 From To Description 0 65535 Group1 kWh Trigger level value 101 GRCCS GRCCS – Group Report Command Class Setup 1. CRC – Group report crc16 enable/disable - 0x00 : Group report CRC16 Disable - 0x01 : Group report CRC16 Enable 2. MRSS – Select Scale of Meter report - 0x00 : Meter report command scale (kWh) - 0x02 : Meter report command scale (Watt) 0 4 0 0 0 From To Description 0 1 CRC – Group report crc16 enable/disable 0 2 MRSS – Select Scale of Meter report 111 GRIC Interval time setting for (60~65535 second)Report group 0 4 0 0 720 From To Description 60 65535 Interval time setting 255 Reset Initialize Configuration parameter Parameter number 2 : Initialize Parameter 2 Parameter number 3 : Initialize Parameter 3 Parameter number 91 : Initialize Parameter 91 Parameter number 92 : Initialize Parameter 92 Parameter number 101 : Initialize Parameter 101 Parameter number 111 : Initialize Parameter 111 Parameter number 255 : Reset to the default full parameter 0 1 0 0 255 From To Description 2 255 Initialize Configuration parameter
Texts	ID Description Value 1 Inclusion Press Fn switch 3 times in a row to include the device to Z-Wave network. 2 Exclusion Press Fn switch 3 times in a row again to cancel the inclusion of the device on Z-Wave network. 5 Factory Reset Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. Press Fn switch over 10~15 sec to initialize connecting network information.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
