Certification Number	ZC10-16045031

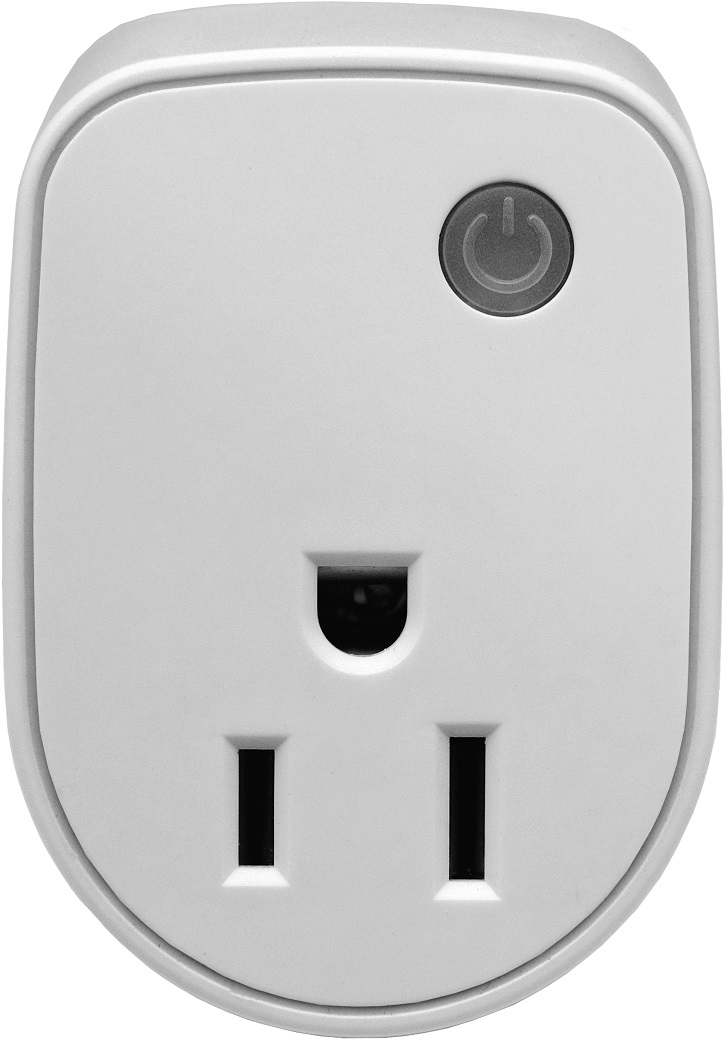

Name	Smart Energy plug In switch
Short Description	This plug-in ON/OFF switch PAN15 is a wireless switch, This plug-in ON/OFF switch PAN15 is a wireless switch. The plug-in ON/Off based on Z-Wave Plus technology. The plug-in ON/Off switch is able to detect current wattage and overload wattage of connected light or appliances.
Long Description	This plug-in ON/OFF switch PAN15 is a wireless switch, based on Z-Wave Plus technology. Z-Wave PlusTM enabled devices displaying the Z-Wave Plus TM logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-WaveTM enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. This plug-in ON/OFF switch is able to detect instance wattage (1560W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status. Adding to Z-WaveTM Network In the front casing, there is an On/Off button with LED indicator which is used to toggle switch on and off or carry out inclusion, exclusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies that it has not been assigned a node ID and start auto inclusion. Auto Inclusion The function of auto inclusion will be executed as long as the switch does not have Node ID and just plug the switch into a wall outlet. Note: Auto inclusion timeout is 2 minute during which the node information of explorer frame will be emitted once several seconds. Unlike “inclusion” function as shown in the table below, the execution of auto inclusion is free from pressing the On/Off button on the Switch.
Brand	Philio
Product Identifier	PAN15-1-NES
OEM Version	HW: 1 FW: 1.04
Hardware Platform	SD3502
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x013C
Product Type ID	0x0001
Product ID	0x0038
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PAN15-NES-manual-20160123.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline The Switch can be set to send reports to associated Z-Wave devices. It supports one association group with one node support for Grouping 1. For group 1, the Switch will report its latest status to Z-Wave Controller. Grouping 1 includes, SWITCH_BINARY_REPORT, ALARM_REPORT.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Switch status report mode Whenever the status of switches changes, it will send a Binary Switch report to the group1 node. The default setting is 1 (Enable). 0 1 0 0 1 From To Description 1 1 1 : Enable 0 0 0 : Disable 5 Restore switch state mode Whenever the AC power return from lost, PAN15 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE. 0 1 0 0 1 From To Description 0 0 0 : Switch off 1 1 1 : Last switch state 2 2 2 : Switch on 6 Mode of switch off function When the mode of switch On/Off is set to 0, any command of switch off will be disabled and the On/Off function of include button will be disabled. The default setting is enable mode. 0 1 0 0 1 From To Description 0 0 0 : Disable 1 1 1 : Enable 8 Auto off timer Whenever PAN15 switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch to off automatically. However if Auto off timer is set as 0, the auto off function will be disabled. The default setting is 0. 0 2 0 0 0 From To Description 0 0 0 : Disable auto off function 1 32767 1-0x7FFF : 1s ~ 32767s 9 RF off command mode Whenever a switch off command, BASIC_SET、BINARY_SWITCH_SET、SWITCH_ALL_OFF, is received, it could be interpreted as 4 variety of commands. 1.Switch Off：It switches to OFF state. The default setting is Switch Off. 2.Ignore：The switch off command will be ignored. 3.Switch Toggle：It switches to the inverse of current state. 4.Switch On：It switches to ON state. 0 1 0 0 0 From To Description 0 0 0 : Switch off 1 1 1 : Ignore 2 2 2 : Switch toggle 3 3 3 : Switch on
Texts	ID Description Value 1 Inclusion 1.Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter inclusion mode. 2 Exclusion 1.Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2.Pressing On/Off button three times within 2 seconds will enter exclusion mode. 3.Node ID has been excluded. 5 Factory Reset Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing On/Off button three times within 2 seconds will enter inclusion mode. 2.Within 1 second, press On/Off button again for 5 seconds. 3.IDs are excluded.
Supports NWI	Yes
Supports Explorer Frames	Yes
