Product Recognition
Certification Number	ZC10-16105251

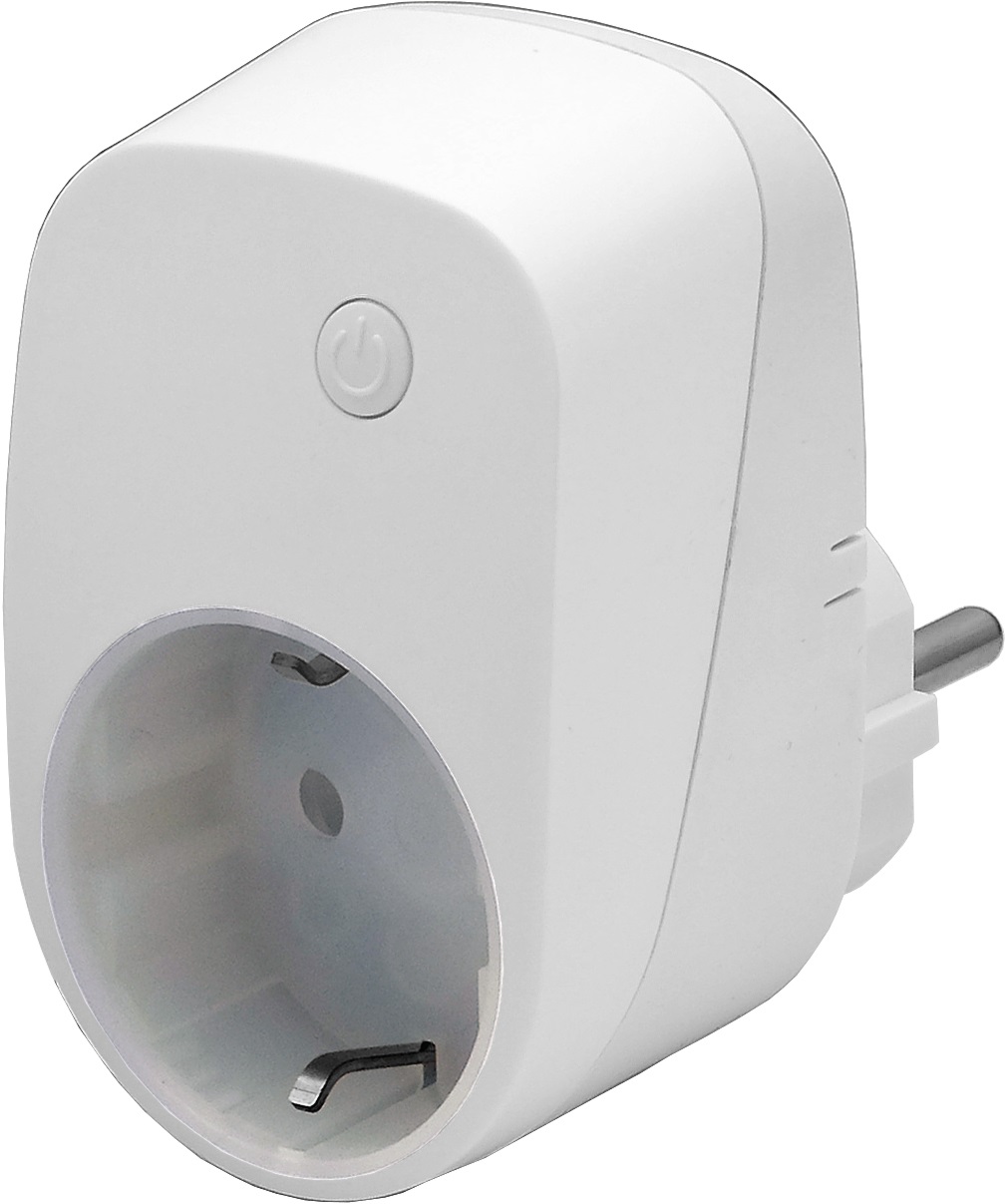

Name	Smart energy plug in switch
Short Description	This plug-in ON/OFF switch PAN16 is a security enabled Z-Wave Plus product, based on Z-Wave Plus technology.
Long Description	This plug-in ON/OFF switch PAN16 is a security enabled Z-Wave Plus product, based on Z-Wave Plus technology. The device will enable security mode automatically if the controller supports security mode, too. Z-Wave PlusTM enabled devices displaying the Z-Wave PlusTM logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-WaveTM enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because PAN16 supports Security Command Class, it can learn with a Secured enabled Z-Wave controller to fully utilize the device. Its functionality and supported command classes is identical when included as a secure and non-secure device. This plug-in ON/OFF switch is able to detect instance wattage (3000W/230Vac) (13Ampere) and overload current (14.5A with resistive load) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status. Adding to Z-WaveTM Network In the front casing, there is an On/Off button with LED indicator which is used to toggle switch on and off or carry out inclusion, exclusion, reset or association. When first power is applied, its LED flashes on and off alternately and repeatedly at 0.5 second intervals. It implies that it has not been assigned a node ID and start auto inclusion. Auto Inclusion The function of auto inclusion will be executed as long as the switch does not have Node ID and just plug the switch into a wall outlet. Note: Auto inclusion timeout is 2 minute during which the node information of explorer frame will be emitted once several seconds. Unlike “inclusion” function as shown in the table below, the execution of auto inclusion is free from pressing the On/Off button on the Switch.
Brand	Philio
Product Identifier	PAN16-1
OEM Version	HW: 1 FW: 1.02
Hardware Platform	SD3502
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x013C
Product Type ID	0x0001
Product ID	0x0029
User Icon	0x0700
Installer Icon	0x0700
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Energy Meters, All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_PROTECTION_V2 Protection V2 0x75 2 COMMAND_CLASS_ALARM Alarm 0x71 1 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_METER_V3 Meter V3 0x32 3 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PAN16-A1 manual-20160921.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF Switch Load Capacity Current Value 13Amps Supported Meter Type Value Electric Energy Color Value White Electric Load Type Value Incandescent Fluorescent ELV (Electronic) LED Switch Load Capacity Watts Value 3000Watts Switch Type Value Push Button
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline The Switch can be set to send reports to associated Z-Wave devices. It supports one association group with one node support for Grouping 1. For group 1, the Switch will report its latest status to Z-Wave Controller. Grouping 1 includes, SWITCH_BINARY_REPORT, METER_REPORT, ALARM_REPORT, DEVICE_RESET_LOCALLY_NOTIFICATION.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 6 Mode of switch off function When the mode of switch On/Off is set to 0, any command of switch off will be disabled and the On/Off function of include button will be disabled. The default setting is enable mode. When manual On/Off function is disabled, the RF command can only switch On but not Off. This is useful function for keeping the device in switch on state. 0 1 0 0 1 From To Description 0 0 0 : Disable 1 1 1 : Enable 1 Watt Meter Report Period If the setting is configured for 1hour (set value =720), the PAN16 will report its instant power consumption every 1 hour to Group1 node. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr). 0 2 0 0 720 From To Description 1 32767 720*5s=3600s=1 hour 2 KWH Meter Report Period If the setting is configured for 1hour (set value =6), the PAN16 will report its Accumulated Power Consumption (KW/h) every 1 hour to Group1 node. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days). 0 2 0 0 6 From To Description 1 32767 6*10min=1 hour 3 Threshold of current for Load Caution This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, PAN16 will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300. 0 2 0 0 1300 From To Description 10 1300 1300*0.01A = 13A 4 Threshold of KWh for Load Caution This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, PAN16 will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh. 0 2 0 0 10000 From To Description 1 10000 10000*1KWH=10000KWH 5 Restore switch state mode Whenever the AC power return from lost, PAN16 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE. 0 1 0 0 1 From To Description 0 0 0 : Switch off 1 1 1 : Last switch state 2 2 2 : Switch on 7 LED indication mode 1. Show Switch State：When switch is on, LED is on. When switch is off, LED is off. The default setting is Show Switch State. 2. Show Night mode：When switch is on, LED is off. When switch is off, LED is on. 3. One Flash mode：When the state of switch changes, LED will be on only one second, then LED keeps off. 0 1 0 0 1 From To Description 1 1 1 : Show switch state 2 2 2 : Show night mode 3 3 3 : One flash mode 8 Auto off timer Whenever PAN16 switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch to off automatically. However if Auto off timer is set as 0, the auto off function will be disabled. The default setting is 0. 0 2 0 0 0 From To Description 0 0 0 : Disable auto off function 1 32767 1s ~ 32767s 9 RF off command mode Whenever a switch off command, BASIC_SET、BINARY_SWITCH_SET、SWITCH_ALL_OFF, is received, it could be interpreted as 4 variety of commands. 1. Switch Off：It switches to OFF state. The default setting is Switch Off. 2. Ignore：The switch off command will be ignored. 3. Switch Toggle：It switches to the inverse of current state. 4. Switch On：It switches to ON state. 0 1 0 0 0 From To Description 0 0 0 : Switch off 1 1 1 : Ignore 2 2 2 : Switch toggle 3 3 3 : Switch on 11 Manual Switch Report mode Whenever PAN16 manually switch on or off, it will send BINARY_SWITCH_REPORT to the node of group1. The default setting is Enable the function. 0 1 0 0 1 From To Description 0 0 0 : Disable 1 1 1 : Enable
Texts	ID Description Value 1 Inclusion 1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter inclusion mode. 2 Exclusion 1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing On/Off button three times within 2 seconds will enter exclusion mode. 5 Factory Reset Use this procedure only in the event that the primary controller is lost or otherwise inoperable. 1. Pressing On/Off button three times within 2 seconds will enter inclusion mode. 2. Within 1 second, press On/Off button again for 5 seconds. 3. IDs are excluded.
Supported / Controlled Meter Types	Meter Type Rate Type Description Electric meter Import Electric Meter Consumption
Supports NWI	Yes
Supports Explorer Frames	Yes
