Product Recognition

Certification Number

ZC10-14080016

Name

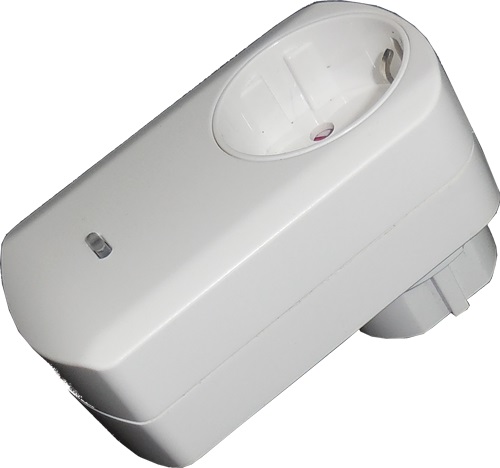

Smart Energy Plug In Switch

Short Description

This plug-in ON/OFF switch PAN11 is a security enabled wireless switch, based on Z-Wave Plus™ technology. This plug-in ON/OFF switch is able to detect current wattage and overload wattage of connected lights or appliances.

Long Description

This plug-in ON/OFF switch PAN11 is a security enabled wireless switch, based on Z-Wave Plus™ technology. Z-Wave Plus™ enabled devices displaying the Z-Wave Plus™ logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave™ enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because PAN11 supports Security Command Class, it can learn with Secured controller. Its functionality and supported command classes is identical when included as a secure and non-secure device. This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN, 1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status.

Brand

Philio

Product Identifier

PAN11-1A

OEM Version

Hardware Platform

SD3502

Z-Wave Version

6.51.00

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x013C

Product Type ID

0x0001

Product ID

0x0011

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Energy Meters, All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

KWH Meter Report Period:

If the setting is configured for 1hour (set value =6), the PAN11 will report its Accumulated Power Consumption (KW/h) every 1 hour to Group1 node. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days).

From	To	Description
1	32767	6*10min=1 hour

LED indication mode

1. Show Switch State：When switch is on, LED is on. When switch is off, LED is off. The default setting is Show Switch State. 2. Show Night mode：When switch is on, LED is off. When switch is off, LED is on. 3. One Flash mode：When the state of switch changes, LED will be on only one second, then LED keeps off.

From	To	Description
1	3	1 : Show switch state 2 : Show night mode 3 : One flash mode

Auto off timer

Whenever PAN11 switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch to off automatically. However if Auto off timer is set as 0, the auto off function will be disabled. The default setting is 0.

From	To	Description
0	32767	0 : Disable auto off function 1-0x7FFF : 1s ~ 32767s

Mode of switch off function

When the mode of switch On/Off is set to 0, any command of switch off will be disabled and the On/Off function of include button will be disabled. The default setting is enable mode.

From	To	Description
0	1	0 : Disable 1 : Enable

Watt Meter Report Period

If the setting is configured for 1hour (set value =720), the PAN11 will report its instant power consumption every 1 hour to Group1 node. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr).

720

From	To	Description
1	32767	720*5s=3600s=1 hour

Restore switch state mode

Whenever the AC power return from lost, PAN11 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE.

From	To	Description
0	2	0 : Switch off 1 : Last switch state 2 : Switch on

Threshold of KWh for Load Caution

This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, PAN11 will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh.

10000

From	To	Description
1	10000	1KWh ~ 10000KWh

RF off command mode

Whenever a switch off command, BASIC_SET 、 BINARY_SWITCH_SET 、 SWITCH_ALL_OFF, is received, it could be interpreted as 4 variety of commands. 1. Switch Off：It switches to OFF state. The default setting is Switch Off. 2. Ignore：The switch off command will be ignored. 3. Switch Toggle：It switches to the inverse of current state. 4. Switch On：It switches to ON state.

From	To	Description
0	3	0 : Switch off 1 : Ignore 2 : Switch toggle 3 : Switch on

Threshold of current for Load Caution

This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, PAN11 will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300.

1300

From	To	Description
10	1300	1300*0.01A = 13A

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes
