Product Recognition

Certification Number

ZC10-15050018

Name

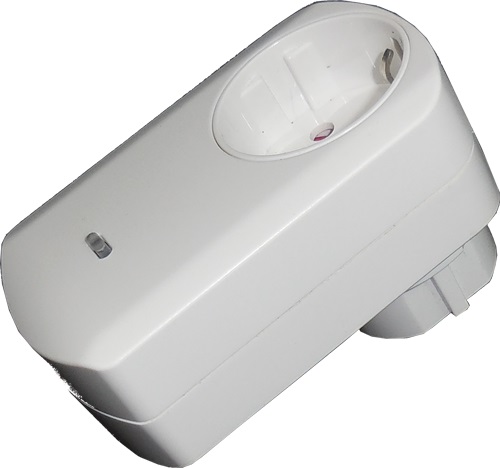

Smart Energy Plug In Switch

Short Description

This plug-in ON/OFF switch TZ88 is a security enabled wireless switch, based on Z-Wave Plus technology. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller.

Long Description

This plug-in ON/OFF switch TZ88 is a security enabled wireless switch, based on Z-Wave Plus technology. Z-Wave Plus™ enabled devices displaying the Z-Wave Plus™ logo can also be used with it regardless of the manufacturer, and can also be used in other manufacturer’s Z-Wave™ enabled networks. Remote On/Off control of the connected load is possible with other manufacturer’s wireless Controller. Each switch is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. Because TZ88 supports Security Command Class, it can learn with Secured controller. Its functionality and supported command classes is identical when included as a secure and non-secure device. This plug-in ON/OFF switch is able to detect instance wattage (3000W/CE/CN, 1500W/UL/TW/JP) and overload current (14.5A) of connected lights or appliances. When detecting overload state, the Switch will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, unplug and re-connect the switch will reset its overload condition to normal status.

Brand

TKB Home

Product Identifier

TZ88

OEM Version

Hardware Platform

SD3502

Z-Wave Version

6.51.00

Library Type

SLAVE_ENHANCED_232

Device Type

On/Off Power Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0118

Product Type ID

0x0001

Product ID

0x0011

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

European Union

Documents

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Watt Meter Report Period

If the setting is configured for 1hour (set value =720), the TZ88 will report its instant power consumption every 1 hour to Group1 node. The maximum interval to report its instant power consumption is 45 hours (5s*32767/3600=45hr).

720

From	To	Description
1	32767	720*5s=3600s=1 hour

RF off command mode

Whenever a switch off command, BASIC_SET 、 BINARY_SWITCH_SET 、 SWITCH_ALL_OFF, is received, it could be interpreted as 4 variety of commands. 1. Switch Off：It switches to OFF state. The default setting is Switch Off. 2. Ignore：The switch off command will be ignored. 3. Switch Toggle：It switches to the inverse of current state. 4. Switch On：It switches to ON state.

From	To	Description
0	0	0 : Switch off
1	1	1 : Ignore
2	2	2 : Switch toggle
3	3	3 : Switch on

KWH Meter Report Period

If the setting is configured for 1hour (set value =6), the TZ88 will report its Accumulated Power Consumption (KW/h) every 1 hour to Group1 node. The maximum interval to report its Accumulated Power Consumption (KW/h) is 227.55 days (10min*32767/1440=227.55 days).

From	To	Description
1	32767	6*10min=1 hour

Threshold of current for Load Caution

This is a warning when the current of load over the preset threshold value, if the setting value is 1300, when the load current of Relay1 over this value, TZ88 will send current meter report to warn the Group1 node, the Range of the setting value is from 10 to 1300,and the default value is 1300.

1300

From	To	Description
10	1300	1300*0.01A = 13A

Threshold of KWh for Load Caution

This is a warning when the KWh of load over the preset threshold value, If the setting value is 10000, when the Accumulated Power Consumption of Relay1 over this value, TZ88 will send KWH meter report to warn the Group1 node, minimum value is 1KWh and default value is 10000 kWh.

10000

From	To
1	10000

Restore switch state mode

Whenever the AC power return from lost, TZ88 will restore the switch state which could be SWITCH OFF、LAST SWITCH STATE、SWITCH ON. The default setting is LAST SWITCH STATE.

From	To	Description
0	0	0 : Switch off
1	1	1 : Last switch state
2	2	2 : Switch on

Mode of switch off function

When the mode of switch On/Off is set to 0, any command of switch off will be disabled and the On/Off function of include button will be disabled. The default setting is enable mode.

From	To	Description
0	0	0 : Disable
1	1	1 : Enable

LED indication mode

1. Show Switch State：When switch is on, LED is on. When switch is off, LED is off. The default setting is Show Switch State. 2. Show Night mode：When switch is on, LED is off. When switch is off, LED is on.

From	To	Description
1	1	1 : Show switch state
2	2	2 : Show night mode

Auto off timer

Whenever TZ88 switches to on, the auto off timer begin to count down. After the timer decrease to zero, it will switch to off automatically. However if Auto off timer is set as 0, the auto off function will be disabled. The default setting is 0.

From	To	Description
0	0	0 : Disable auto off function
1	32767	1-0x7FFF : 1s ~ 32767s

Texts

Supports NWI

Yes

Supports Explorer Frames

Yes
