Product Recognition | |
|---|
Certification Number | ZC12-21060242 |
|---|

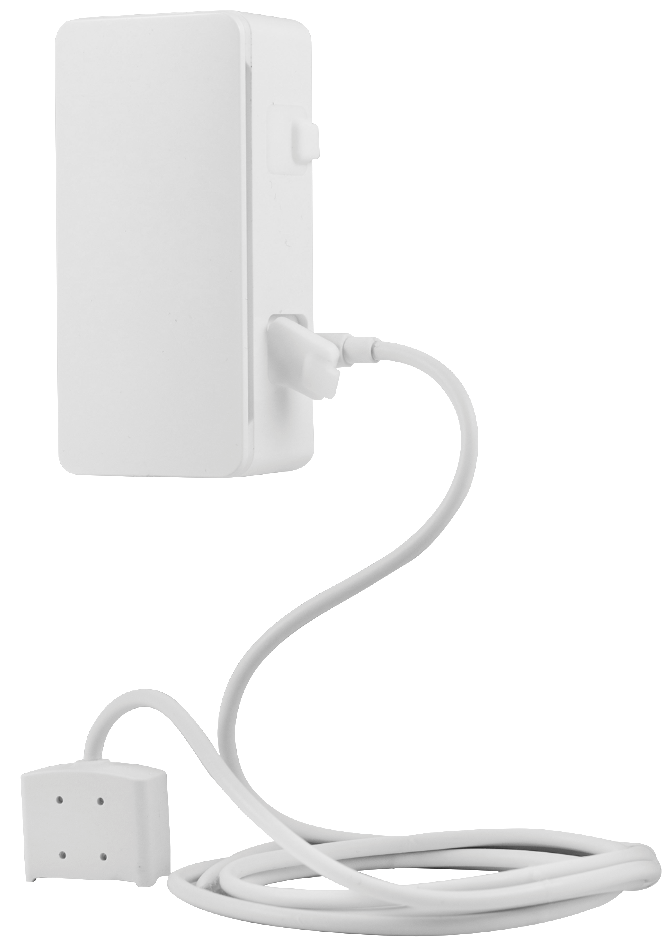

Name | Smart Flood/Freeze Sensor with Humidity |
|---|
Short Description | Heighten your senses with the Jasco Z-Wave Plus Flood/Freeze with Humidity Sensor. When paired with a compatible hub, the smart sensor provides notification when water levels or temperatures change. |
|---|
Long Description | Heighten your senses with the Jasco Z-Wave Plus Flood/Freeze with Humidity Sensor. When paired with a compatible hub, the smart sensor provides notification when water levels or temperatures change. Z-Wave devices can also be activated wirelessly for increased convenience and peace of mind. Your automation possibilities are seemingly infinite when connected to a compatible hub.
• Trigger events – The sensor communicates with your hub to initiate desired actions of Z-Wave devices. Increase peace of mind by automatically turning on lights, sending a notification to your phone, activating an alarm or more when temperatures, humidity or water levels change.
• Detection alarm – Built-in speaker emits audible alert when water levels or temperatures change to allow immediate action by anyone in the area.
• Dual function – Base contacts and a detachable probe accommodate various setups. Recessed contacts on the base of the sensor are ideal for placement on flat surfaces. The included probe extends reach for use in wells, sump pump holes and other small spaces.
• Temperature and humidity sensor – In humid or temperature-sensitive spaces, protect against costly damage caused by freezing or overheating.
• Indicator light – LED indicator displays status and provides feedback during programming. It also serves as notification if tampering with the sensor occurs.
• Universal compatibility – Z-Wave Plus and all previous Z-Wave generations work together to allow continued expansion of your home-automation network. |
|---|
Brand | Jasco |
|---|
Product Identifier | 54325/ZW6309A |
|---|
Product Line | Sensors |
|---|
OEM Version | HW: 1 FW: 7.04 |
|---|
Hardware Platform | ZGM130 |
|---|
Z-Wave Version | 7.13.6 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4953 |
|---|
Product ID | 0x3432 |
|---|
User Icon | 0x0C05 |
|---|
Installer Icon | 0x0C05 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta-Data V5 | 0x7A | 5 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Supports Device Reset Locally and receives unsolicited status updates. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Flag ReInclude | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
23 | Battery Report Freq. | Set Battery Report Freq. | 2 | Yes | 2 | 5 | 1440 | 1440 | From | To | Description |
|---|
5 | 1440 | Set Battery Report Freq. |
| 52 | Temp Report Freq.(USB) | Set Temp Report Freq. | 2 | Yes | 2 | 5 | 360 | 60 | From | To | Description |
|---|
5 | 360 | 5.... 360 Minutes - Sent every 5 minutes, up to 6 hours | 60 | 60 | Hourly |
| 51 | High Temp Alert Level | Set High Temp Level | 2 | Yes | 2 | 0 | 122 | 104 | From | To | Description |
|---|
0 | 122 | High temp |
| 53 | LED/Buzzer action during Tamper Event | 0 = no LED, no beep (Default) 1 = Red LED Flash 5x, no beep 2 = Red LED cont flash, no beep 3 = no LED, cont beep 4 = Red LED cont flash, cont beep | 2 | | 2 | 0 | 4 | 0 | From | To | Description |
|---|
0 | 0 | No LED, No Beep | 1 | 1 | Red LED Flash 5x, no beep | 2 | 2 | Red LED continuous flash, no beep | 3 | 3 | No LED, continuous beep | 4 | 4 | Red LED continuous flash, continuous beep |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | The controller's app will indicate if it discovers the sensor. If prompted by the controller to enter S2 security code, refer to the QR code/security number on the back of the box or the QR code label on the product. | 1 | Classic Inclusion | 1. Follow the instructions for your Z-Wave certified controller to add the sensor in the Z-Wave network.
2. Once the controller is ready to add your device, remove the top cover of the sensor.
3. Ensure battery is installed with the correct polarity and the battery tab has been removed or ensure micro USB is plugged in.
4. Press and release the programming button. This starts the manual add process. The red LED flashes quickly as it searches for a network. After 25 seconds, the LED will stop flashing if the sensor is not added to the network. Press the programming button to manually start the add process. If if times out, the LED will stop flashing. Press and release the programming button again. | 2 | Classic Exclusion | 1. Follow the instructions for your Z-Wave certified controller to remove from the Z-Wave network.
2. Once the controller is ready to remove your sensor, press and release the programming button one time on the sensor.
3. The red LED will blink five times to indicate it has been removed. | 4 | Wake-Up Procedure | Press and release the programming button one time on the sensor. | 5 | Factory Reset Procedure | 1. Press the programming button 10 times within six seconds (interval between presses of the button cannot be longer than one second). |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Heat Alarm | Heat sensor status: Overheat detected | Heat Alarm | Heat sensor status: Under heat detected | Water Alarm | (Refer to parameters): State idle | Water Alarm | Sensor status: Water leak detected | Water Alarm | Water level dropped | Home Security | (Refer to parameters): State idle | Home Security | Cover status: Tampering, product cover removed |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
