| Product Recognition | |
|---|
| Certification Number | ZC10-17055595 |
|---|

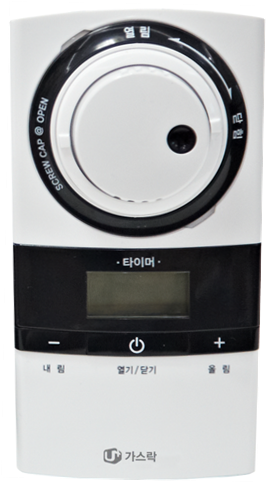

| Name | Smart Gas Controller |
|---|
| Short Description | Gas Valve Remote Locker |
|---|
| Long Description | U+ Gas lock helps users easily check and turn off the gas valves in home from anywhere. It detects dangerous temperature and alerts potential danger situations so that users can handle a problem. In addition, users can set time to lock gas valves against danger. |
|---|
| Brand | LG Uplus |
|---|
| Product Identifier | GCR-01 |
|---|
| OEM Version | HW: 1 FW: 39.132 |
|---|
| Hardware Platform | ZM5101 |
|---|
| Z-Wave Version | 6.61.00 |
|---|
| Library Type | SLAVE_ENHANCED_232 |
|---|
| Device Type | Valve |
|---|
| Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
| Manufacturer ID | 0x018B |
|---|
| Product Type ID | 0x0040 |
|---|
| Product ID | 0x0001 |
|---|
| User Icon | 0x1500 |
|---|
| Installer Icon | 0x1500 |
|---|
| Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
| Categories | Gas Valves |
|---|
| Countries / Regions | Republic of Korea |
|---|
| Supported Command Classes | | Identifier | Name | Key | Version |
|---|
| COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | | COMMAND_CLASS_ALARM | Alarm | 0x71 | 1 | | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
| Documents | |
|---|
| Features | | Feature | Values |
|---|
| Battery Type | | | Color | | | Firmware Updatable | | | IP (Ingress Protection) Rated | | | Outdoor Use | | | Battery Quantity | |
|
|---|
| Association Groups | | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
| 1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
| Configuration Parameters | | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
| 1 | Sound volume setting | 0x00: Mute, 0x01: Minimum sound volume, 0x02: Default sound volume, 0x03: Maximum sound volume, | 0 | 1 | 0 | 0 | 2 | | From | To | Description |
|---|
| 0 | 3 | Sound volume setting |
| | 2 | Valve auto lock time setting | This must be done when the Gas valve is open. Upper byte value: hour, Lower byte value: minute, Setting Range : 2min ~9hr 59min (0x0002 ~ 0x093B) | 0 | 2 | 0 | 0 | 256 | | From | To | Description |
|---|
| 2 | 2363 | 00(0hr)02(2min) ~ 09(9hr)3B(59min) |
|
|
|---|
| Texts | | ID | Description | Value |
|---|
| 5 | Factory Reset | Please use this only when the primary controller is missing or otherwise disabled.
This must be done when the Gas valve is closed. Hold 15 seconds (-) button until you hear a beep once and ‘FS’ is displayed on LCD. | | 1 | Inclusion | This must be done when the Gas valve is closed. After doing inclusion action on controller, then hold 5 seconds (-) button until you hear a beep once and ‘P’ is blinking on LCD. | | 2 | Exclusion | This must be done when the Gas valve is closed. After doing exclusion action on controller, then hold 5 seconds (-) button until you hear a beep once and ‘P’ is blinking on LCD. |
|
|---|
| Supports NWI | Yes |
|---|
| Supports Explorer Frames | Yes |
|---|
| Is Flirs | Yes |
|---|
