Product Recognition | |
|---|
Certification Number | ZC10-16035017 |
|---|

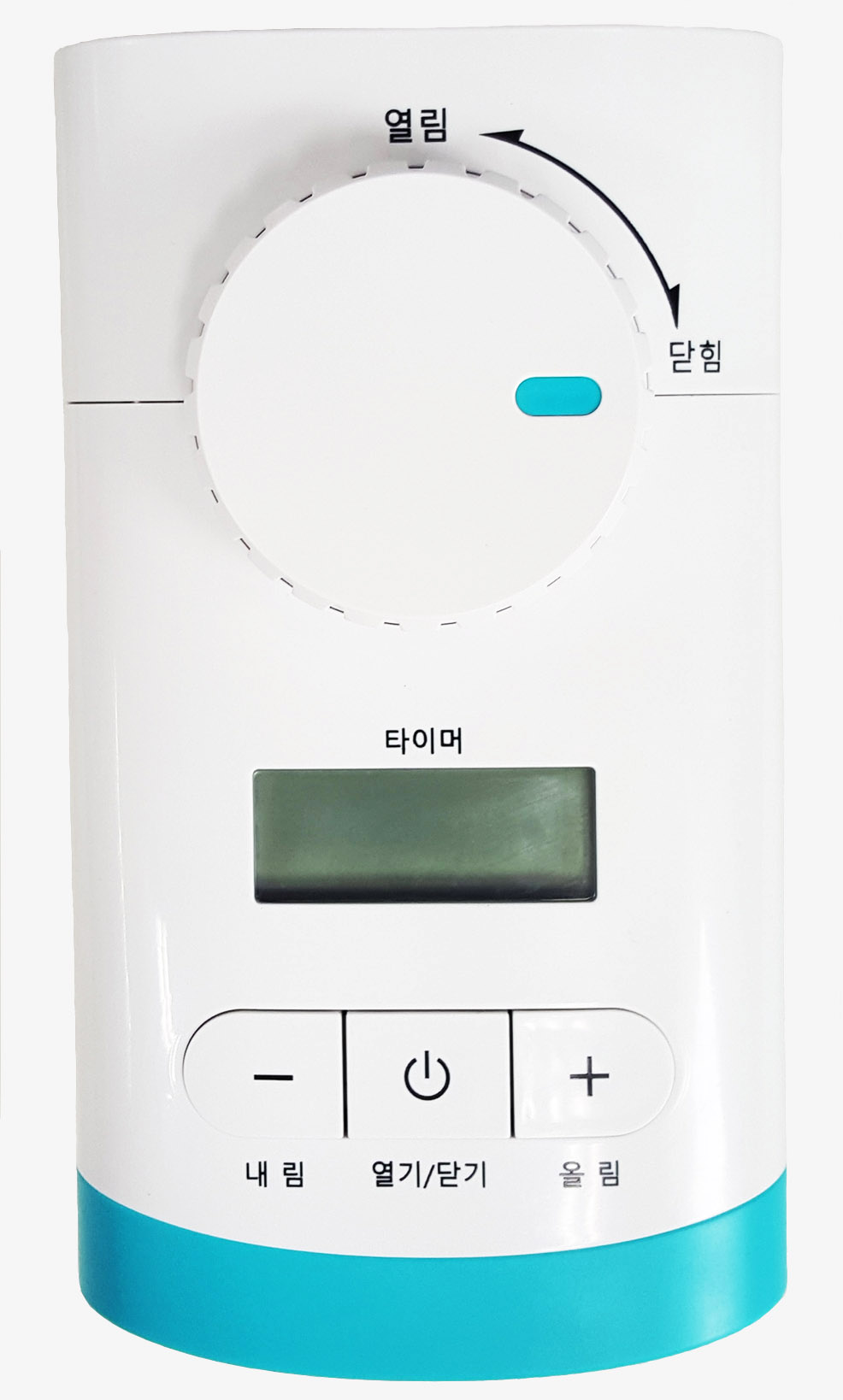

Name | Smart Gas Keeper |
|---|
Short Description | Gas Shutoff Device |
|---|
Long Description | HT-A10 Z-Wave Smart Gas Keeper device has below function. GAS Valve open/close device that allows you to lock/unlock by manual or press button and checks battery status.
* This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once.
* You can set the time with Timer UP/DOWN button of the main device
* You can set the time for maximum 9 hours in unit of every 10 minutes
* GAS valve is closed automatically when the temperature reaches above to 65℃ inside of the gas circuit breaker |
|---|
Brand | Gas Keeper |
|---|
Product Identifier | HT-A10 |
|---|
OEM Version | HW: 1 FW: 39.16 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Valve - Open/Close |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x024C |
|---|
Product Type ID | 0x0100 |
|---|
Product ID | 0x0100 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Gas Valves |
|---|
Countries / Regions | Republic of Korea |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline between controller and Gas keeper.
Supported command classes are Battery report, Notification report, and Device Reset Locally notification.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
2 | Remained Time | This configuration setting controls the remaining time of set time. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 540 | Remained Time |
| 1 | Timer Setting | This configuration setting controls the time setting that maximum 9 hours in unit of every 10 minutes. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 54 | Time Setting |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once. | 2 | Exclusion | This must be done at GAS valve and when closed. Press Timer UP button for 5 seconds till hearing beep once. | 4 | Device Wake-Up | Wake up is released the Sleep mode open/close button operation. | 6 | Additional Special Features | GAS valve is closed automatically when the temperature reaches above to 65℃ inside of the gas circuit breaker | 5 | Factory Reset | This must be done at GAS valve and when closed. Press Timer UP button for 10 seconds till hearing beep once. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
