Certification Number | ZC10-17115834 |
|---|

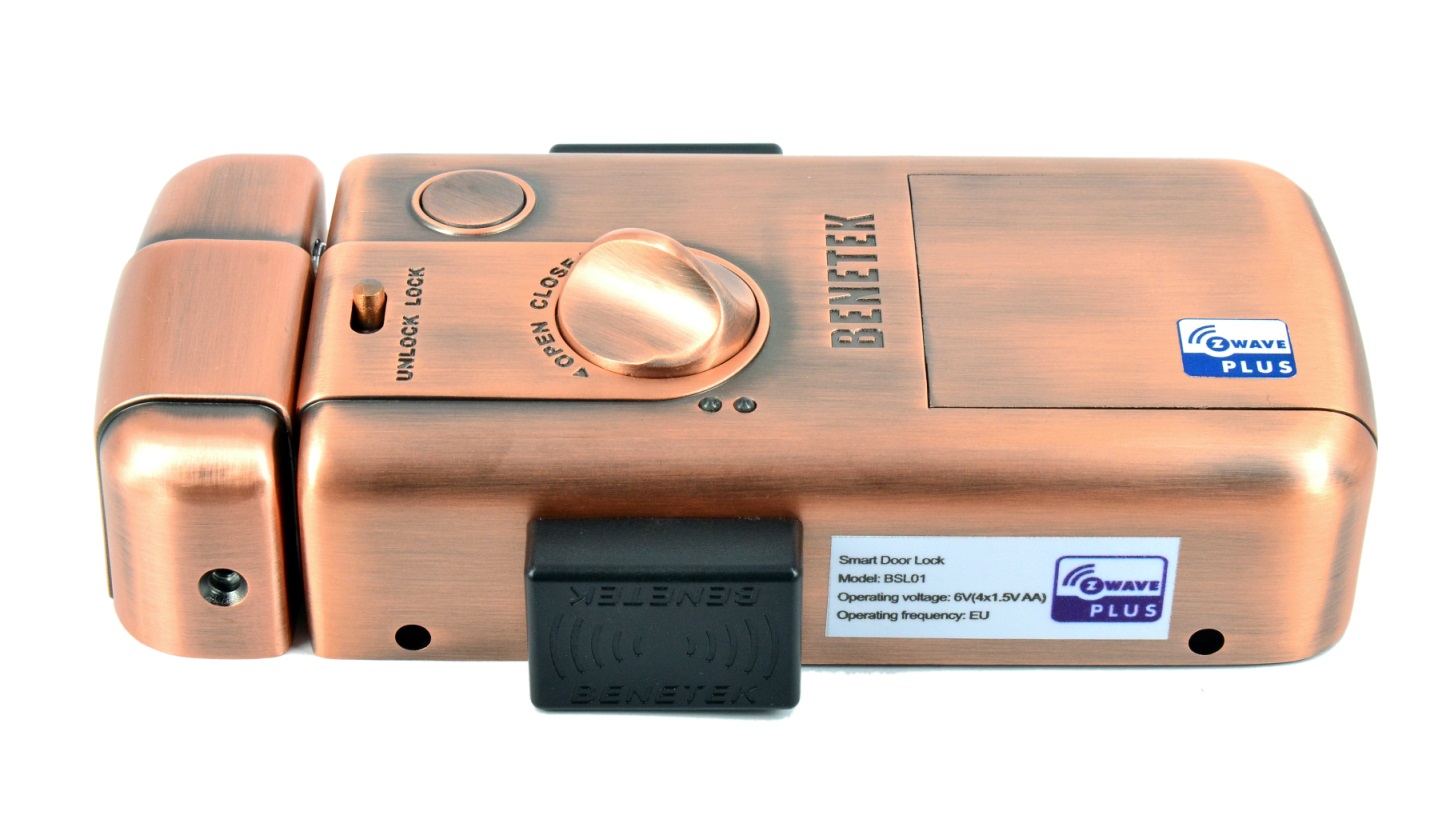

Name | Smart Hidden Door Lock with Deadbolt |
|---|
Short Description | A great traditional and stylish appearance and robust door lock. it is night lock style with dead bolt, remote, key, RF card, keypad, Z-Wave. |
|---|
Long Description | BENETEK smart lock is night lock style with dead bolt, remote, key, RF card, keypad, Z-Wave.
Material: The lock was made of zinc alloy. The lock shell is 4mm thick. And the inside structure was made of metal. 304 stainless steel panel, the thickness of 1.5mm
Weight: 1800g,
Power supply method: Four AA alkaline batteries and one 18650 rechargeable backup battery.
Batteries lifetime: 2 groups of batteries, Rechargeable battery, Alkaline Batteries: Approximate 1 Year battery life (depend on the usage of the lock)
Features of the Latch: Lock Latch length > 25mm, Comply with GA/T73-94 5.16B standard. Latch size: 25x30x15mm, it is even stronger!
Low battery indicator: Prompt indicator in low pressure and It will unlock automatically when no electricity(optional)
Urgent method: Mechanical damage to unlock(It has mounting hole on the lock for mechanical lock)
Working environment: -30~70℃ Humidity<90%
Working current (MAX): <500mA
Static current of battery: <95μA
Wireless remote distance: 10m (Depend on environment)
Z-Wave distance(to Z-Wave server): 30m indoor
Appearance size: Lock body 152x80x40(mm) Panel: 125x50x25(mm)
Voltage of entrance guard: DC 6V~30V
Voltage of urgent power supply: DC 5V~6.5V (Optional)
Capacity of remote: 25pcs Can expand
Capacity of password: 13 sets
capacity of card: 104pcs can expand
Z-Wave frequency: 868.4 MHz - China/Europe, 908.4 MHz - USA, 921.4 MHz – Australia/New Zealand, 869.2 MHz - Russia |
|---|
Brand | BENETEK |
|---|
Product Identifier | BSL01 |
|---|
OEM Version | HW: 33 FW: 1.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Door Lock - Keypad |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_LISTENING |
|---|
Manufacturer ID | 0x032D |
|---|
Product Type ID | 0x3002 |
|---|
Product ID | 0x0006 |
|---|
User Icon | 0x0300 |
|---|
Installer Icon | 0x0300 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Locks |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_DOOR_LOCK_V2 | Door Lock V2 | 0x62 | 2 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Door Lock Type | Value |
|---|
Deadbolt Motor Attachment |
| Battery Quantity | | Battery Type | | Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 1 | 0 | Association Group 2 is assigned to sending the Basic Set Off frame to associated device (e.g. another SHDL) while the SHDL is unlocked and sending the Basic Set On frame to associated device while the SHDL is locked with security transport if SHDL was added to network as security node or with non-security transport if SHDL was added to network as non-security node. | 4 | 1 | 0 | Association Group 4 is assigned to sending the Basic Set Off frame to associated devices with non-security transport while the SHDL is locked. | 3 | 1 | 0 | Association Group 3 is assigned to sending the Basic Set On frame to associated devices with non-security transport while the SHDL is unlocked. | 1 | 1 | 0 | Association Group 1 is assigned to sending SHDL lifeline status to associated devices, including send Door Lock Operation report frame while SHDL unlocked and locked, send Battery level report frame while battery
level is change. |
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1) Ensure the SHDL is powered and the battery is fully charged.
2) Set the main controller into the Remove device mode (see a main controller’s operating manual).
3) Triple click Z-Wave button on the Z-Wave module(inside lock body) within 1.5 seconds, the LED will flicker rapidly while exclusion process implement and light on 2 second after processing complete. | 5 | Factory Reset | Smart Hidden Door Lock restores factory default automatically when the device is excluded.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 1 | Inclusion | 1) Ensure the SHDL is powered and the battery is fully charged.
2) Set the main controller into the Add device mode (see a main controller’s operating manual).
3) Triple click Z-Wave button on the Z-Wave module(inside lock body) within 1.5 seconds, the LED will flicker rapidly while inclusion process implement and light on 2 second after processing complete. | 6 | Additional Special Features | BASIC command class maps to Door Lock Operation command class.
Due to SHDL only re-lock automatic while door close and detect by magnetic on the lock, so if Door Lock receives either a Door Lock Operation Set (secure the door) or a Basic Set (0xFF) the command is
rejected and always fail in Application Reject Command reply and follow with current door lock status report. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Is Flirs | Yes |
|---|
