Product Recognition

Certification Number

ZC10-16095225

Name

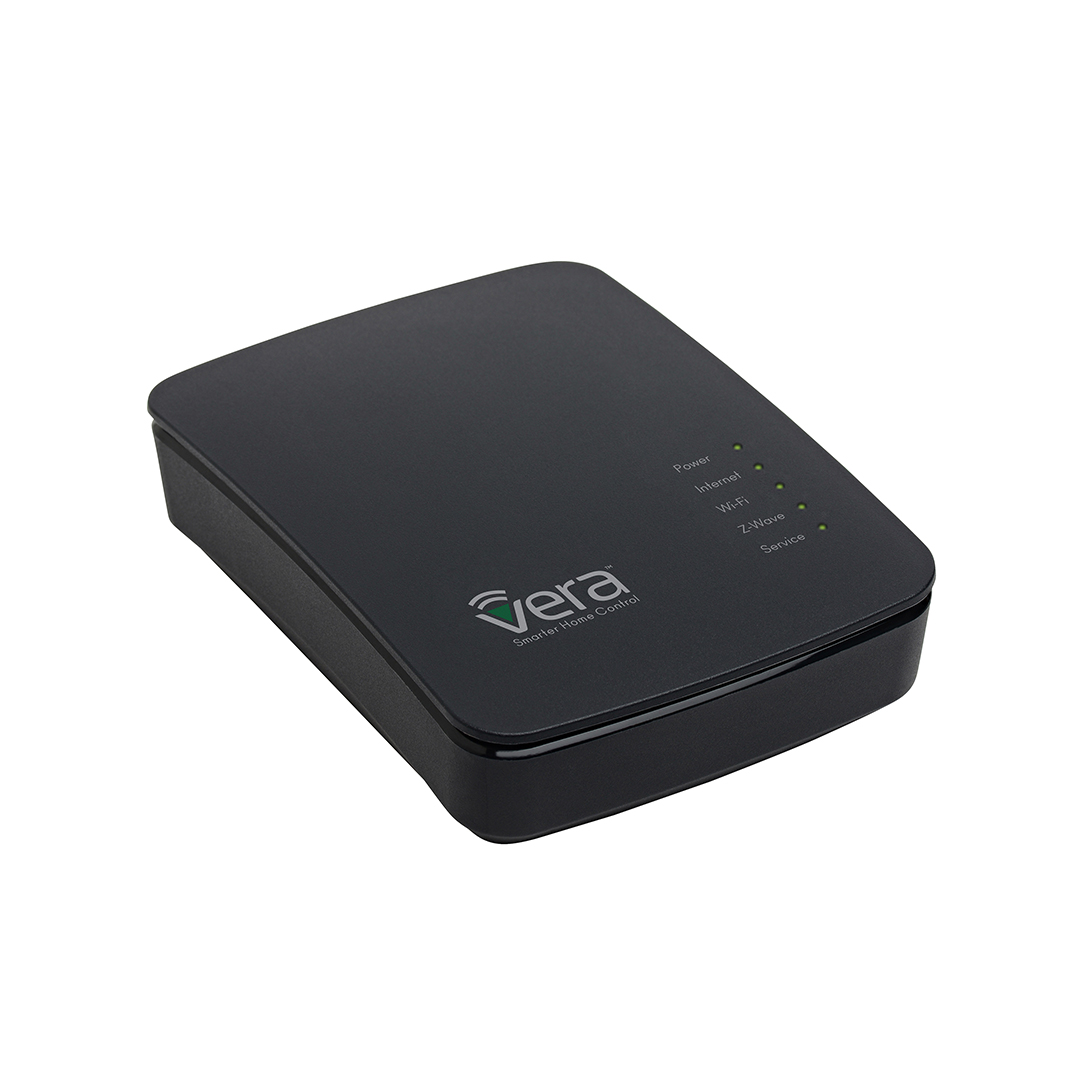

Smart Home Controller

Short Description

VeraEdge HomeController is a easy yet powerful one-app control for cameras, door locks, sensors, thermostats and other home automation and security devices you can view and control from anywhere. Create custom scenes and sequences. Use smartphone, tablet or computer for control and setup. Provides home/small business security, energy savings and peace of mind.

Long Description

VeraEdge: The Controller for Today's Expanding Smart Home Universe • One-touch control of your entire system • View all your cameras and control all your devices from one easy app • See and control your system from any smartphone or tablet from anywhere in the world (where there's Internet) • Save money on energy, automatically! • Expand your system to control over 220 devices (Z-Wave and Wi-Fi devices) • Wireless communications makes installation a breeze in any home or small business • Easy, intuitive setup with simple Q&A format; adding devices later is easy too with preconfigured settings for most devices • No monthly fees required! • Cutting edge features like geo fencing let the system know when you're coming home, automatically, when you leave, too! • One easy, intuitive app spans all platforms (Mac/Window/iOS/Android) to easily keep you in control at all times, wherever you go. • Controls all the leading brands of locks, thermostats, and other devices so you don't need to compromise when selecting components. • More device compatibility—faster processor allows greater compatibility with devices • More memory for better response times and flexibility • WPS easy push button pairing for Wi-Fi devices • Improved multi-camera management • Intuitive user set up and control • Local control of devices to avoid any latency or connectivity issues (works locally even when your Internet goes down) Use VeraEdge for convenience, to save energy, and achieve the peace of mind of knowing your family is safe and your home or small business is alright—from anywhere in the world!

Brand

Vera Control, Ltd.

Product Identifier

VeraEdge-EU

OEM Version

HW: 4 FW: 4.05:03.07

Hardware Platform

ZM5202

Z-Wave Version

6.51.06

Library Type

CONTROLLER_STATIC

Device Type

Gateway

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x008C

Product Type ID

0x0001

Product ID

0x0023

User Icon

0x05 0x00 (MSB LSB)

Installer Icon

0x05 0x00 (MSB LSB)

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

All Controllers, Gateway Controller

Countries / Regions

European Union

Controlled Command Classes

Identifier	Name	Key	Version
COMMAND_CLASS_SENSOR_BINARY	Sensor Binary	0x30	1
COMMAND_CLASS_COLOR_SWITCH	Color Switch V1	0x33	0
COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION	Association Group Information V1	0x59	0
COMMAND_CLASS_CLIMATE_CONTROL_SCHEDULE	Climate Control Schedule	0x46	1
COMMAND_CLASS_SENSOR_ALARM	Sensor Alarm	0x9C	1
COMMAND_CLASS_SENSOR_MULTILEVEL_V5	Sensor Multilevel V5	0x31	5
COMMAND_CLASS_NODE_NAMING	Node Naming	0x77	1
COMMAND_CLASS_THERMOSTAT_FAN_MODE	Thermostat Fan Mode	0x44	1
COMMAND_CLASS_USER_CODE	User Code	0x63	1
COMMAND_CLASS_DOOR_LOCK_V2	Door Lock V2	0x62	2
COMMAND_CLASS_ALARM_V2	Alarm V2	0x71	2
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3	Multi-Channel Association V3	0x8E	3
COMMAND_CLASS_CONTROLLER_REPLICATION	Controller Replication	0x21	1
COMMAND_CLASS_CLOCK	Clock	0x81	1
COMMAND_CLASS_BATTERY	Battery	0x80	1
COMMAND_CLASS_APPLICATION_STATUS	Application Status	0x22	1
COMMAND_CLASS_THERMOSTAT_OPERATING_STATE	Thermostat Operating State	0x42	1
COMMAND_CLASS_SWITCH_BINARY	Switch Binary	0x25	1
COMMAND_CLASS_BASIC	Basic	0x20	1
COMMAND_CLASS_HAIL	Hail	0x82	1
COMMAND_CLASS_CRC_16_ENCAP	CRC16 Encapsulation	0x56	1
COMMAND_CLASS_SECURITY	Security S0	0x98	1
COMMAND_CLASS_CENTRAL_SCENE	Central Scene	0x5B	1
COMMAND_CLASS_THERMOSTAT_MODE_V2	Thermostat Mode V2	0x40	2
COMMAND_CLASS_VERSION_V2	Version V2	0x86	2
COMMAND_CLASS_WAKE_UP_V2	Wake Up V2	0x84	2
COMMAND_CLASS_DEVICE_RESET_LOCALLY	Device Reset Locally	0x5A	1
COMMAND_CLASS_ZWAVEPLUS_INFO_V2	Z-Wave Plus Info V2	0x5E	2
COMMAND_CLASS_BARRIER_OPERATOR	Barrier Operator	0x66	1
COMMAND_CLASS_SWITCH_MULTILEVEL_V3	Switch Multilevel V3	0x26	3
COMMAND_CLASS_ASSOCIATION_V2	Association V2	0x85	2
COMMAND_CLASS_MULTI_CHANNEL_V4	Multi-Channel V4	0x60	4
COMMAND_CLASS_THERMOSTAT_SETPOINT	Thermostat Setpoint	0x43	1
COMMAND_CLASS_METER_TBL_MONITOR	Meter Table Monitor	0x3D	1
COMMAND_CLASS_MANUFACTURER_SPECIFIC	Manufacturer Specific	0x72	1
COMMAND_CLASS_METER_PULSE	Meter Pulse	0x35	1
COMMAND_CLASS_CONFIGURATION_V2	Configuration V2	0x70	2
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2	Firmware Update Meta-Data V2	0x7A	2
COMMAND_CLASS_METER_V2	Meter V2	0x32	2
COMMAND_CLASS_MULTI_CMD	Multi-Command	0x8F	1
COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3	Schedule Entry Lock V3	0x4E	3

Documents

Features

Association Groups

Texts

ID	Description	Value
24	Controller Exclusion	To exclude a Z-Wave product into the network, you can use the UI and follow the on- screen instructions that read as follows: Navigate to the device -> Select the delete device option -> Choose to un-pair and follow the instructions. [Attached images along with the manual]. For an installer who wishes to manually exclude a Z-Wave product from the network, hold the Sync button down for 3 seconds.
3	Learn Mode (adding another controller)	To include the controller into an existing Z-Wave network, use the UI and follow the steps below. Click on Settings -> Z-Wave Settings -> Advanced, select 'Copy Z-Wave network from a primary controller. This will shift the controller to have a secondary controller role and will receive data from the primary controller in the network.
5	Factory Reset	If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. To reset the controller, press the reset button for 20 seconds. This will reset it to factory default.
23	Controller Inclusion	To include a Z-Wave product into the network, you can use the UI and follow the on- screen instructions that read as follows: Select Add device -> Pick the device to be included in the network from the list -> Follow the steps for inclusion of the device -> Once the device is detected, save the name of the device and the device completes the configuration process. [Attached images along with the manual]. For an installer who wishes to carry out a manual setup of devices, tap the Sync button on the controller. To exit the inclusion mode on the controller, tap the Sync button again.

Supports NWI

Yes

Supports Explorer Frames

Yes
