Product Recognition
Certification Number	ZC10-16095226

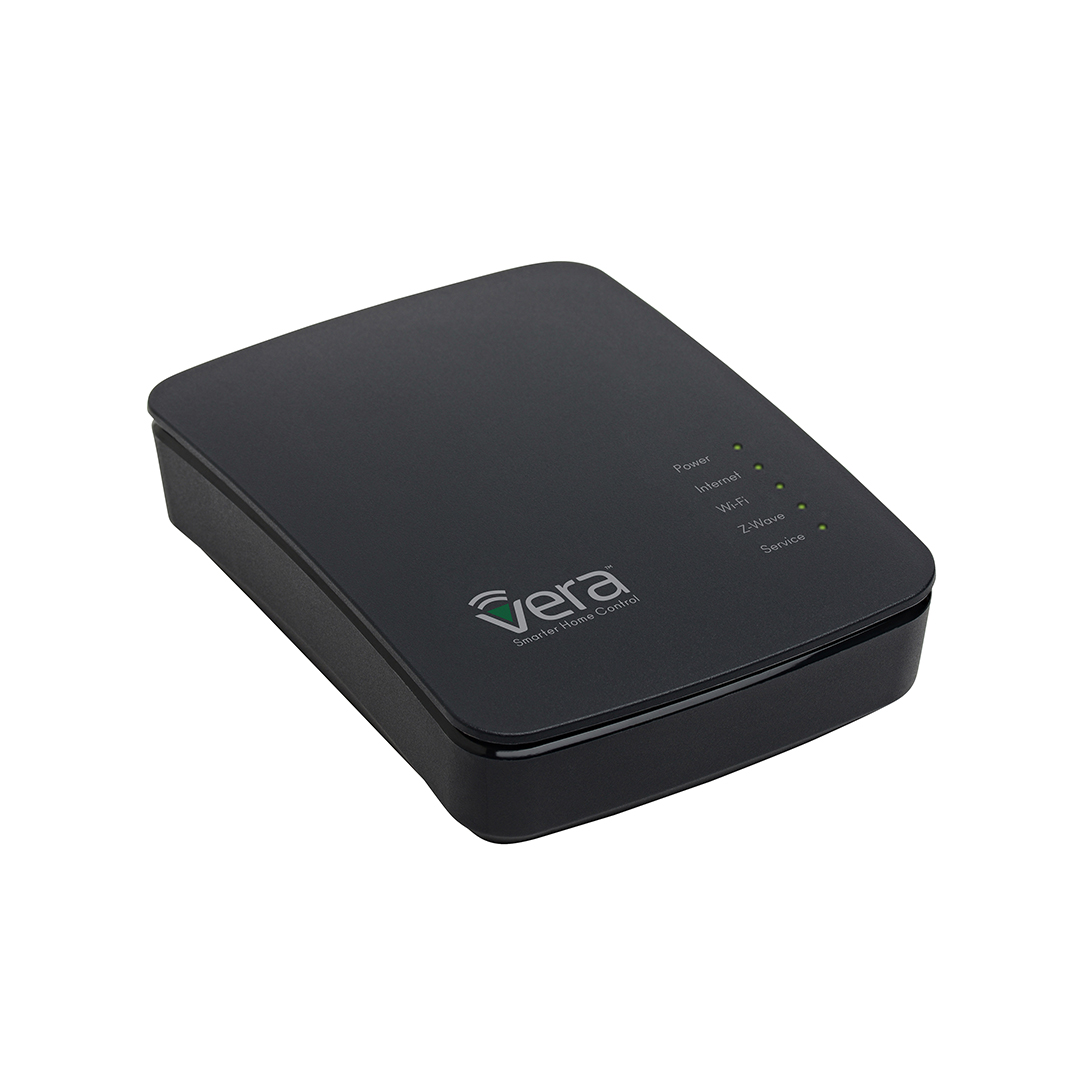

Name	Smart Home Controller
Short Description	VeraEdge HomeController is a easy yet powerful one-app control for cameras, door locks, sensors, thermostats and other home automation and security devices you can view and control from anywhere. Create custom scenes and sequences. Use smartphone, tablet or computer for control and setup.
Long Description	VeraEdge: The Controller for Today's Expanding Smart Home Universe • One-touch control of your entire system • View all your cameras and control all your devices from one easy app • See and control your system from any smartphone or tablet from anywhere in the world (where there's Internet) • Save money on energy, automatically! • Expand your system to control over 220 devices (Z-Wave and Wi-Fi devices) • Wireless communications makes installation a breeze in any home or small business • Easy, intuitive setup with simple Q&A format; adding devices later is easy too with preconfigured settings for most devices • No monthly fees required! • Cutting edge features like geo fencing let the system know when you're coming home, automatically, when you leave, too! • One easy, intuitive app spans all platforms (Mac/Window/iOS/Android) to easily keep you in control at all times, wherever you go. • Controls all the leading brands of locks, thermostats, and other devices so you don't need to compromise when selecting components. • More device compatibility—faster processor allows greater compatibility with devices • More memory for better response times and flexibility • WPS easy push button pairing for Wi-Fi devices • Improved multi-camera management • Intuitive user set up and control • Local control of devices to avoid any latency or connectivity issues (works locally even when your Internet goes down) Use VeraEdge for convenience, to save energy, and achieve the peace of mind of knowing your family is safe and your home or small business is alright—from anywhere in the world!
Brand	Vera Control, Ltd.
Product Identifier	VeraEdge-US
OEM Version	HW: 4 FW: 4.05.03.07
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	CONTROLLER_STATIC
Device Type	Gateway
Role Type	ROLE_TYPE_CONTROLLER_CENTRAL_STATIC
Manufacturer ID	0x008C
Product Type ID	0x0001
Product ID	0x0023
User Icon	0x05 0x00 (MSB LSB)
Installer Icon	0x05 0x00 (MSB LSB)
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Gateway Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_COLOR_SWITCH Color Switch V1 0x33 0 COMMAND_CLASS_ASSOCIATION_GROUP_INFORMATION Association Group Information V1 0x59 0 COMMAND_CLASS_CLIMATE_CONTROL_SCHEDULE Climate Control Schedule 0x46 1 COMMAND_CLASS_SENSOR_ALARM Sensor Alarm 0x9C 1 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_NODE_NAMING Node Naming 0x77 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_USER_CODE User Code 0x63 1 COMMAND_CLASS_DOOR_LOCK_V2 Door Lock V2 0x62 2 COMMAND_CLASS_ALARM_V2 Alarm V2 0x71 2 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_CONTROLLER_REPLICATION Controller Replication 0x21 1 COMMAND_CLASS_CLOCK Clock 0x81 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_APPLICATION_STATUS Application Status 0x22 1 COMMAND_CLASS_THERMOSTAT_OPERATING_STATE Thermostat Operating State 0x42 1 COMMAND_CLASS_SWITCH_BINARY Switch Binary 0x25 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_HAIL Hail 0x82 1 COMMAND_CLASS_CRC_16_ENCAP CRC16 Encapsulation 0x56 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_CENTRAL_SCENE Central Scene 0x5B 1 COMMAND_CLASS_THERMOSTAT_MODE_V2 Thermostat Mode V2 0x40 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_BARRIER_OPERATOR Barrier Operator 0x66 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V3 Switch Multilevel V3 0x26 3 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_MULTI_CHANNEL_V4 Multi-Channel V4 0x60 4 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_METER_TBL_MONITOR Meter Table Monitor 0x3D 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC Manufacturer Specific 0x72 1 COMMAND_CLASS_METER_PULSE Meter Pulse 0x35 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_METER_V2 Meter V2 0x32 2 COMMAND_CLASS_MULTI_CMD Multi-Command 0x8F 1 COMMAND_CLASS_SCHEDULE_ENTRY_LOCK_V3 Schedule Entry Lock V3 0x4E 3
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Z-Wave_Overview and_QSG.pdf
Features	Feature Values Communications Protocol Value Z-Wave Serial API Firmware Updatable Value Updatable by Manufacturer Color Value Black Communications Connections Value Ethernet (Wired) Ethernet (Wireless/WiFi) USB (Universal Serial Bus)
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 23 Controller Inclusion To include a Z-Wave product into the network, you can use the UI and follow the on- screen instructions that read as follows: Select Add device -> Pick the device to be included in the network from the list -> Follow the steps for inclusion of the device -> Once the device is detected, save the name of the device and the device completes the configuration process. [Attached images along with the manual]. For an installer who wishes to carry out a manual setup of devices, tap the Sync button on the controller. To exit the inclusion mode on the controller, tap the Sync button again. 24 Controller Exclusion To exclude a Z-Wave product into the network, you can use the UI and follow the on- screen instructions that read as follows: Navigate to the device -> Select the delete device option -> Choose to un-pair and follow the instructions. [Attached images along with the manual]. For an installer who wishes to manually exclude a Z-Wave product from the network, hold the Sync button down for 3 seconds. 5 Factory Reset If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. To reset the controller, press the reset button for 20 seconds. This will reset it to factory default. 3 Learn Mode (adding another controller) To include the controller into an existing Z-Wave network, use the UI and follow the steps below. Click on Settings -> Z-Wave Settings -> Advanced, select 'Copy Z-Wave network from a primary controller. This will shift the controller to have a secondary controller role and will receive data from the primary controller in the network.
Supports NWI	Yes
Supports Explorer Frames	Yes
