Product Recognition | |
|---|
Certification Number | ZC10-19056481 |
|---|

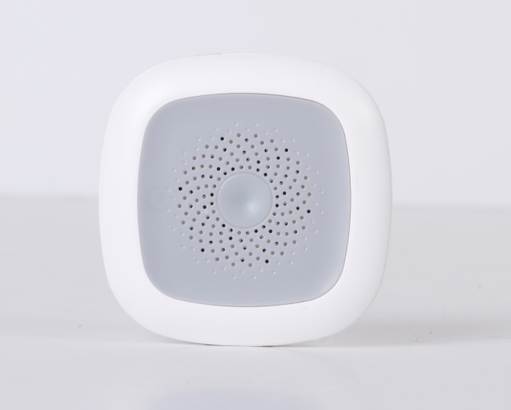

Name | Smart Humidity And Temperature Sensor |
|---|
Short Description | This Smart Humidity And Temperature Sensor could sense air humidity and temperature and send these information to user APP. |
|---|
Long Description | This Smart Humidity And Temperature Sensor could sense air humidity and temperature and send these information to user APP. It has mini stylish design,high sensitivity and long lifespan, could be used in residential buildings, warehouses, hotels and etc. |
|---|
Brand | CLEVERIO |
|---|
Product Identifier | 51112 |
|---|
OEM Version | HW: 255 FW: 3.01 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x041C |
|---|
Product Type ID | 0x8007 |
|---|
Product ID | 0x1000 |
|---|
User Icon | 0x0DFF |
|---|
Installer Icon | 0x0DFF |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SENSOR_MULTILEVEL_V10 | Sensor Multilevel V10 | 0x31 | 10 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Type | | Color | | Sensors | Value |
|---|
Air Temperature | Humidity |
| Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | - Lifeline between controller and the product
- Supported command classes:
Battery Report, Multilevel Sensor Report, and Device Reset Locally notification.
- Association Group description
▶Association group 1: Lifeline association group
Maximum supported node is 5
Include command classes: Battery report, multilevel sensor report, and Device Reset Locally
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second.
- If Inclusion Process is successful, Green LED will turn off. | 2 | Exclusion | - Press the Net_Button 3 times within 1.5s.
- If Exclusion Process is successful, Green LED is Blinking 6 times, then turn off. | 5 | Factory Reset | - Long press Net_Button at least 10 seconds in the product.
- Device Reset Locally notification is Transmitted.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
