Product Recognition

Certification Number

ZC10-21057034

Name

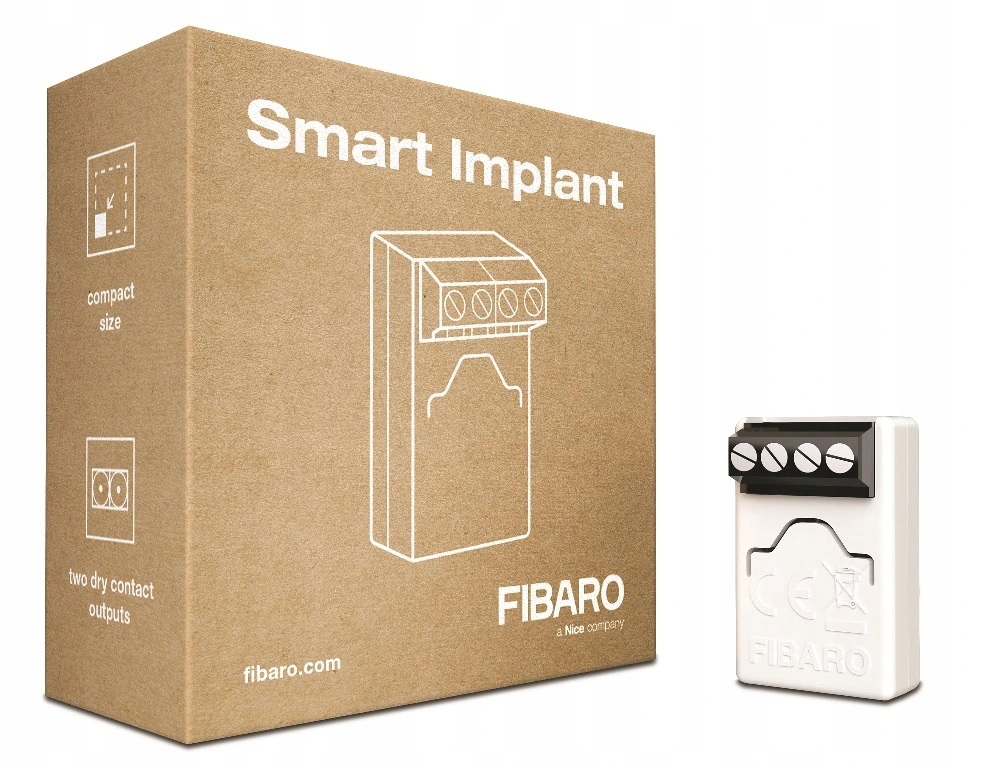

Smart Implant

Short Description

Long Description

FIBARO Smart Implant allows to enhance the functionality of wired sensors and other devices by adding Z-Wave network communication. You can connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to the Z-Wave controller. It can also control devices by opening/closing output contacts independently of the inputs. Main features: - Allows for connecting sensors: - 6 DS18B20 sensors, - 1 DHT sensor, - 2 2-wire analog sensor, - 2 3-wire analog sensor, - 2 binary sensors. - Built-in temperature sensor. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as a Z-Wave signal repeater. - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

Brand

Fibar Group S.A.

Product Identifier

FGBS-222

OEM Version

HW: 2 FW: 5.02

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x0502

Product ID

0x6000

User Icon

0x0C00

Installer Icon

0x0C00

Frequency Plans

IN: 865.20MHz

Categories

Sensors, All Lighting Devices, On/Off Switches/Devices, Security Systems

Countries / Regions

India

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Inputs orientation

This parameter allows reversing operation of IN1 and IN2 inputs without changing the wiring. Use in case of incorrect wiring.

From	To	Description
0	0	default (IN1 - 1st input, IN2 - 2nd input)
1	1	reversed (IN1 - 2nd input, IN2 - 1st input)

Outputs orientation

This parameter allows reversing operation of OUT1 and OUT2 inputs without changing the wiring. Use in case of incorrect wiri ng.

From	To	Description
0	0	default (OUT1 - 1st output, OUT2 - 2nd output)
1	1	reversed (OUT1 - 2nd output, OUT2 - 1st output)

Input 1 - value sent to 2nd association group when activated

This parameter defines value sent to devices in 2nd association group when IN1 input is triggered (using Basic Command Class). Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

255

From	To	Description
0	255	value sent to devices in 2nd association group when IN1 input is triggered

Input 1 - value sent to 2nd association group when deactivated

This parameter defines value sent to devices in 2nd association group when IN1 input is deactivated (using Basic Command Class). Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

255

From	To	Description
0	255	value sent to devices in 2nd association group when IN1 input is deactivated

Input 2 - value sent to 3rd association group when activated

This parameter defines value sent to devices in 3rd association group when IN2 input is triggered (using Basic Command Class). Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

255

From	To	Description
0	255	value sent to devices in 3rd association group when IN2 input is triggered

Input 2 - value sent to 3rd association group when deactivated

This parameter defines value sent to devices in 3rd association group when IN2 input is deactivated (using Basic Command Class). Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

255

From	To	Description
0	255	value sent to devices in 3rd association group when IN2 input is deactivated

Analog inputs - minimal change to report

This parameter defines minimal change (from the last reported) of analog input value that results in sending new report. Parameter is relevant only for analog inputs (parameter 20 or 21 set to 4 or 5). Setting too high value may result in no reports being sent.

100

From	To	Description
0	0	reporting on change disabled
1	100	0.1 - 10 V, 0.1 V step

Analog inputs - periodical reports

This parameter defines reporting period of analog inputs value. Periodical reports are independent from changes in value (parameter 63). Parameter is relevant only for analog inputs (parameter 20 or 21 set to 4 or 5).

32400

From	To	Description
0	0	periodical reports disabled
60	32400	60 s - 9 h

Internal temperature sensor - minimal change to report

This parameter defines minimal change (from the last reported) of internal temperature sensor value that results in sending new report.

255

From	To	Description
0	0	reporting on change disabled
1	255	0.1 - 25.5°C

Internal temperature sensor - periodical reports

This parameter defines reporting period of internal temperature sensor value. Periodical reports are independent from changes in value (parameter 65).

32400

From	To	Description
0	0	periodical reports disabled
60	32400	60 s - 9 h

External sensors - minimal change to report

This parameter defines minimal change (from the last reported) of external sensors values (DS18B20 or DHT22) that results in sending new report. Parameter is relevant only for connected DS18B20 or DHT22 sensors.

255

From	To	Description
0	0	reporting on change disabled
1	255	0.1 - 25.5 units, 0.1

External sensors - periodical reports

This parameter defines reporting period of analog inputs value. Periodical reports are independent from changes in value (parameter 67). Parameter is relevant only for connected DS18B20 or DHT22 sensors.

32400

From	To	Description
0	0	periodical reports disabled
60	32400	60 s - 9 h

150

Input 1 - sensitivity

This parameter defines the inertia time of IN1 input in alarm modes. Adjust this parameter to prevent bouncing or signal disruptions. Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

100

From	To	Description
1	100	(10 ms - 1000 ms)

151

Input 2 - sensitivity

This parameter defines the inertia time of IN2 input in alarm modes. Adjust this parameter to prevent bouncing or signal disruptions. Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

100

From	To	Description
1	100	(10 ms - 1000 ms)

152

Input 1 - delay of alarm cancellation

This parameter defines additional delay of cancelling the alarm on IN1 input. Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

3600

From	To	Description
0	0	no delay
1	3600	1 - 3600 s

153

Input 2 - delay of alarm cancellation

This parameter defines additional delay of cancelling the alarm on IN2 input. Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

3600

From	To	Description
0	0	no delay
1	3600	1 - 3600 s

154

Output 1 - logic of operation

This parameter defines logic of OUT1 output operation.

From	To	Description
0	0	contacts normally open / closed when active
1	1	contacts normally closed / open when active

155

Output 2 - logic of operation

This parameter defines logic of OUT2 output operation.

From	To	Description
0	0	contacts normally open / closed when active
1	1	contacts normally closed / open when active

156

Output 1 - auto off

This parameter defines time after which OUT1 will be automatically deactivated.

27000

From	To	Description
0	0	auto off disabled
1	27000	0.1 s - 45 min, 0.1 s step

157

Output 2 - auto off

This parameter defines time after which OUT2 will be automatically deactivated.

27000

From	To	Description
0	0	auto off disabled
1	27000	0.1 s - 45 min, 0.1 s step

Texts

ID	Description	Value
8	Where to find S2 DSK on product	If you are adding in Security S2 Authenticated, scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box).
1	Classic Inclusion	To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
2	Classic Exclusion	Removing (Exclusion) – Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. Removing also results in resetting the device to factory defaults. To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message.
5	Factory Reset Procedure	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described. 1. Press and hold the button to enter the menu. 2. Release button when the device glows yellow. 3. Quickly click the button to confirm. 4. After few seconds the device will be restarted, which is signalled with the red colour.

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
