Product Recognition

Certification Number

ZC10-20036877

Name

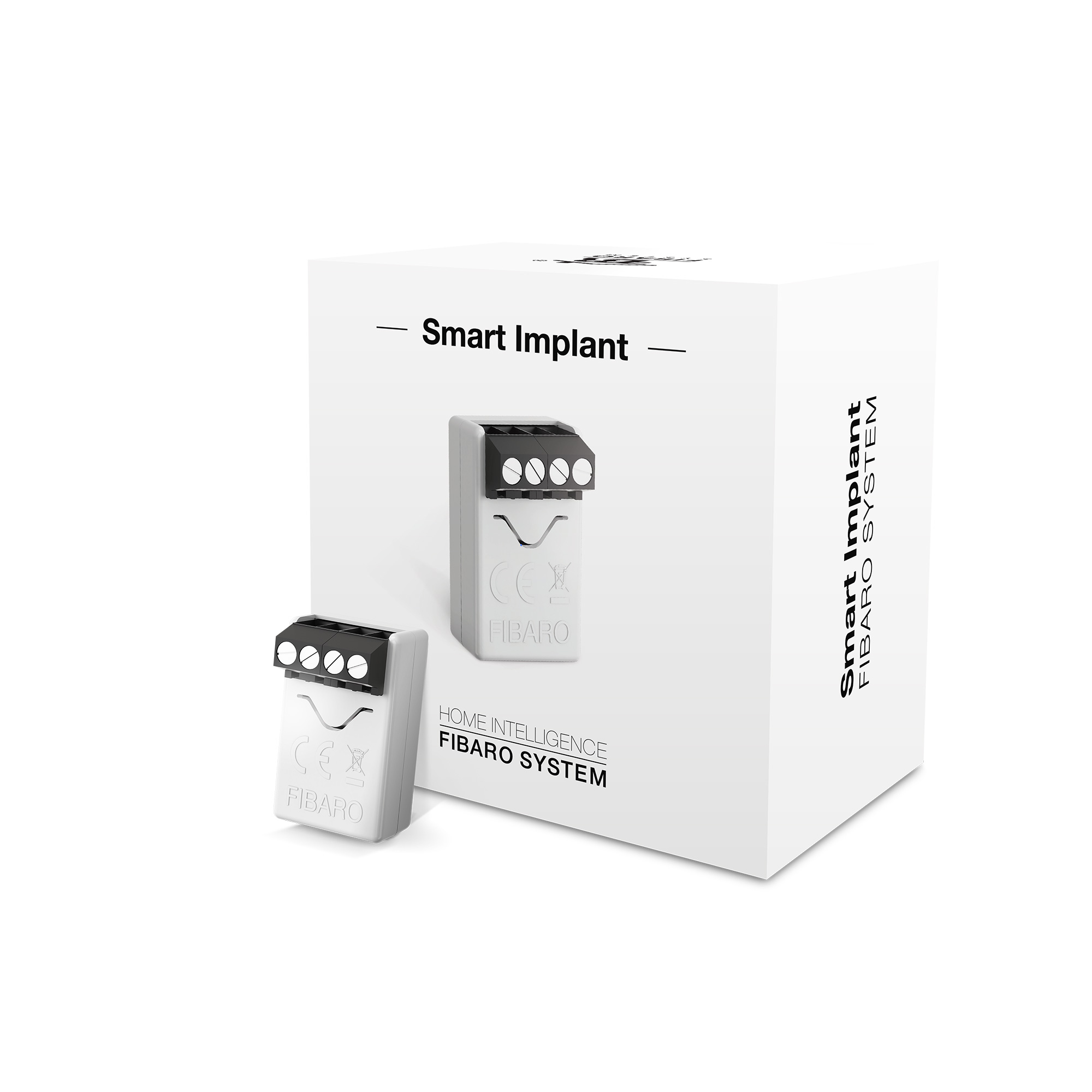

Smart Implant

Short Description

FIBARO Smart Implant allows to enhance the functionality of wired sensors and other devices by adding Z-Wave network communication.

Long Description

FIBARO Smart Implant allows to enhance the functionality of wired sensors and other devices by adding Z-Wave network communication. You can connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to the Z-Wave controller. It can also control devices by opening/closing output contacts independently of the inputs. Main features of FIBARO Smart Implant: - Compatible with any Z-Wave or Z-Wave Plus Controller, - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption, - Allows for connecting sensors: o 6 DS18B20 sensors, o 1 DHT sensor, o 2 2-wire analog sensor, o 2 3-wire analog sensor, o 2 binary sensors. - Works as a Z-Wave signal repeater, - Built-in temperature sensor.

Brand

FIBARO

Product Identifier

FGBS-222

Product Line

FIBARO Smart Implant

OEM Version

HW: 2 FW: 5.01

Hardware Platform

ZM5101

Z-Wave Version

6.81.01

Library Type

SLAVE_ENHANCED_232

Device Type

Notification Sensor

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x0502

Product ID

0x8000

User Icon

0x0C00

Installer Icon

0x0C00

Frequency Plans

CN: 868.40MHz

Categories

Sensors

Countries / Regions

China

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Outputs orientation

This parameter allows reversing operation of OUT1 and OUT2 inputs without changing the wiring. Use in case of incorrect wiri ng.

From	To	Description
1	1	reversed (OUT1 - 2nd output, OUT2 - 1st output)
0	0	default (OUT1 - 1st output, OUT2 - 2nd output)

Input 2 - sent scenes

This parameter defines which actions result in sending scene ID and attribute assigned to them (see 9: Activating scenes). Parameter is relevant only if parameter 20 is set to 2 or 3.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 time
4	4	Key pressed 3 time
8	8	Key hold down and key released

Input 1 - value sent to 2nd association group when deactivated

This parameter defines value sent to devices in 2nd association group when IN1 input is deactivated (using Basic Command Class).

255

From	To	Description
0	255	value send to devices

Input 2 - value sent to 3rd association group when activated

This parameter defines value sent to devices in 3rd association group when IN2 input is triggered (using Basic Command Class).

255

From	To	Description
0	255	value send to devices

Input 2 - value sent to 3rd association group when deactivated

This parameter defines value sent to devices in 2nd association group when IN2 input is deactivated (using Basic Command Class).

255

From	To	Description
0	255	value send to devices

Analog inputs - periodical reports

This parameter defines reporting period of analog inputs value. Periodical reports are independent from changes in value (parameter 63). Parameter is relevant only for analog inputs (parameter 20 or 21 set to 4 or 5).

32400

From	To	Description
60	32400	(60s-9h)
0	0	periodical reports disabled

Internal temperature sensor - minimal change to report

This parameter defines minimal change (from the last reported) of internal temperature sensor value that results in sending new report.

255

From	To	Description
1	255	(0.1-25.5°C)
0	0	reporting on change disabled

Internal temperature sensor - periodical reports

This parameter defines reporting period of internal temperature sensor value. Periodical reports are independent from changes in value (parameter 65).

32400

From	To	Description
60	32400	(60s-9h)
0	0	periodical reports disabled

External sensors - minimal change to report

This parameter defines minimal change (from the last reported) of external sensors values (DS18B20 or DHT22) that results in sending new report. Parameter is relevant only for connected DS18B20 or DHT22 sensors.

255

From	To	Description
1	255	(0.1-25.5 units, 0.1)
0	0	reporting on change disabled

External sensors - periodical reports

This parameter defines reporting period of analog inputs value. Periodical reports are independent from changes in value (parameter 67). Parameter is relevant only for connected DS18B20 or DHT22 sensors.

32400

From	To	Description
60	32400	(60s-9h)
0	0	periodical reports disabled

150

Input 1 - sensitivity

This parameter defines the inertia time of IN1 input in alarm modes. Adjust this parameter to prevent bouncing or signal disruptions.Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

100

From	To	Description
1	100	(10ms-1000ms, 10ms step)

151

Input 2 - sensitivity

This parameter defines the inertia time of IN2 input in alarm modes. Adjust this parameter to prevent bouncing or signal disruptions. Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

100

From	To	Description
1	100	(10ms-1000ms, 10ms step)

152

Input 1 - delay of alarm cancellation

This parameter defines additional delay of cancelling the alarm on IN1 input. Parameter is relevant only if parameter 20 is set to 0 or 1 (alarm mode).

3600

From	To	Description
1	3600	(in seconds)
0	0	no delay

153

Input 2 - delay of alarm cancellation

This parameter defines additional delay of cancelling the alarm on IN2 input. Parameter is relevant only if parameter 21 is set to 0 or 1 (alarm mode).

3600

From	To	Description
1	3600	(in seconds)
0	0	no delay

154

Output 1 - logic of operation

This parameter defines logic of OUT1 output operation.

From	To	Description
1	1	contacts normally closed / open when active
0	0	contacts normally open / closed when active

155

Output 2 - logic of operation

This parameter defines logic of OUT2 output operation.

From	To	Description
1	1	contacts normally closed / open when active
0	0	contacts normally open / closed when active

156

Output 1 - auto off

This parameter defines time after which OUT1 will be automatically deactivated.

27000

From	To	Description
1	27000	(0.1s-45min, 0.1s step)
0	0	auto off disabled

157

Output 2 - auto off

This parameter defines time after which OUT2 will be automatically deactivated.

27000

From	To	Description
1	27000	(0.1s-45min, 0.1s step)
0	0	auto off disabled

Inputs orientation

This parameter allows reversing operation of IN1 and IN2 inputs without changing the wiring. Use in case of incorrect wiring.

From	To	Description
1	1	reversed (IN1 - 2nd input, IN2 - 1st input)
0	0	default (IN1 - 1st input, IN2 - 2nd input)

Input 1 - value sent to 2nd association group when activated

This parameter defines value sent to devices in 2nd association group when IN1 input is triggered (using Basic Command Class).

255

From	To	Description
0	255	Value send to devices

Analog inputs - minimal change to report

This parameter defines minimal change (from the last reported) of analog input value that results in sending new report. Parameter is relevant only for analog inputs (parameter 20 or 21 set to 4 or 5).

100

From	To	Description
1	100	(0.1-10V, 0.1V step)
0	0	reporting on change disabled

Texts

ID	Description	Value
4	Device Wake-Up	FIBARO Smart Implant is powered using DC power supply unit so it is always awake.
8	Where to find S2 DSK on product	page 15 chapter 5.2 Scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box).
2	Classic Exclusion	To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message.
5	Factory Reset Procedure	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use this procedure only when the network primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described. 1. Press and hold the button to enter the menu. 2. Release button when the device glows yellow. 3. Quickly click the button to confirm. 4. After few seconds the device will be restarted, which is signalled with the red colour.
1	Classic Inclusion	To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, triple click button on the device housing or switch connected to IN1 or IN2. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message. To add the device to the Z-Wave network using Smart Start: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the 5-digit PIN code (label on the bottom of the box). 3. Power the device. 4. LED will start blinking yellow, wait for the adding process to end. 5. Successful adding will be confirmed by the Z-Wave controller’s message.

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
