Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Light Mode | Sets bottom LED operation (in normal mode) | 2 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
0 | 1 | 0 = all LED ON if load is OFF 1 = all LED OFF if load is OFF |
| 4 | Invert Buttons | Sets paddle’s load orientation | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | 0 = Top of Paddle turns load ON 1 = Bottom of Paddle turns load ON |
| 6 | Enables/Disables Central Scene and multiple tap functions | 0 = Central Scene Enabled, controls load with delay. Enables Multi-tap and press and hold 1 = Central Scene Disabled, controls load instantly. Disables multi-tap, central scene, press and hold | 2 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 1 | 0 = Central Scene Enabled, controls load with delay. Enables Multi-tap and press and hold 1 = Central Scene Disabled, controls load instantly. Disables multi-tap, central scene, press and hold |
| 11 | Set dimmer Ramp rate for remote control | Possible values: 0-90 0=No delay (instant ON), 1=1 second | 2 | 1 | 0 | 90 | 3 | From | To | Description |
|---|
0 | 90 | Possible values: 0-90 0=No delay (instant ON), 1=1 second |
| 23 | Sets the Status mode LED 3 color | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White | 2 | 1 | 0 | 7 | 0 | From | To | Description |
|---|
0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
| 24 | Sets the Status mode LED 4 color | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White | 2 | 1 | 0 | 7 | 0 | From | To | Description |
|---|
0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
| 25 | Sets the Status mode LED 5 color | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White | 2 | 1 | 0 | 7 | 0 | From | To | Description |
|---|
0 | 7 | Possible values: 0-7 0=Off, 1=Red, 2=Green, 3=Blue, 4=Magenta, 5=Yellow, 6=Cyan, 7=White |
| 31 | Enable LED Blink | Sets LED(s) 1-7 to Blink in Status mode Bitmask defines specific LEDs to enable for blinking: Note: this decimal value is derived from a hex code calculation based on the following: Bit 0 = led 1, Bit 1 = led 2, Bit 2 = led 3, Bit 3 = led 4, Bit 4 = led 5, Bit 5 = led 6, Bit 6 = led 7 IE: value of 1 = first LED, 64 = led 7 | 2 | 1 | 0 | 127 | 0 | From | To | Description |
|---|
0 | 127 | Bitmask defines specific LEDs to enable for blinking: Note: this decimal value is derived from a hex code calculation based on the following: Bit 0 = led 1, Bit 1 = led 2, Bit 2 = led 3, Bit 3 = led 4, Bit 4 = led 5, Bit 5 = led 6, Bit 6 = led 7 IE: value of 1 = first LED, 64 = led 7 |
|
|

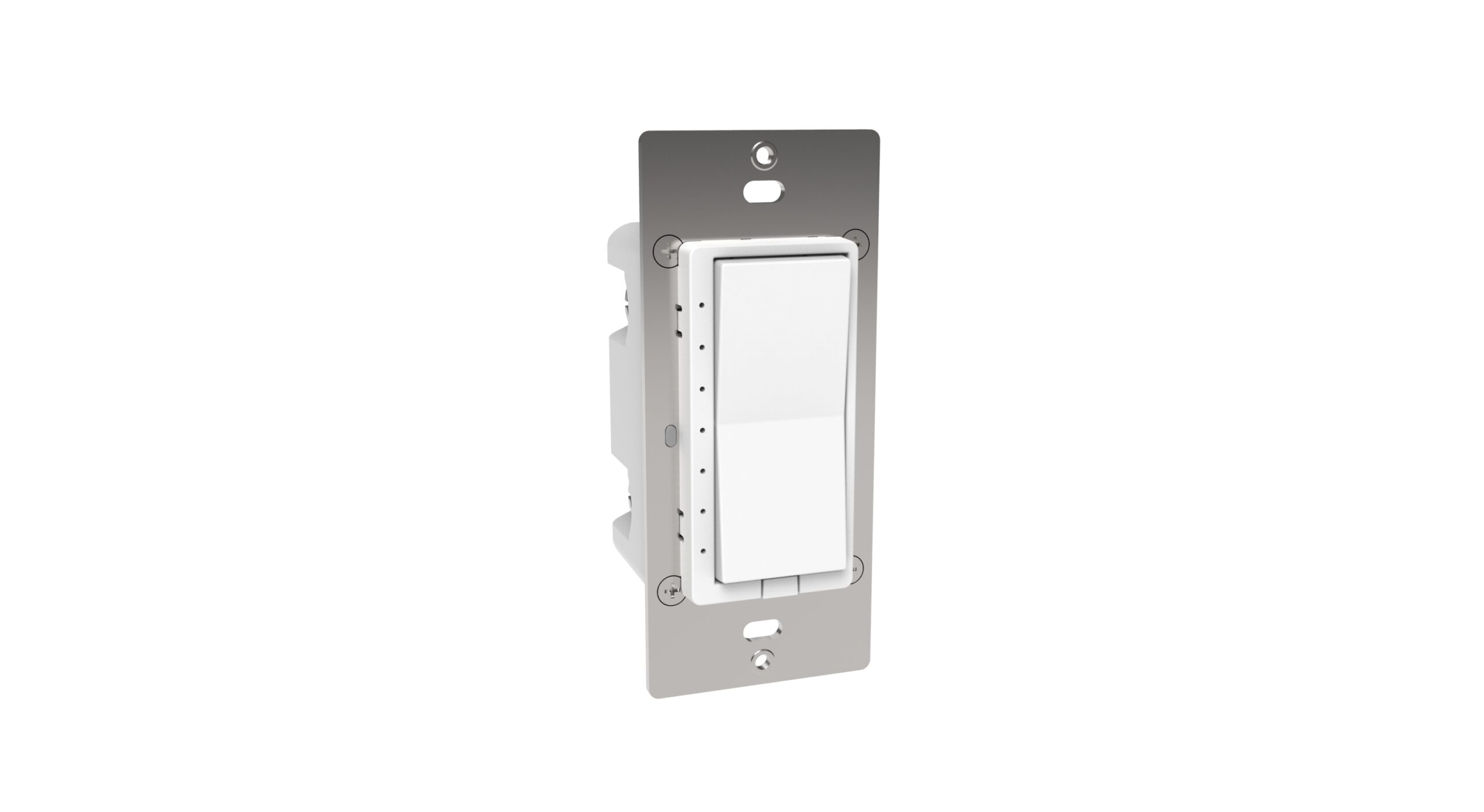

|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | *QR Code is located on the HS-WX300 metal yoke under the switch paddle. | 5 | Factory Reset Procedure | To be used only in the event that the network primary controller is lost or otherwise inoperable.
1. In rapid succession, tap the top paddle 3 times, then tap the bottom paddle 3 times. If all LEDs flash white 5 times, factory reset was successful. If not, repeat this procedure.
Note: As this must be done very quickly, we recommend using 2 fingers for this operation; one on each paddle!
Note: The switch will default to 3-wire mode and dimmer mode after factory reset. | 6 | Other Special Features | Changing Wire Mode
HS-WX300 may be installed with a neutral wire (3-wire mode) or without a neutral wire (2-wire mode). Selecting the correct wire mode will yield the best results, especially if the switch is configured as a dimmer. By default, 3-wire mode is enabled. To change the wire mode (at the switch):
1. Turn the power off
2. In rapid succession, tap the top paddle 2 times, then press & hold the top paddle for 3 seconds (tap-tap-press & hold)
3. Observe the behavior of the LEDs
- If the bottom 3 LEDs flash white 3 times, HS-WX300 is configured for 3-wire mode
- If the bottom 2 LEDs flash white 2 times, HS-WX300 is configured for 2-wire mode
Note: Wire mode may also be changed by the hub using Z-Wave parameter 32. See the Z-Wave Parameters section at the end of this user guide. | 2 | Classic Exclusion | Follow this 2-step procedure to add (or remove) your new HomeSeer switch to (or from) your Z-Wave network:
1. Put your Z-Wave controller into inclusion (or exclusion) mode. Consult your controller’s manual if you’re unsure how to do this.
2. In rapid succession, tap the bottom paddle 2 times, then press & hold the bottom paddle for 3 seconds (tap-tap-press & hold). This will initiate the inclusion (or exclusion) process. Note: The switch will default to dimmer mode after Z-Wave exclusion | 1 | Classic Inclusion | Follow this 2-step procedure to add (or remove) your new HomeSeer switch to (or from) your Z-Wave network:
1. Put your Z-Wave controller into inclusion (or exclusion) mode. Consult your controller’s manual if you’re unsure how to do this.
2. In rapid succession, tap the bottom paddle 2 times, then press & hold the bottom paddle for 3 seconds (tap-tap-press & hold). This will initiate the inclusion (or exclusion) process. Note: The switch will default to dimmer mode after Z-Wave exclusion | 17 | Dynamic Capabilities | Changing Switch Mode
(Must be done BEFORE Z-Wave inclusion)
HS-WX300 may be configured to operate as an ON-OFF switch or as a DIMMER. By default, it will operate as a dimmer. To change the switch mode, follow these steps:

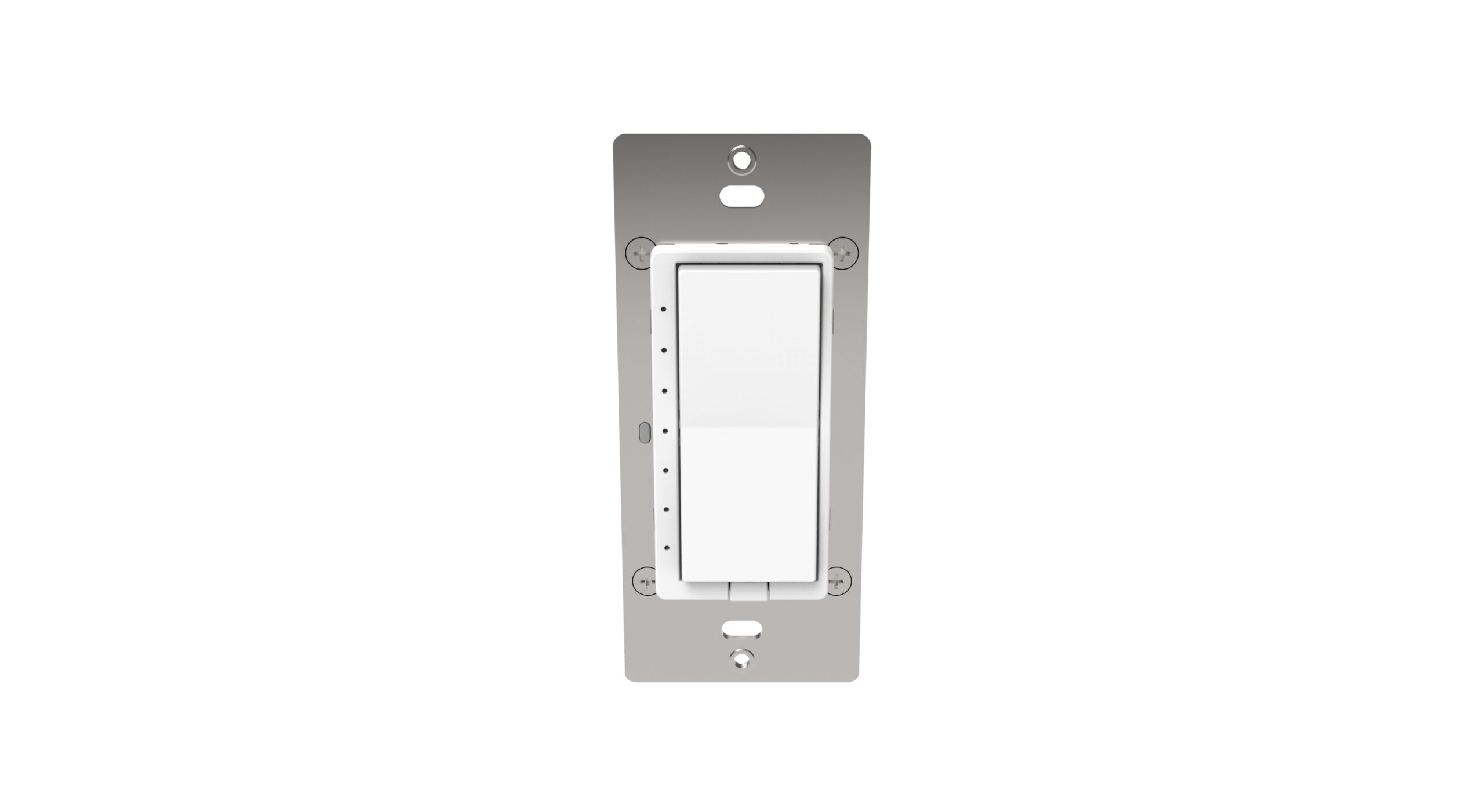

1. Press & hold the small button located on the metal yoke next to the column of LEDs, OR if the trim plate is already installed, in rapid succession, tap the top paddle 3 times, then press & hold the top paddle for 3 seconds (tap-tap-tap-press & hold)
2. Observe the behavior of the LEDs
- If all LEDs blink green 3 times, HS-WX300 is configured to function as a dimmer
- If the bottom LED blinks blue 3 times, HS-WX300 is configured to function as an on-off switch |
|
|---|
